7.3.2 DASHBOARD (DATA TAB)
The Data Tab displays additional detailed data including technical details for PV, battery, grid,
and loads, that is helpful for analysis and maintenance.
Five categories make up the Data Tab view: "Chart", "Energy", "Data History", "Local data",
and "Event History." For more details on each category, please see the following tables.
Chart

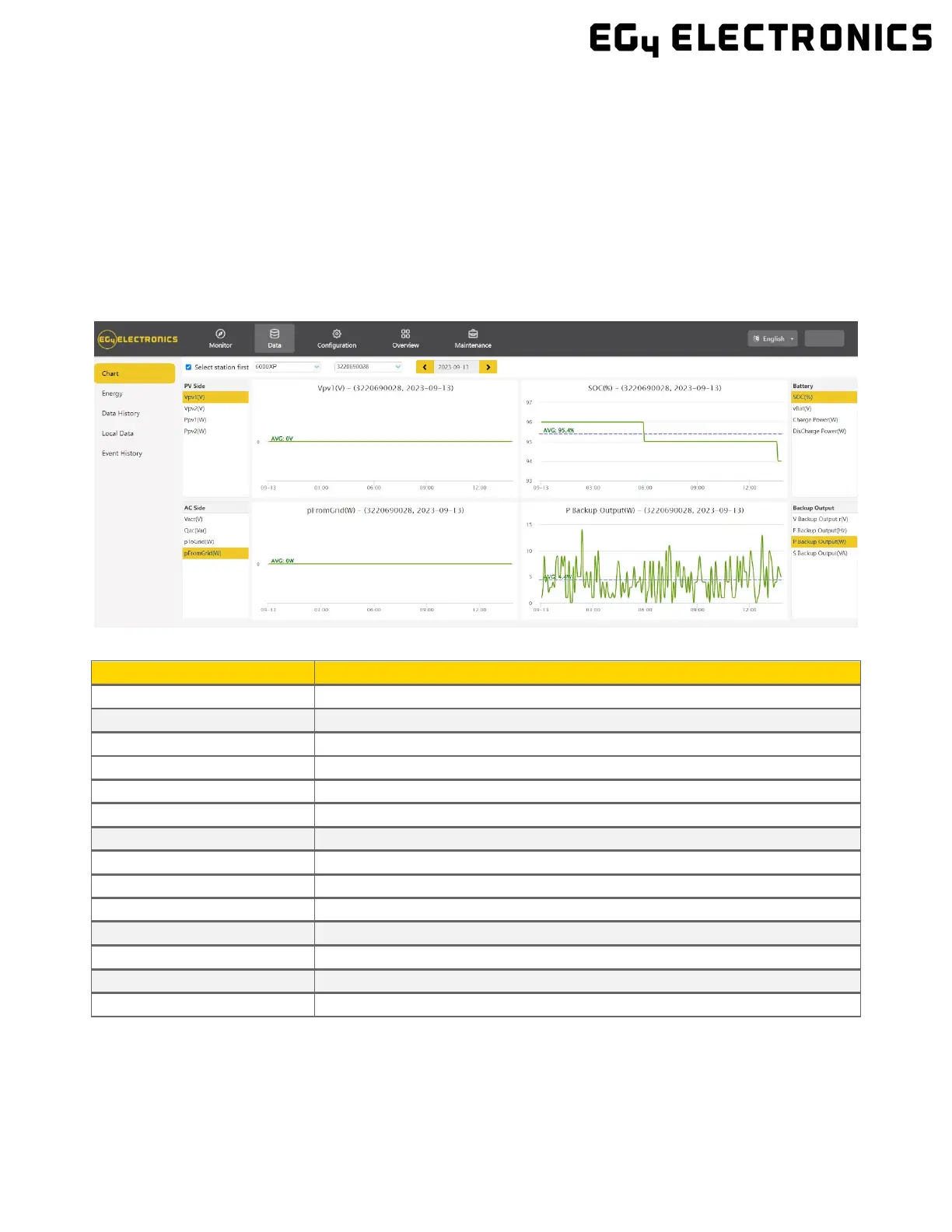

Displays various parameters in chart format over a 24-hour period. There are separate charts
for “PV Side”, “Battery”, “AC Side” and “Backup Output”.
Name
Description
Vpv 1-2 (V)
Voltage of solar input
Ppv 1-2 (V)
Power of solar input
SOC (%)
Battery state of charge
vBat (V)
Battery voltage
Charge Power (W)
Battery charging power
Discharge Power (W)
Battery discharging power
Vacr (V)
Voltage of AC output
Qac (Var)
Reactive power of AC output
pToGrid (W)
Power feed into grid
pFromGrid (W)
Power feed from grid to inverter
V Backup Output r (V)
Load rated voltage
F Backup Output (Hz)
Load frequency
P Backup Output (W)
Load output power
S Backup Output (VA)
Load apparent power

EG4 LuxPowerTek 6000XP Specifications

General

Category	Inverter
Rated Power	6000W
Max DC Input Power	7800W
Number of MPPT Trackers	2
Battery Voltage	48V
Max Charge/Discharge Current	120A
Protection Degree	IP65
Frequency	50/60Hz
Model	LuxPowerTek 6000XP
Communication	RS485
Operating Temperature Range	-25°C to 60°C
Protection Features	Over Voltage Protection, Over Temperature Protection
Cooling	Fan
