EG4 LuxPowerTek 6000XP User Manual

9
4.3 CONNECTION OVERVIEW
4.3.1 SYSTEM CONNECTIONS

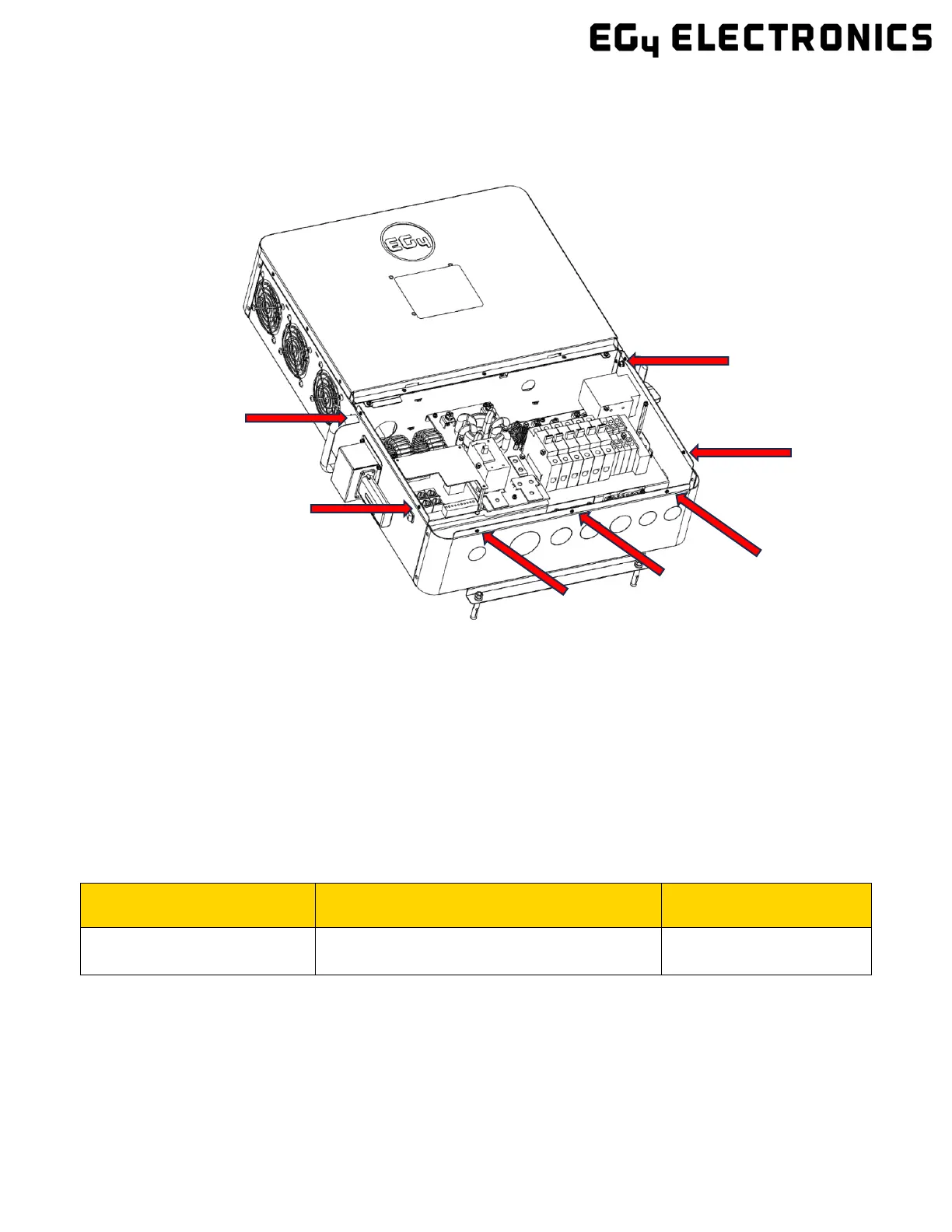

Before connecting any wiring, please remove the bottom cover by removing the 7 screws as shown
below.
4.4 PV CONNECTION
4.4.1 CONNECTING PV TO THE INVERTER
Install a separate DC circuit breaker/isolator between the inverter and PV module(s). The
recommended DC breaker is a 4-pole 600V/20A. The minimum isolator to house both positives and
both negatives if using two independent strings. If only using 1 string, a 2 pole 600V/20A
isolator/breaker is recommended. The recommended cable size for the PV connection(s) is 10 AWG
(4mm
2
) torqued to 1.2 Nm.
Consult with your installer to ensure that appropriate cable sizing is used due to various factors such as
voltage drop and Voc.
PV Cable Size Min. PV Disconnect/Isolator Spec
Torque Specs - PV to
Inverter
10 AWG – 6 AWG (Max)
(6mm² - 16mm²)
600V/20A 1.2Nm

EG4 LuxPowerTek 6000XP Specifications

General

Category	Inverter
Rated Power	6000W
Max DC Input Power	7800W
Number of MPPT Trackers	2
Battery Voltage	48V
Max Charge/Discharge Current	120A
Protection Degree	IP65
Frequency	50/60Hz
Model	LuxPowerTek 6000XP
Communication	RS485
Operating Temperature Range	-25°C to 60°C
Protection Features	Over Voltage Protection, Over Temperature Protection
Cooling	Fan
