7. MONITOR SYSTEM SETUP
7.1 WI-FI/4G/LAN DONGLE CONNECTION
A Wi-Fi/4G/LAN dongle can be used to monitor the inverter and
remotely view the monitoring data on a computer or smart phone.

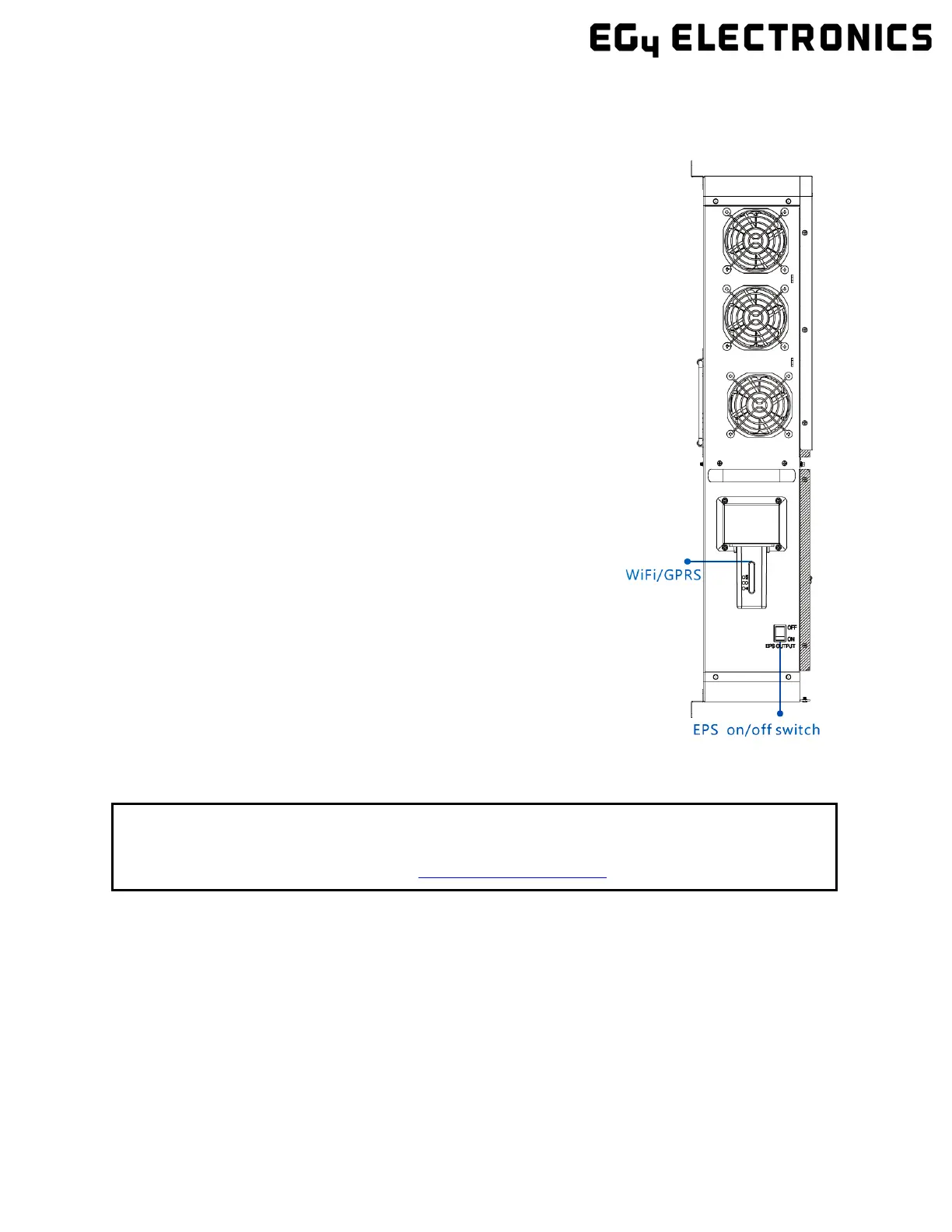

You can attach this module by plugging it in to the ‘Wi-Fi’ connector
on the inverter and securing it with the 4 Phillips head screws. See
section 9 for more details regarding dongle setup.
7.2 THIRD-PARTY RS485 COMMUNICATION
Meters 485B and 485A can be used when a meter is not connected.
These two pins can be used to communicate with the inverter using
the RS485 Modbus protocol.
INV485: This interface is shared with the Wi-Fi module. If the Wi-Fi
module is not in use, this interface can be used to communicate
with the inverter.
Please contact your distributor to get the Modbus protocol for third-party app development.
View data on smart phone:
A QR code with a link to our website with app installation steps can be found on the side of
the
inverter, or visit our downloads page at www.eg4electronics.com for more information.

EG4 LuxPowerTek 6000XP Specifications

General

Category	Inverter
Rated Power	6000W
Max DC Input Power	7800W
Number of MPPT Trackers	2
Battery Voltage	48V
Max Charge/Discharge Current	120A
Protection Degree	IP65
Frequency	50/60Hz
Model	LuxPowerTek 6000XP
Communication	RS485
Operating Temperature Range	-25°C to 60°C
Protection Features	Over Voltage Protection, Over Temperature Protection
Cooling	Fan
