• AC Charge End Battery Voltage(V): Battery Voltage at which system will stop charging
batteries from AC. Set this according to the battery requirements. Range is 48-59 VDC.
• AC Charge Start Battery SOC(%): Battery % SOC at which system will start charging
batteries from AC. Set this according to the battery requirements. Range is 0-90 %.
• AC Charge End Battery SOC(%): Battery % SOC at which system will stop charging
batteries from AC. Set this according to the battery requirements. Range is 20-100 %.
Generator Charge
• Generator Charge Type: Set Generator charging according to Battery Voltage or Battery
SOC.
• Generator Charge Battery Current(A): Set Generator battery charging current. Range is
0-60 Amps.
• Generator Charge Start Battery Voltage(V): Battery Voltage at which system will start
charging batteries from the Generator. Set this according to the battery requirements.
Range is 38.4-52 VDC.
• Generator Charge End Battery Voltage(V): Battery Voltage at which system will stop
charging batteries from the Generator. Set this according to the battery requirements.
Range is 48-59 VDC.
• Generator Charge Start Battery SOC(%): Battery % SOC at which system will start
charging batteries from the Generator. Set this according to the battery requirements.
Range is 0-90 %.
• Generator Charge End Battery SOC(%): Battery % SOC at which system will stop
charging batteries from the Generator. Set this according to the battery requirements.
Range is 20-100 %.
• Max. Generator Input Power(W): The inverter will limit the power from the generator to
90% of the total generator capability to prevent overloading. Range is 0-7,370 Watts for a
single inverter and 0-65,534 Watts for parallel inverters.

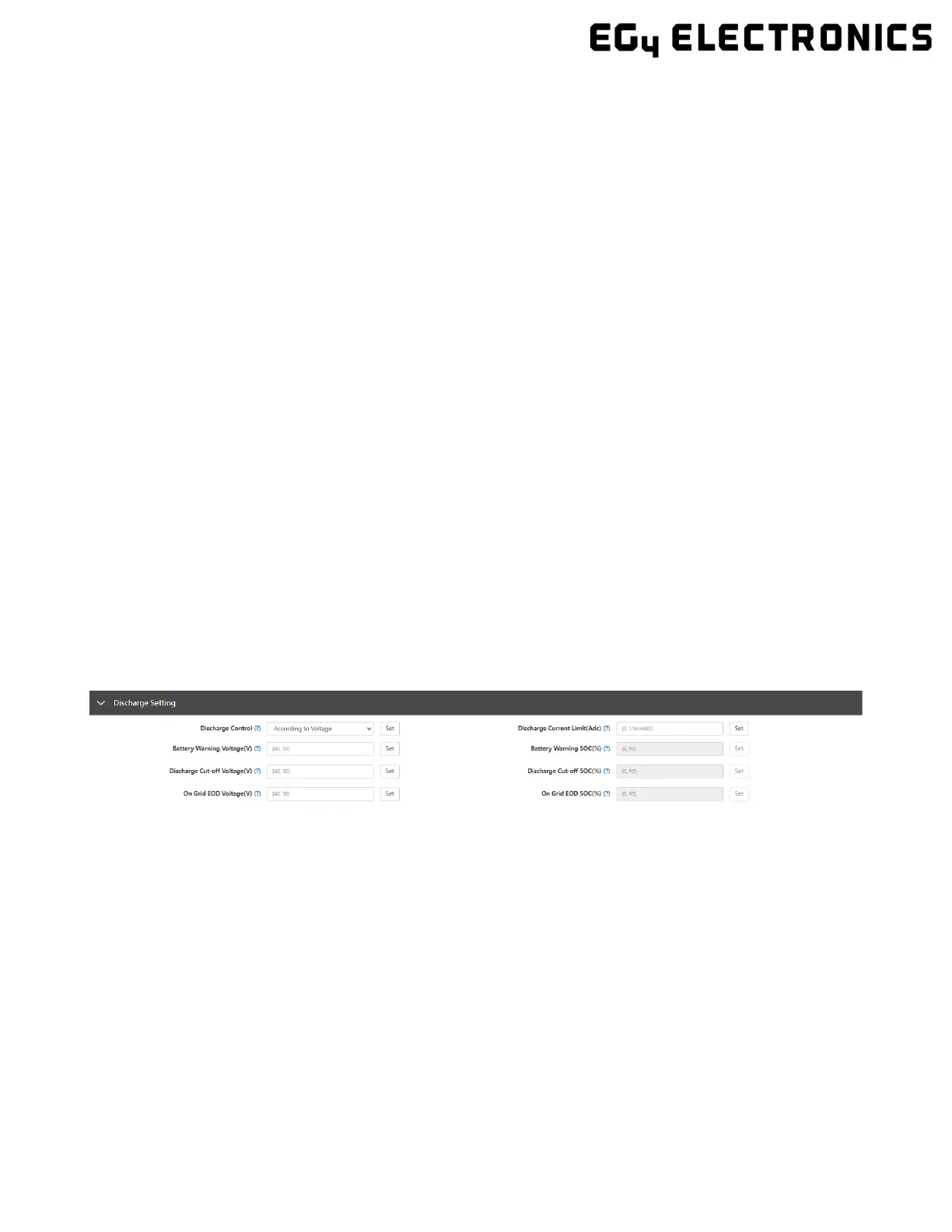

6.4 DISCHARGE SETTING
• Discharge Control: Set to ‘According to Voltage’ when using a lead-acid battery or a
Lithium battery in lead-acid mode. Set to ‘According to SOC’ when using a compatible
Lithium battery.
• Discharge Current Limit(Adc): Set this according to the battery requirements. Range is 1-
110 Amps for a single battery and 1-4480 Amps for paralleled batteries.
• Battery Warning Voltage(V): Set this according to the battery requirements. The inverter
will display a battery low warning when the battery voltage falls to this value. Range is 40-
50 VDC.
• Battery Warning SOC(%): Set this according to the battery requirements. The inverter will
display a battery low warning when the battery SOC falls to this value. Range is 0-90 %.
• Discharge Cut-off Voltage(V): Set this according to the battery requirements. Range is
40-50 VDC.
