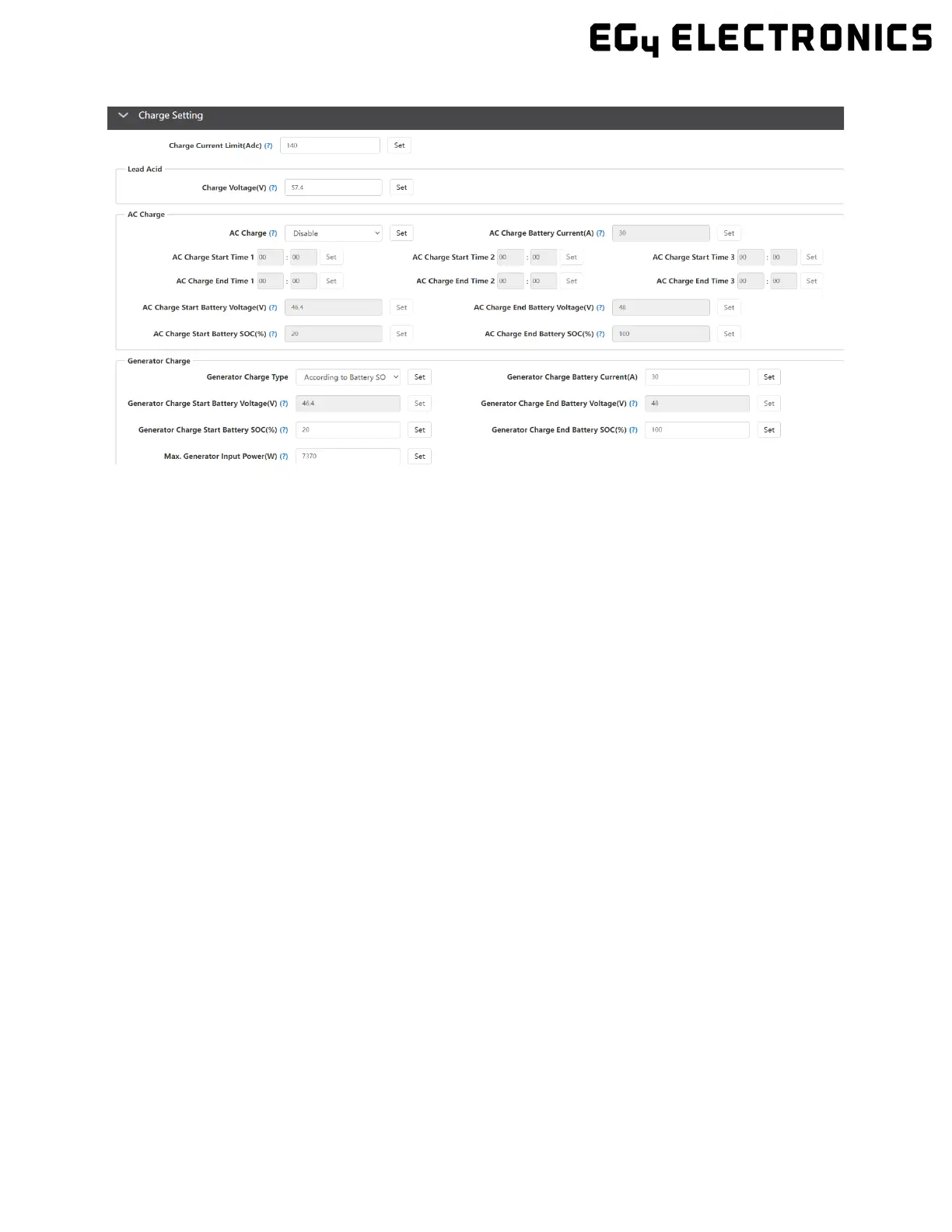

5.2 CHARGE SETTING
• Charge Current Limit(A): The maximum charge current limitation of the entire system in
DC Amps.
Lead Acid
• Charge Voltage(V): Set bulk charging voltage for Lead Acid batteries.
AC Charge
• AC Charge: Utility charge configuration. If users want to use grid power to charge their
battery, then they can enable ‘AC Charge’. Configure setting by Time, Voltage, SOC, Time
& Voltage or Time & SOC. Up to 3 timeslots can be configured via the AC Charge Start
Time 1, 2 and 3 settings shown above.
• AC Charge Battery Current(A): Set AC Charge Current limit for grid to batteries.
• AC Charge Start Battery Voltage(V): Begin charging from grid when batteries reach this
voltage. (If set to charge by Voltage)
• AC Charge End Battery Voltage(V): Stop charging from grid when batteries reach this
voltage. (If set to charge by Voltage)
• AC Charge Start Battery SOC(%): Begin charging from grid when batteries reach this
SOC%. (If set to charge by SOC)
• AC Charge End Battery SOC(%): Stop charging from grid when batteries reach this
SOC%. (If set to charge by SOC)
5.2.1 GENERATOR CHARGE
• Generator Charge Type: Set generator charge type by either Voltage or SOC%.
• Generator Charge Battery Current(A): Set maximum amperage charge from generator.
• Generator Charge Start Battery Voltage(V): Set Voltage which generator will start
charging batteries.
• Generator Charge End Battery Voltage(V): Set Voltage which generator will stop
charging batteries.
• Generator Charge Start Battery SOC(%): Set SOC% which generator will start charging
batteries.
• Generator Charge End Battery SOC(%): Set SOC% which generator will stop charging
batteries.
