EG4 LuxPowerTek 6000XP User Manual

38

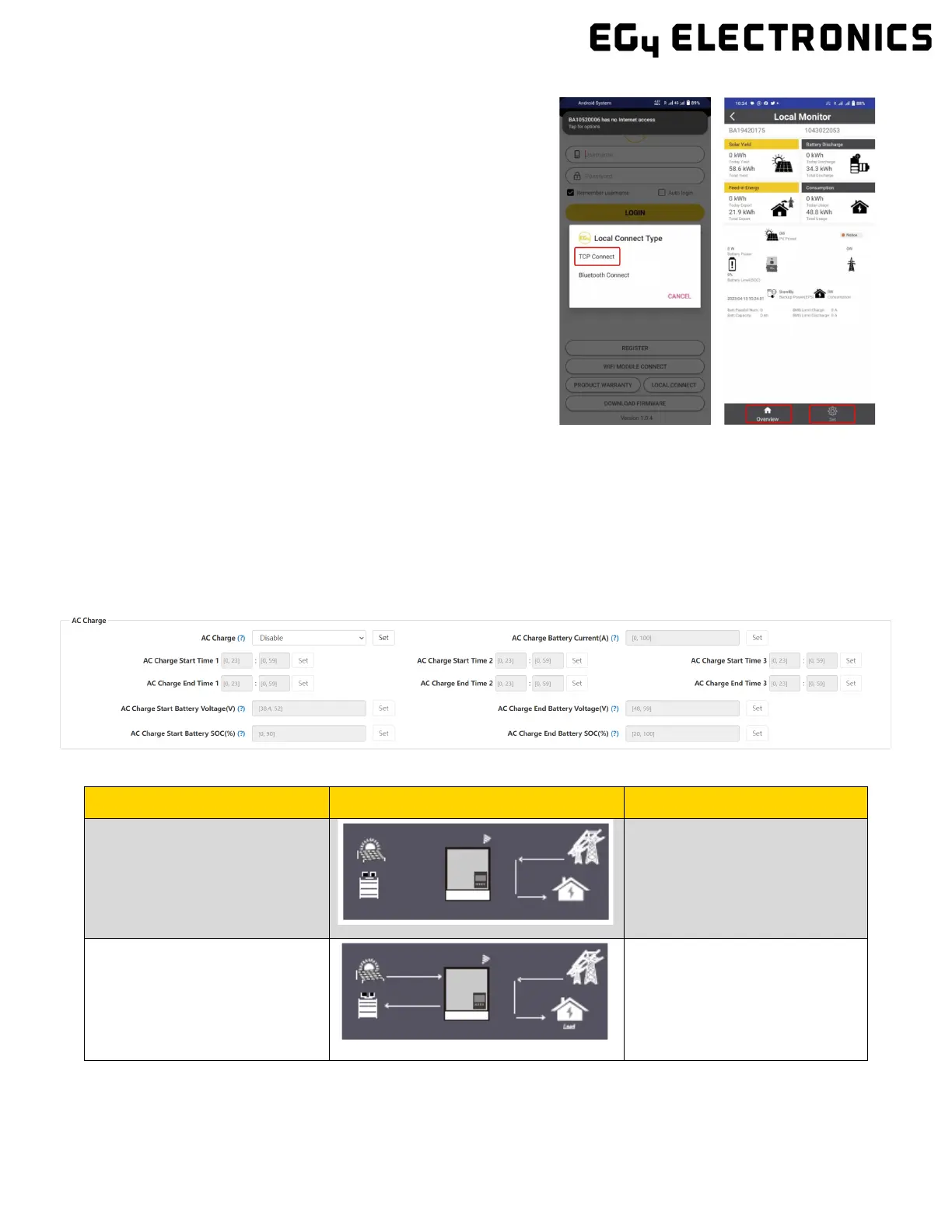

Local Monitoring Setup with the EG4 Monitor App
If there is no Wi-Fi available at the location, you can
use the Bluetooth function on your mobile device to
monitor or set up the system.
1. Download the EG4 Monitor app.
2. Select “Local Connect.” You can now
monitor and set up the system via
Bluetooth or TCP Connect.
3. Click “Local Connect.” Select “Bluetooth
Connect.” On the next page, select the
serial number of the unit that has the
dongle connected.
4. Now you may view your system
information through Bluetooth connection
on your mobile device.
10. OPERATION GUIDE
10.1 AC CHARGE MODE
Working Modes
Mode Diagram Comments
Bypass Mode AC powers the load
PV Charge Bypass
PV charges the battery while
AC powers the load
In this mode, users can charge batteries with grid power when electricity prices are low, then use
battery power to power loads.
Application Scenario
When users have a Time of Use (TOU) rate plan.

EG4 LuxPowerTek 6000XP Specifications

General

Category	Inverter
Rated Power	6000W
Max DC Input Power	7800W
Number of MPPT Trackers	2
Battery Voltage	48V
Max Charge/Discharge Current	120A
Protection Degree	IP65
Frequency	50/60Hz
Model	LuxPowerTek 6000XP
Communication	RS485
Operating Temperature Range	-25°C to 60°C
Protection Features	Over Voltage Protection, Over Temperature Protection
Cooling	Fan
