EG4 LuxPowerTek 6000XP User Manual

39

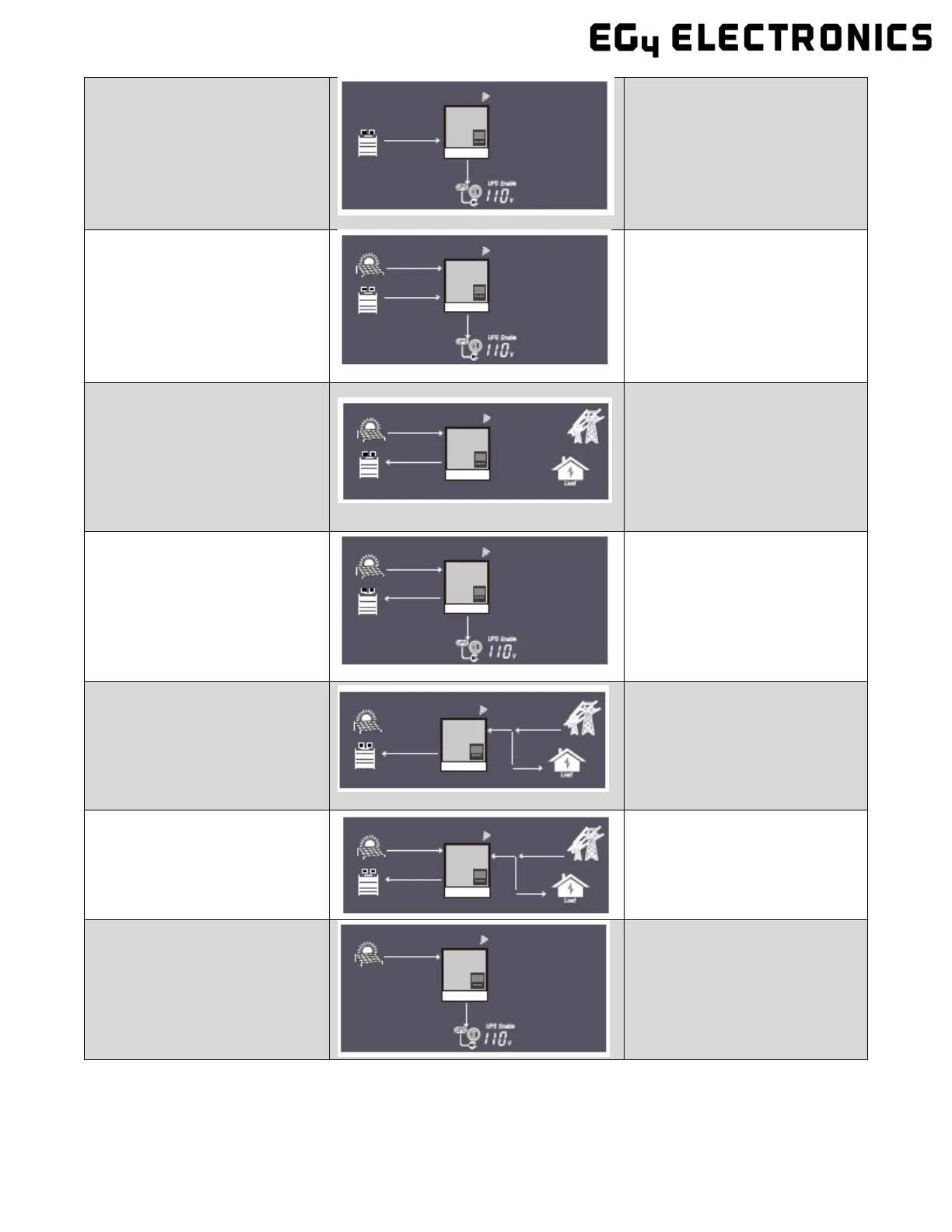

BAT Off-Grid Battery powers the load
PV+BAT Off-Grid PV & Battery power the load
PV Charge
1. With EPS output switch off,
the inverter charges the
battery only
2. With battery power off, PV
can wake up the battery
automatically
PV Charge+Off-Grid
PV charges the battery and
powers the load
AC Charge
1. AC powers the battery
from AC Input (Grid) or
Generator Input (GEN)
2. When batteries reach low
threshold, charge bank with
Grid/GEN
PV+AC Charge
PV & AC charge the battery.
AC is from AC Input (Grid) or
Generator Input (GEN)
PV Off-Grid
PV powers the load.
NOTE: Load power depends
on PV energy input and may
be unstable

EG4 LuxPowerTek 6000XP Specifications

General

Category	Inverter
Rated Power	6000W
Max DC Input Power	7800W
Number of MPPT Trackers	2
Battery Voltage	48V
Max Charge/Discharge Current	120A
Protection Degree	IP65
Frequency	50/60Hz
Model	LuxPowerTek 6000XP
Communication	RS485
Operating Temperature Range	-25°C to 60°C
Protection Features	Over Voltage Protection, Over Temperature Protection
Cooling	Fan
