Elcometer 500 - 13 PIN LOCK - MODEL T; 14 BATCHING - MODEL T

d
The  softkey will appear when the first ‘X’ is changed to a number.
The ‘PIN Lock’ feature prevents the user from accidentally adjusting
the gauge settings.
To set a PIN code:
1 Press Menu/Setup/PIN Lock.

2 Set the four digit PIN code using the

softkeys to select 0 to 9 and the  softkey
d

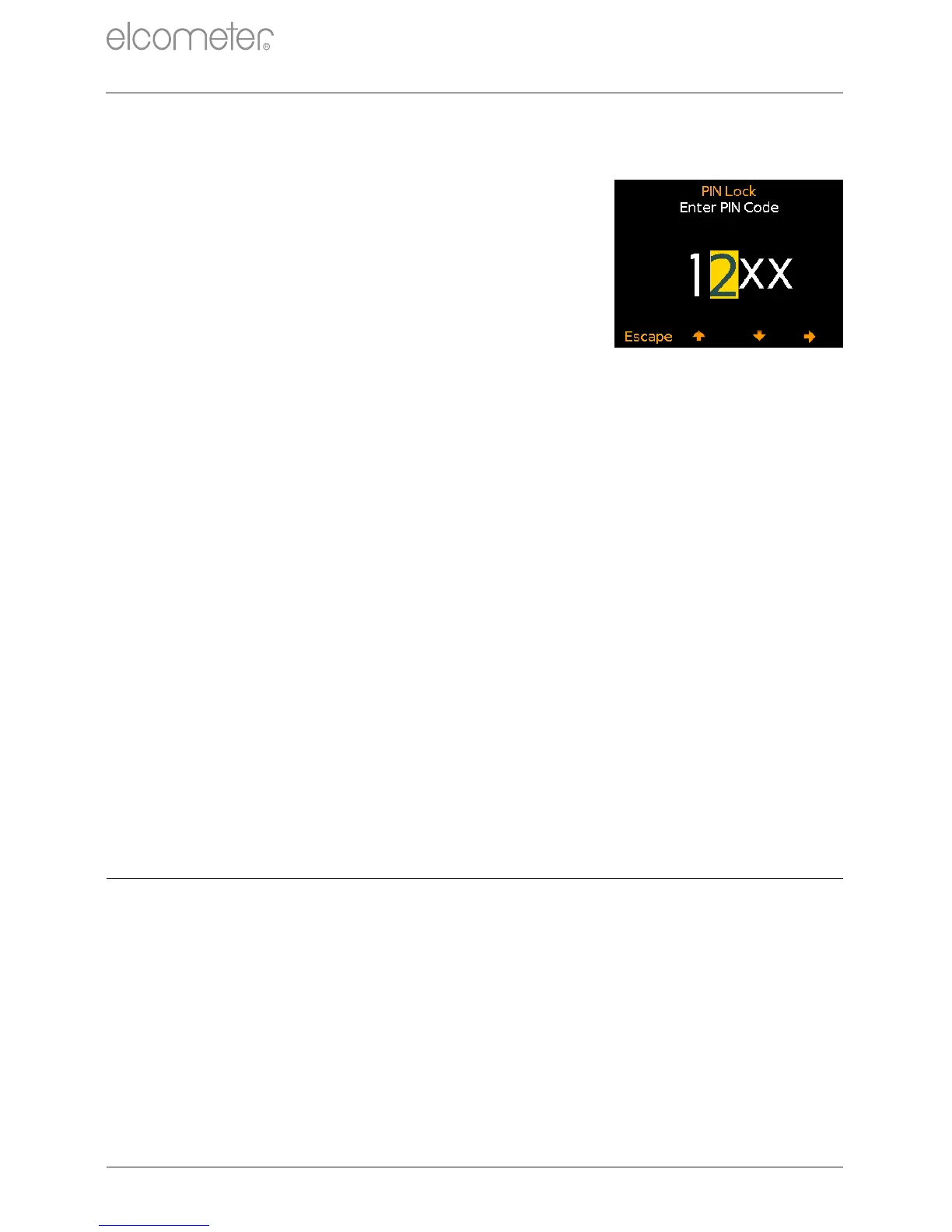

to move to the next digit (Figure 25).
3 Press ‘Ok’ to set, ‘Escape’ to cancel or
‘Adjust’ to amend the PIN code.
When enabled, the following features are disabled and can not be
adjusted:
Menu/Calibration/Calibrate Menu/Calibration/Cal Method
Menu/Calibration/Cal Memory Menu/Calibration/Factory Calibration
Menu/Reset Batch/Edit Batch/Delete Batch
Menu/Limit Memories/Create Limit Memory Batch/Deleted Reading
Menu/Limit Memories/Edit Limit Memory
Batch/New Batch/Batch Limits/Create Limit Memory
To unlock the PIN code:
1 Press Menu/Setup/PIN Lock.

2 Enter the four digit PIN code using the softkeys to select 0 to

d
9 and the  softkey to move to the next digit .
3 Press ‘Ok’ or ‘Escape’ to cancel.
®
Note: Should the user forget or lose the PIN code, it can be disabled via ElcoMaster .
Using the USB cable supplied, simply connect the gauge to a PC with
®
ElcoMaster version 2.0.57 or higher installed and select Edit/Clear PIN.
Figure 25
13 PIN LOCK - MODEL T
www.elcometer.com
en-25
R
The Elcometer 500 Model T can store 100,000 readings in up to 1,000
batches. The following batch functions are available:
 Batch/New Batch; Creates a new batch.
 Batch/New Batch/Fixed Batch Size; Pre-define the number of
readings which are stored in a batch. The gauge will notify the
user when a batch is complete and ask if another batch is to be
opened. These batches are then linked when transferred to
®
ElcoMaster .
14 BATCHING - MODEL T
