43. Cabinet
Service
manual
487 03 29 41
4
43
Sliding Door.
(continued from the previous page)

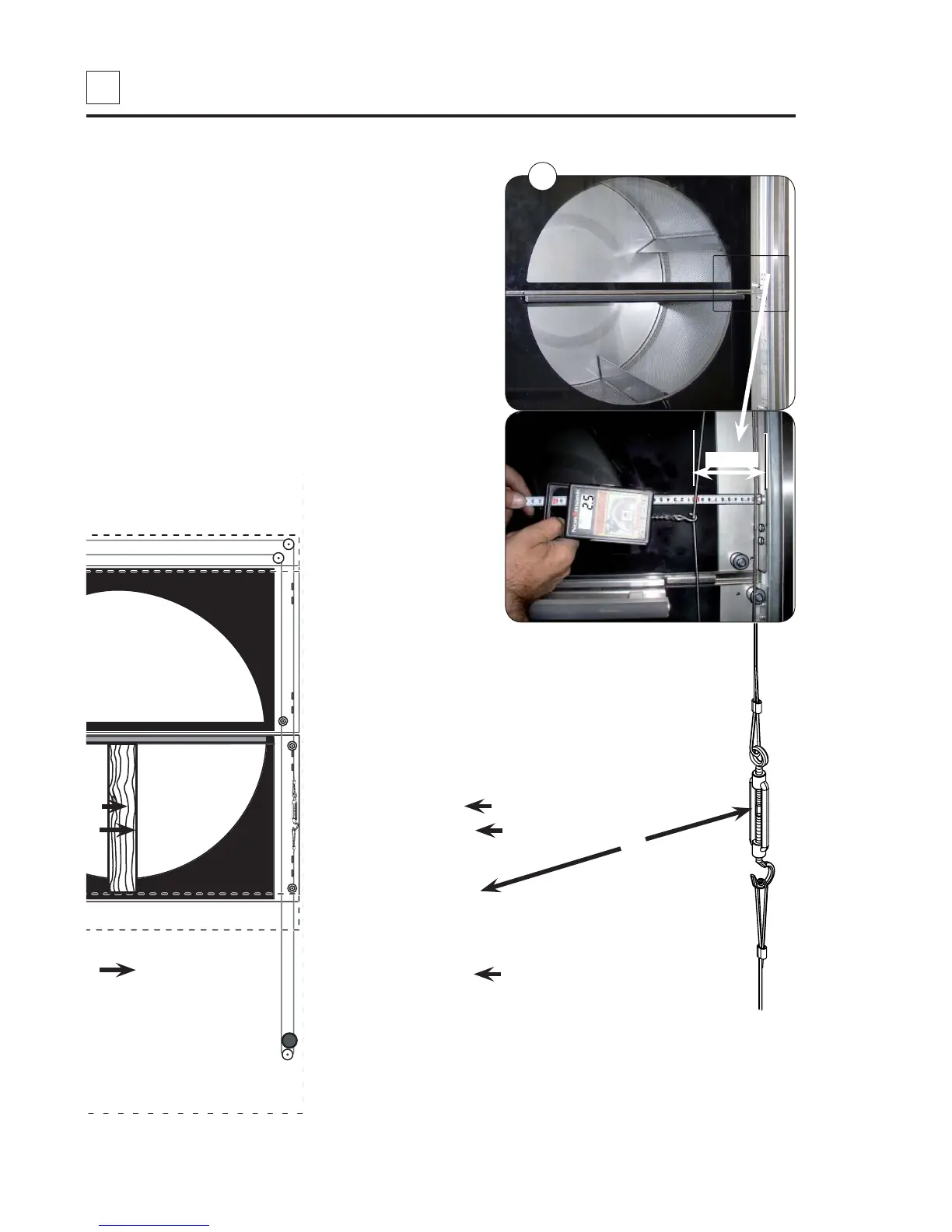

Adjusting of the wire rope
1. Check that the wire is tighten:
• Loosen all 6 wire clamps A.
• 2,5 kg wire traction must result in a motion of
100 mm as shown in figure 3.
2. Adjustment with adjusting screw J.
3. Place the wire in the wire clamps A and tighten
all 6 of them.
Continued on the following page.
3
100 mm
J
A
A
A
A
A
A
