43. Cabinet
Service
manual
43
Sliding Door.
(continued from the previous page)

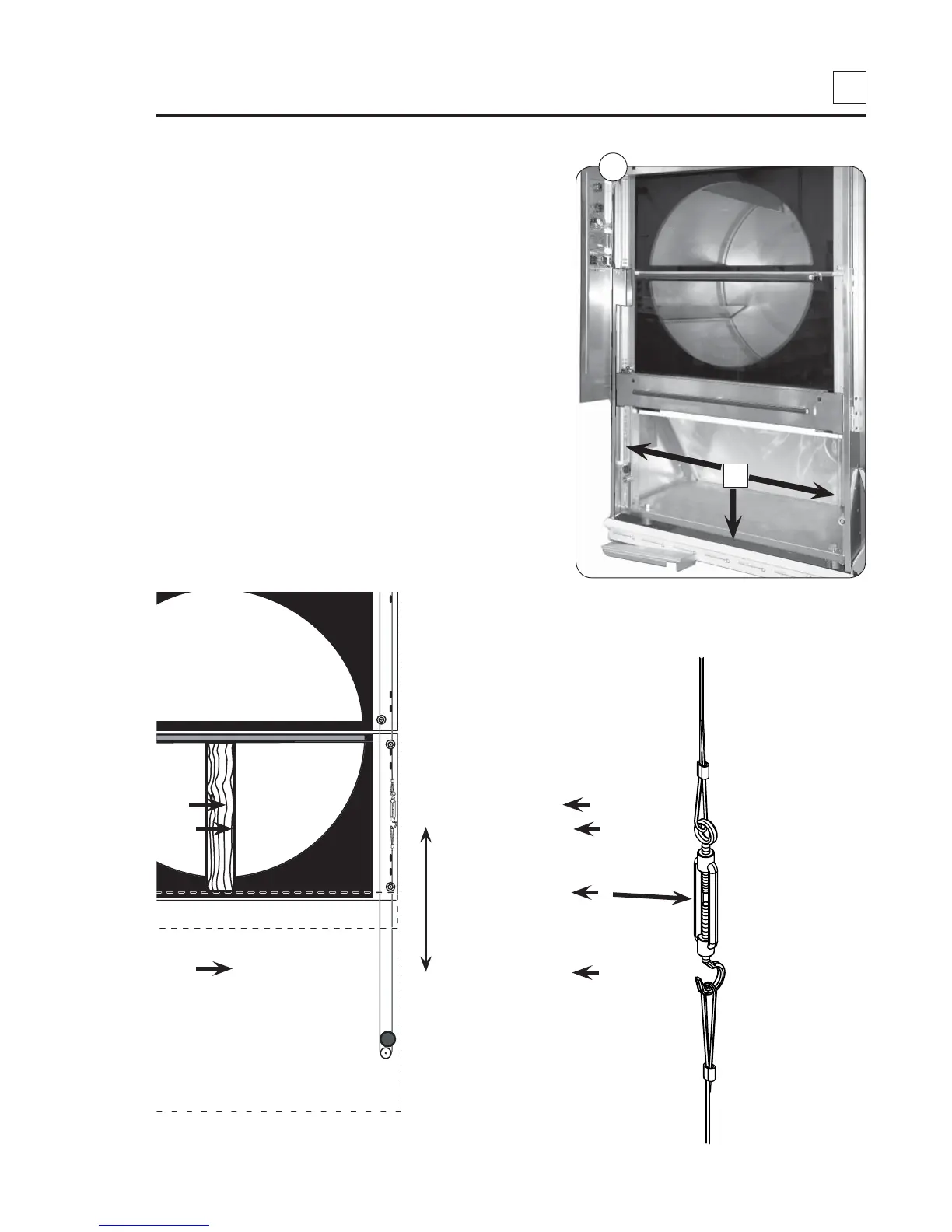

Replacing of wire rope
1. Disconnect the power supply to the dryer.
2. Adjust a board to 555 mm for fixation of doors.
• Place it between handle and girder B.
3. Dismantle panels P in filter compartment.
4. Loosen all 6 wire clamps A.
5. Replace defective wire.
6. Secure the new wire to adjusting screw J
7. See page 3. Adjusting of the wire rope
8. Mount all parts and test the tumble dryer.
