42. Drum with bearing
Service
manual
42
Removing Sliding Door equipment:
(continued from the previous page)

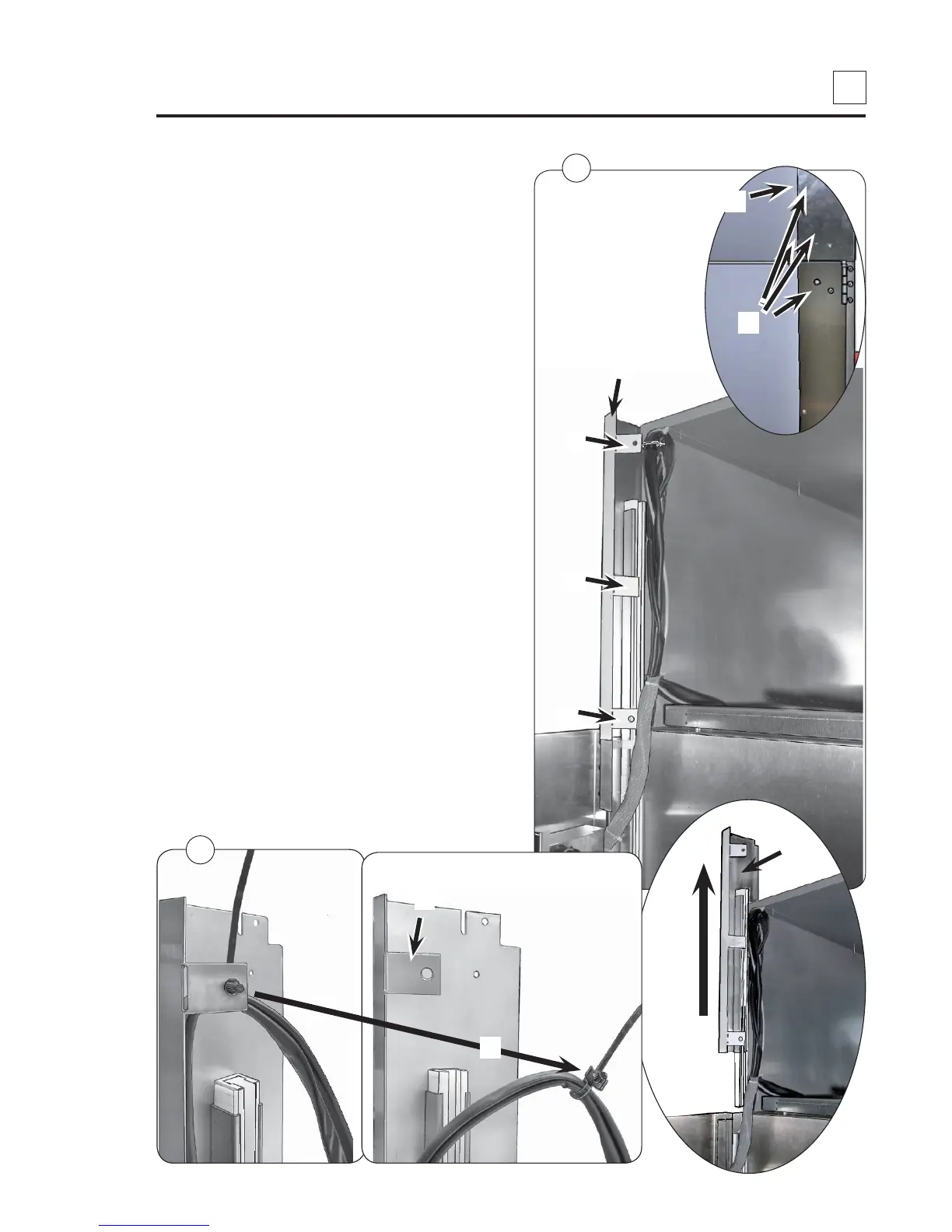

6. Unscrew screw S in the bottom side
panel. Unscrew the 3 screws in the top
panel H.
• Ties holding cables and wiring are
untied or cut off, and the cable holders
K are bent out so that the cable can be
released.
After this, the 2 uppermost side panels H
can be pulled up.
6b. Note! The ties retaining button F must
not be cut off, but is pushed back through
the hole.
During installation, the cable must be
carefully located in the same position, so
that the Sliding Door movement does not
damage the cables.
Continued on the following page
6
S
H
H
H
K
K
K
K
6b
F
