eMachines D620 - Removing the Fan Module; Part no; A552.3 R0 86.9 A524.4 R0

Chapter 3 59

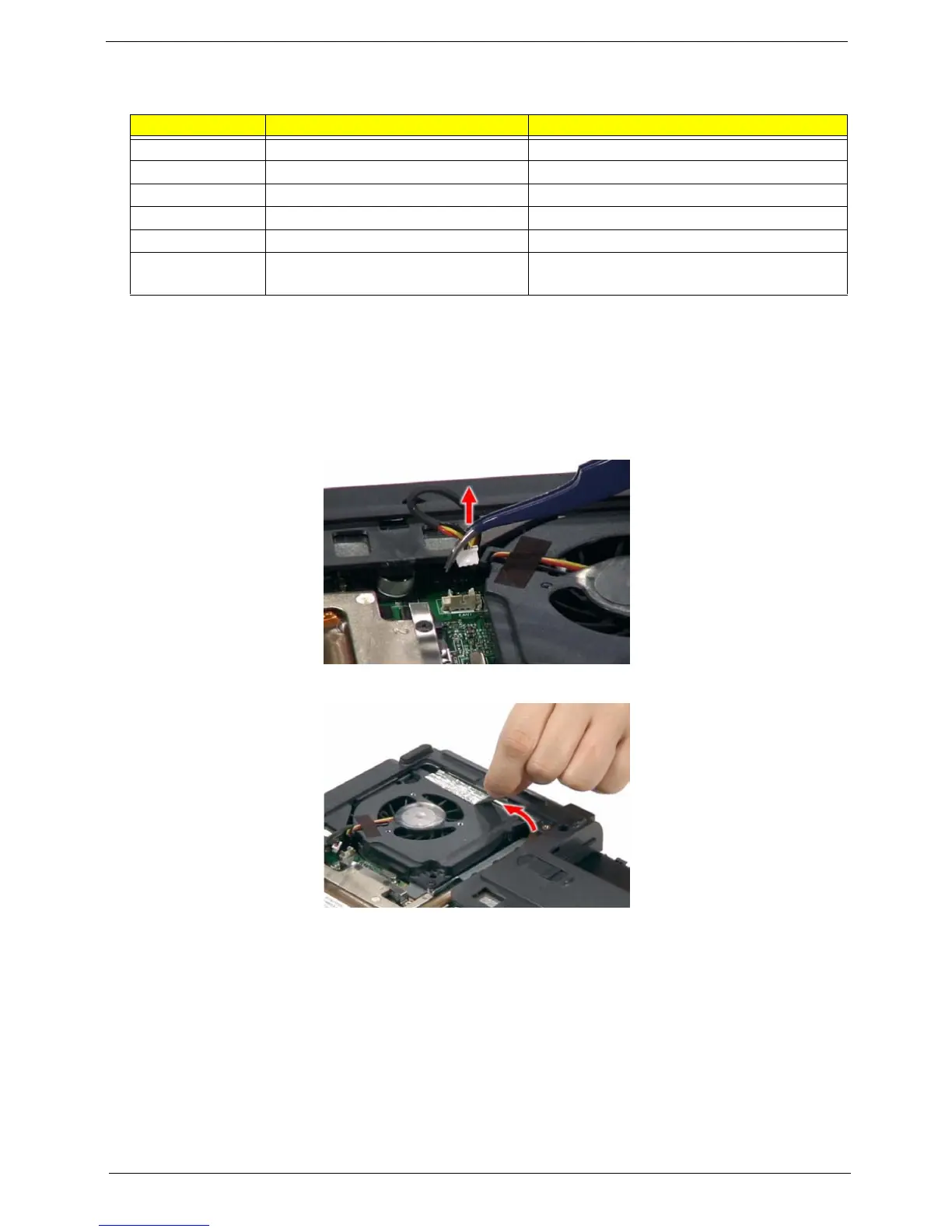

Removing the Fan Module
1. See “Removing the Battery Pack” on page 51.
2. See “Removing the Lower Cover” on page 51.
3. See “Removing the Lower Cover” on page 51.
4. Detach the heatsink cable.
5. Detach the tin foil tape on the fan.
Screw List
Screw Part No.
A M2 x L4 86.00G64.720
C M2 x L3 86.9A552.3R0
D M3 x L4 86.9A524.4R0
E M2.5 x L6 86.00E33.736
G M2 x L3 86.00C07.220
H M2.5 x L5 (torque 1.6)
M2.5 x L5 (torque 3.0)
86.00F87.735
