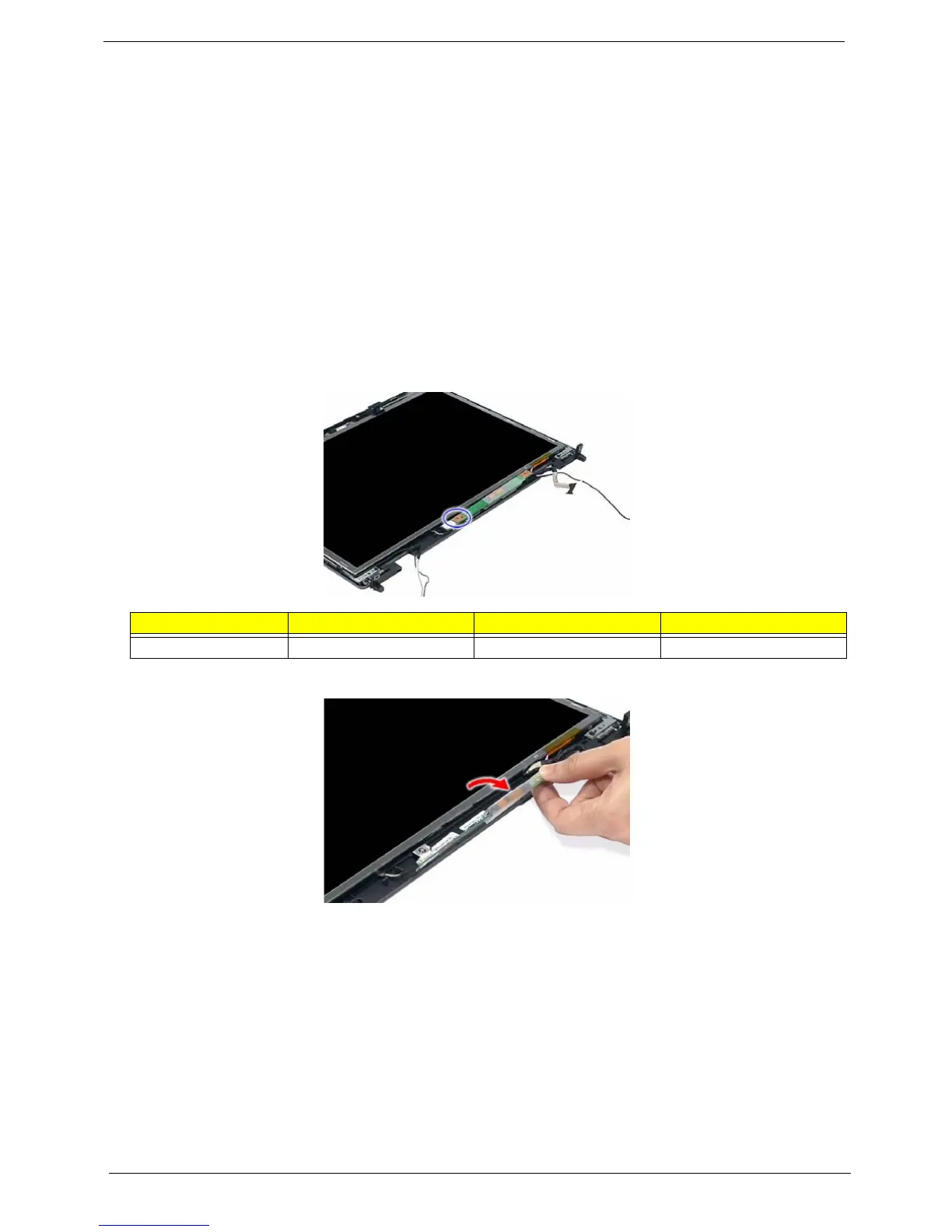

Removing the Inverter Board
1. See “Removing the Battery Pack” on page 51.
2. See “Removing the Lower Cover” on page 51.
3. See “Removing the Lower Cover” on page 51.
4. See “Removing the Fan Module” on page 59.
5. See “Removing the CPU Heatsink Module” on page 60.
6. See “Removing the CPU” on page 61.
7. See “Removing the Middle Cover” on page 62.
8. See “Removing the Keyboard” on page 63.
9. See “Removing the LCD Module” on page 64.
10. See “Removing the LCD Bezel” on page 77.
11. Remove the screw (H) that hold the board to the panel.
12. Turn the inverter board over.
Step Size (Quantity) Color Torque
1 M2.5 x L5 (1) Black 3 kgf-cm
