eMachines D620 - Separating the Upper Case from the Lower Case

68 Chapter 3
Separating the Upper Case from the Lower Case
1. See “Removing the Battery Pack” on page 51.
2. See “Removing the Lower Cover” on page 51.
3. See “Removing the Lower Cover” on page 51.
4. See “Removing the Fan Module” on page 59.
5. See “Removing the CPU Heatsink Module” on page 60.
6. See “Removing the CPU” on page 61.
7. See “Removing the Middle Cover” on page 62.
8. See “Removing the Keyboard” on page 63.
9. See “Removing the LCD Module” on page 64.

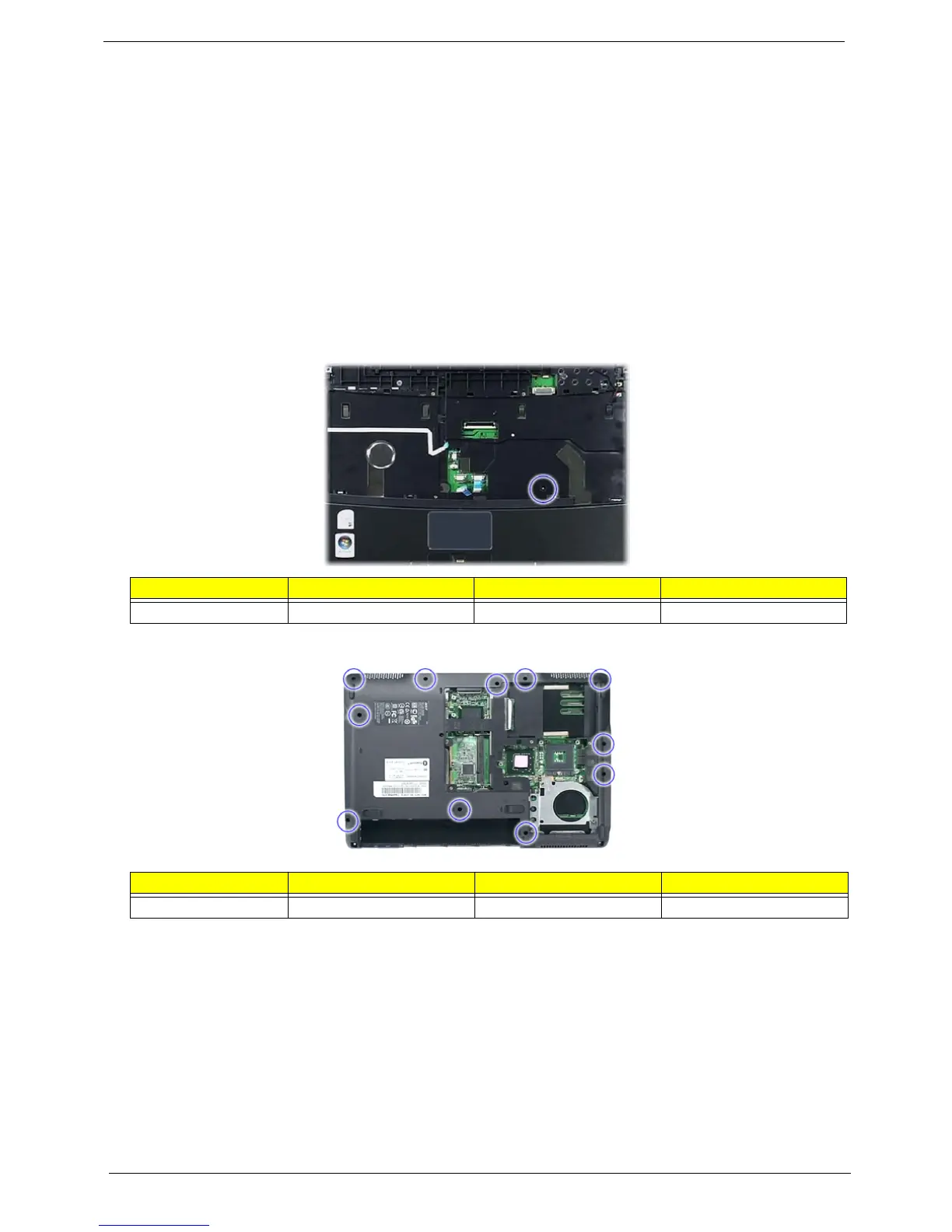

10. Remove the screw (A) on the top panel.
11. Turn the system over and remove the 11 screws (E) on the bottom panel.
Step Size (Quantity) Color Torque
1 M2 x L4 (1) Black 1.6 kgf-cm
Step Size (Quantity) Color Torque
1~11 M2.5 x L6 (11) Black 3.0 kgf-cm
