15. Remove the left and right hinges from the LCD back cover.
Removing the Antennas
1. See “Removing the Battery Pack” on page 51.
2. See “Removing the Lower Cover” on page 51.
3.
4. See “Removing the Lower Cover” on page 51.
5. See “Removing the Fan Module” on page 59.
6. See “Removing the CPU Heatsink Module” on page 60.
7. See “Removing the CPU” on page 61.
8. See “Removing the Middle Cover” on page 62.
9. See “Removing the Keyboard” on page 63.
10. See “Removing the LCD Module” on page 64.
11. See “Removing the LCD Bezel” on page 77.
12. See “Removing the Inverter Board” on page 78.
13. See “Removing the LCD with Brackets” on page 79.

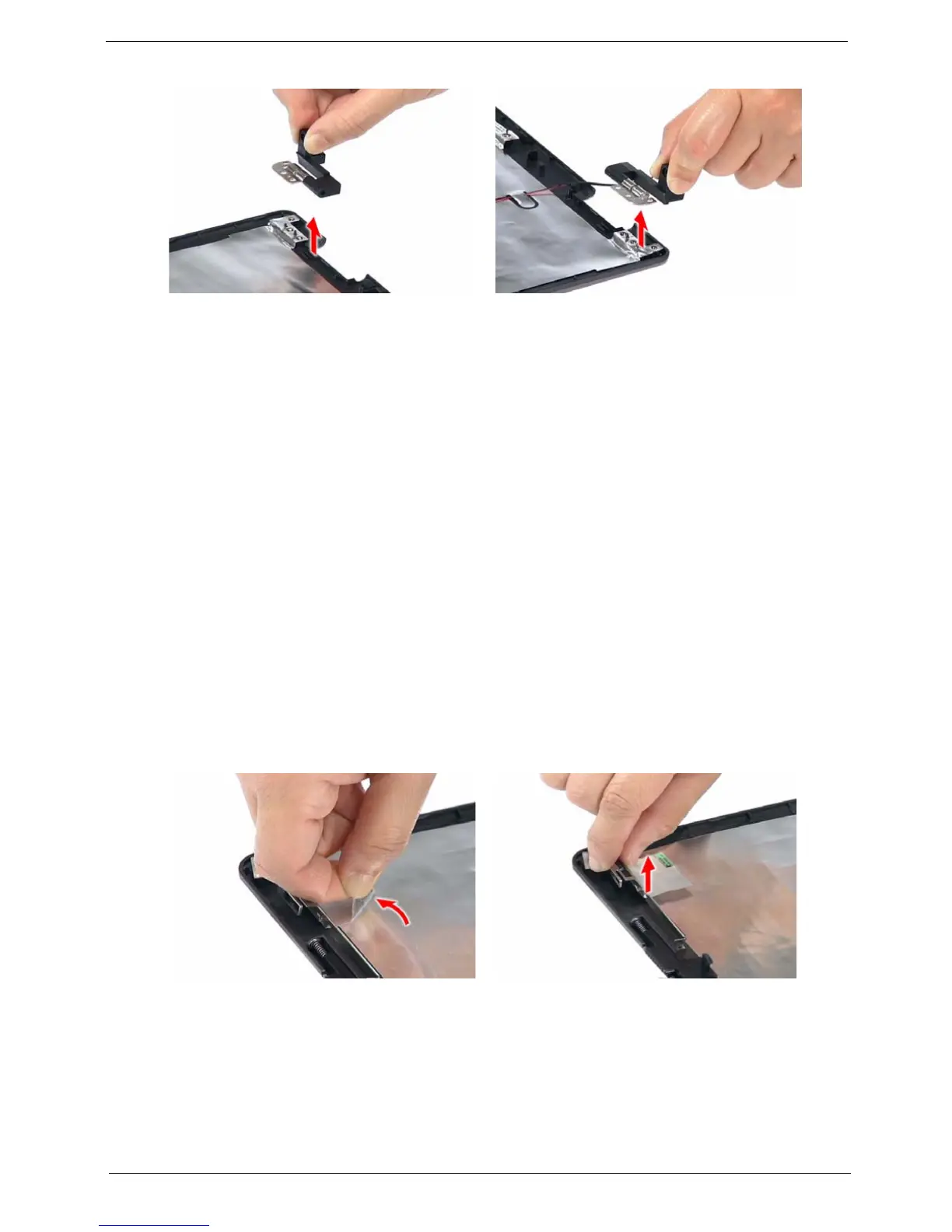

14. Detach the gasket tape holding the right antenna in place, remove the antenna bracket, then carefully
remove the antenna.
