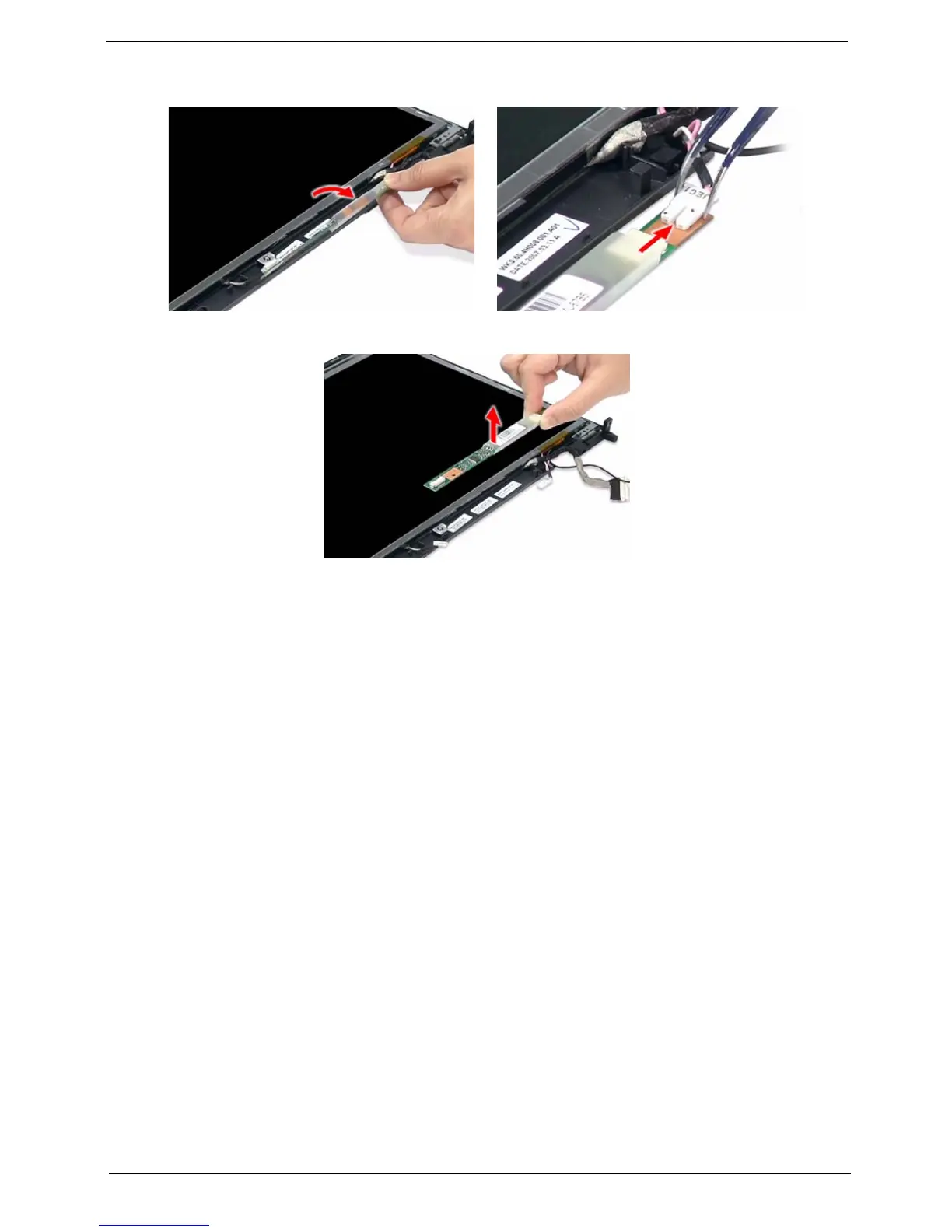

13. Disconnect the inverter board cable from its connector, then disconnect the 2P cable on the inverter
board.
14. Remove the inverter board.
Removing the LCD with Brackets
1. See “Removing the Battery Pack” on page 51.
2. See “Removing the Lower Cover” on page 51.
3.
4. See “Removing the Lower Cover” on page 51.
5. See “Removing the Fan Module” on page 59.
6. See “Removing the CPU Heatsink Module” on page 60.
7. See “Removing the CPU” on page 61.
8. See “Removing the Middle Cover” on page 62.
9. See “Removing the Keyboard” on page 63.
10. See “Removing the LCD Module” on page 64.
11. See “Removing the LCD Bezel” on page 77.
12. See “Removing the Inverter Board” on page 78.
