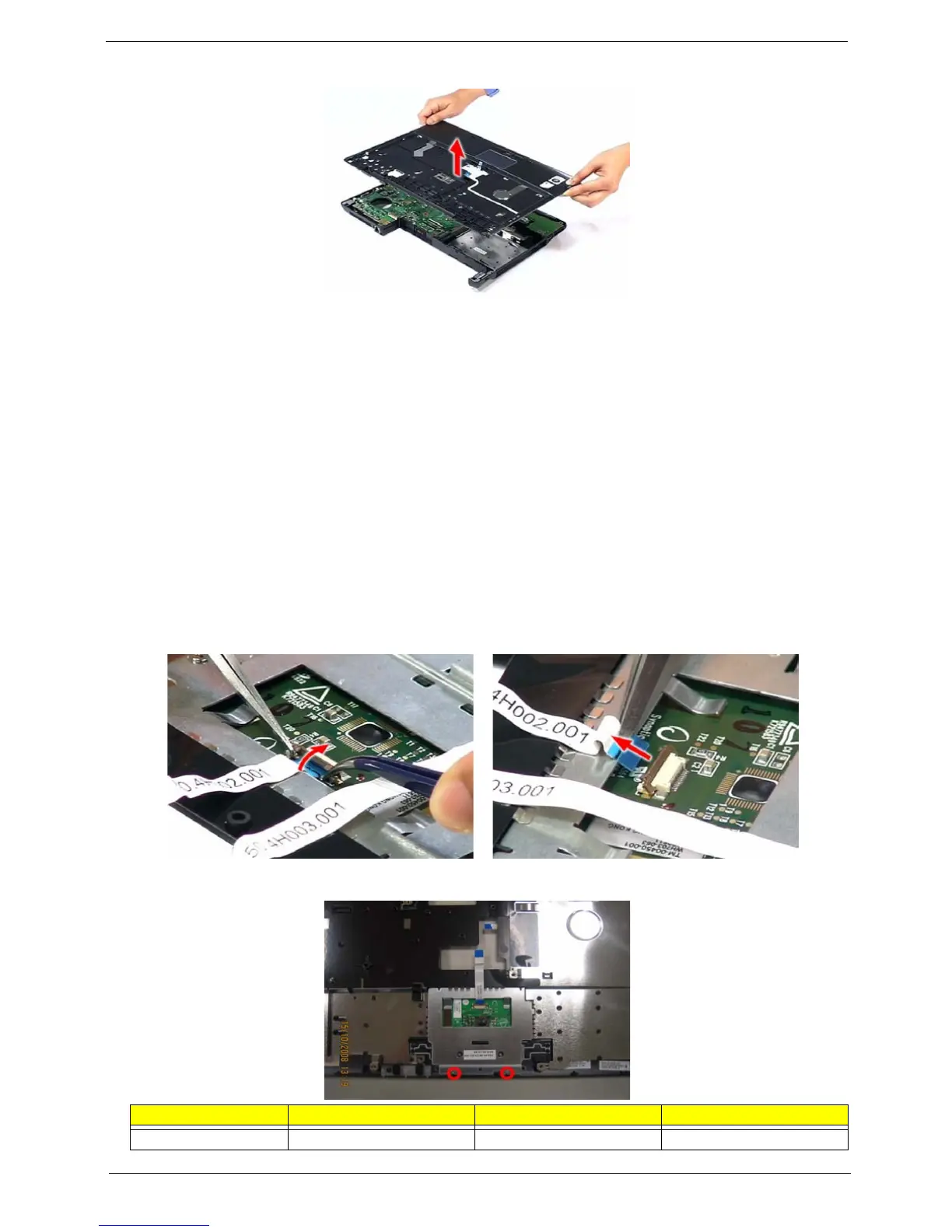

12. Gently detach the upper case from the lower case.
Removing the Touchpad Board Module
1. See “Removing the Battery Pack” on page 51.
2. See “Removing the Lower Cover” on page 51.
3. See “Removing the Lower Cover” on page 51.
4. See “Removing the Fan Module” on page 59.
5. See “Removing the CPU Heatsink Module” on page 60.
6. See “Removing the CPU” on page 61.
7. See “Removing the Middle Cover” on page 62.
8. See “Removing the Keyboard” on page 63.
9. See “Removing the LCD Module” on page 64.
10. See “Separating the Upper Case from the Lower Case” on page 68.
11. Disconnect the touchpad cable from the touchpad board.
12. Remove the two screws (C) on the touchpad bracket.
Step Size (Quantity) Color Torque
1~4 M2 x L3 (4) Silver 1.6 kgf-cm
