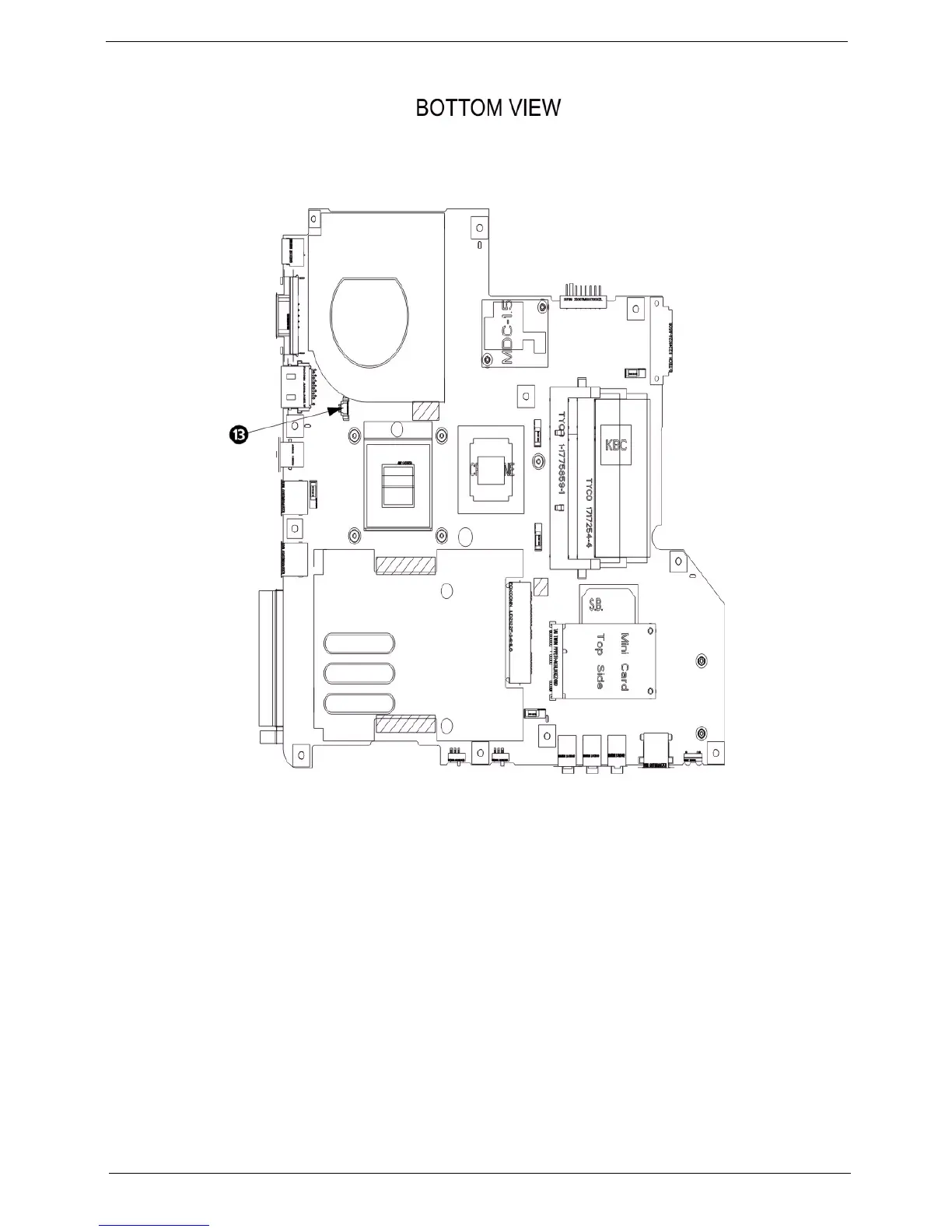

1 Lid switch connector 8 Fingerprint board connector (not available on
this model)
2 Power key switch 9 Touchpad board connector
3 Launch key switch 10 Bluetooth cable connector (not available on
this model)
4 LCD cable connector 11 Speaker cable connector
5 Keyboard connector 12 Daughter board connector (not available on
this model)
6 LED board connector 13 System fan connector
7 Microphone cable connector
