ESD3000-System
18/66
The ESD test System consist of ESD3000, the discharge modules (DM) or relay module and networks.
The batteries, the charger and control are part of ESD3000. The discharge modules or networks includes
the high voltage generation and the wave-shaping network.

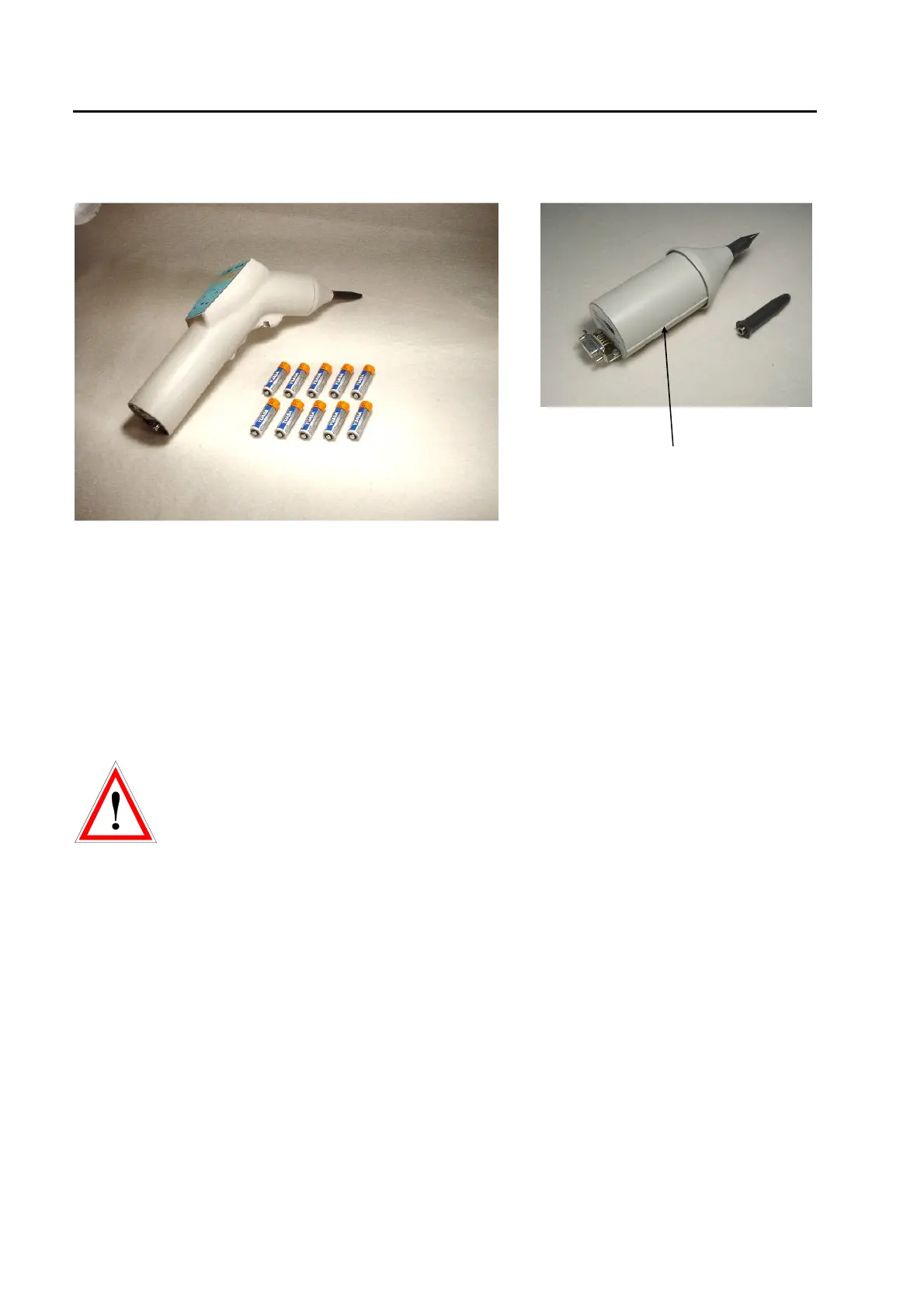

ESD3000 with one discharge module Discharge Module
The screw on the bottom side of the ESD3000 must be unscrewed, before the DM can be pull out and
changed with an other one. The modules can be inserted only in one position.
3.2.3 Avoiding Mechanical Damage to Discharge Modules
ESD3000 discharge modules contain components sensitive to mechanical shock. When modules suffer
mechanical shock they can be damaged beyond repair.
When ESD3000 modules are not in use, place them in the transport case. Do not
allow them to roll around on the test bench or fall onto the floor.
Positioning part of the
discharge modules
