12.2 Pictures of the accessories

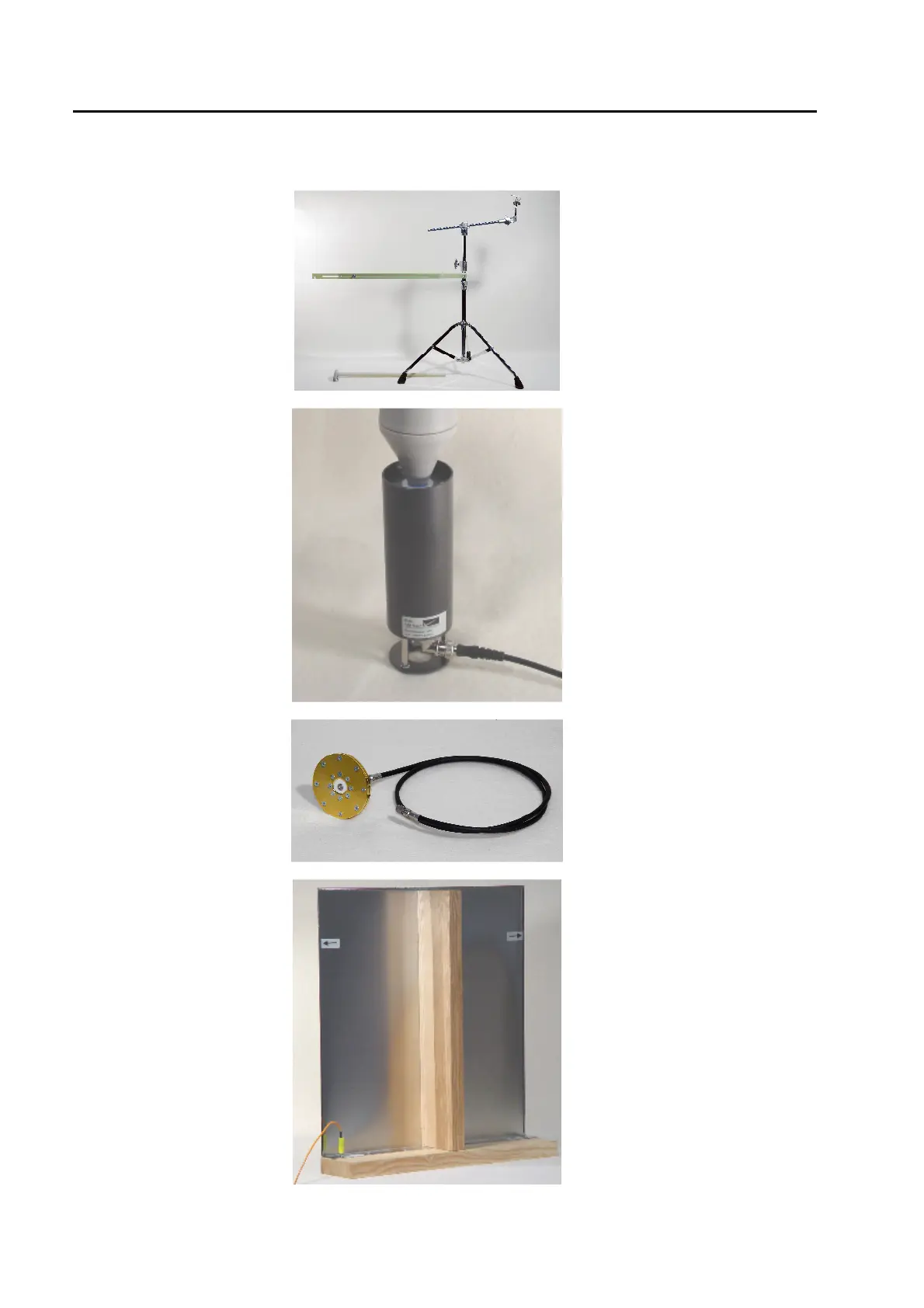

ESD-STAND Ed2:
Height adjustable from 0.4 m
up to 1.75 m
Application:
long term tests in contact and
air discharge mode
ESD-VERI-V: 20 G divider for high voltage
measurement on the
ESD3000 up to 25 kV.
Ratio is determined by 1 M
Ohm input of the
oscilloscope.
Ration approximate 20’000
ESD-TARGET2: 2 Ohm Target with SMA
connector, upper limit >4GHz
VCP50 Vertical coupling plate.
Mechanical dimension: 0.5 x
0.5 m
Application indirect ESD
discharge with contact tip.
