ESD3000-System
20/66
4.2 Interchange of discharge modules
Loose the screw 8 and pull the discharge module out.

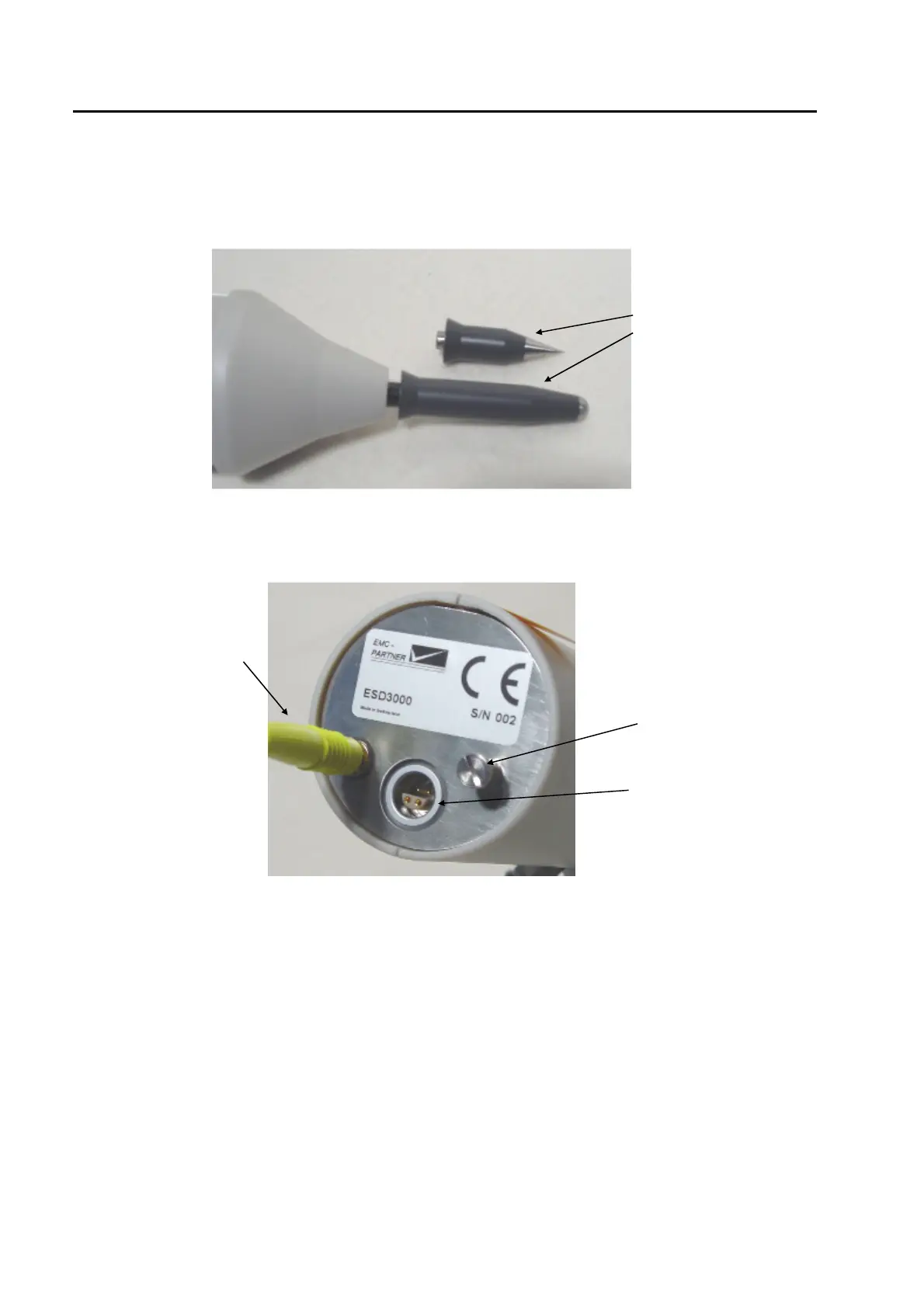

4.3 Interchange of the finger and tips
Pull out the finger and
insert the tip
CD = sharp tip
AD = finger electrode
4.4 Inputs and Outputs
The control of the ESD3000 is carried out by a microprocessor. The microprocessor controls the EMC tests,
stores the inputs of the numeric input terminal, updates the display, checks whether the inputs of the
operators are allowed values or not. The operator communicates with the ESD3000 via the input terminal
and the display.
This plate is reserved for the CE mark. The CE -mark is needed for the free movement of the goods into
and within European community.
Via this interface port, the ESD3000 can be also controlled by an external PC. To configure the interface,
see Chapter 13 „Remote Control“.
Ground connection 2 m
Screw holding the
battery module
Input for charging the
batteries, and RS232
input for remote control
