Table 2-8. COM3 (on SCB) RS-232 Port Connector Pin Assignment
Pin
RS-232
Signal RS-232 Description
1 DCD Data Carrier Detect Input
2 DSR Data Set Ready Input
3 RXD Receive Data input
4 RTS Request to Send Output
5 TXD Transmit Data Output
6 CTS Clear to Send Input
7 DTR Data Terminal Ready Output
8 GND Signal/Power Ground
Use the “null modem” cable for full-duplex (PPP protocol)
communications when connecting a ControlWave to a PC. (See top part
of Figure 2-12.)
Half-duplex
Cable
(for CW)
Full-duplex
(Null Modem)
Cable
(PPP Protocol)
P/N 392843-01-3
CW
9-Pin Female
“D” Connector
P2
CW or P
C
9-Pin Female
“D” Connector
P1
3 = TXD
6 = DSR
7 = RTS
8 = CTS
4 = DTR
2 = RXD
1 = DCD
5 = GND
3 = TXD
6 = DSR
7 = RTS
8 = CTS
4 = DTR
2 = RXD
1 = DCD
5 = GND
To P2 Pin-4
To P2 Pin-2
To P2 Pin-7
To P2 Pin-3
To P2 Pin-6
To P2 Pin-5
To P2 Pin-1
or
vice
versa
3 = TXD
6 = DSR
7 = RTS
8 = CTS
4 = DTR
2 = RXD
1 = DCD
5 = GND
3 = TXD
6 = DSR
7 = RTS
8 = CTS
4 = DTR
2 = RXD
1 = DCD
5 = GND
To P2 Pin-2
To P2 Pin-3
To P2 Pin-5
or
vice
versa
CW
9-Pin Female
“D” Connector
P2
CW
9-Pin Female
“D” Connector
P1

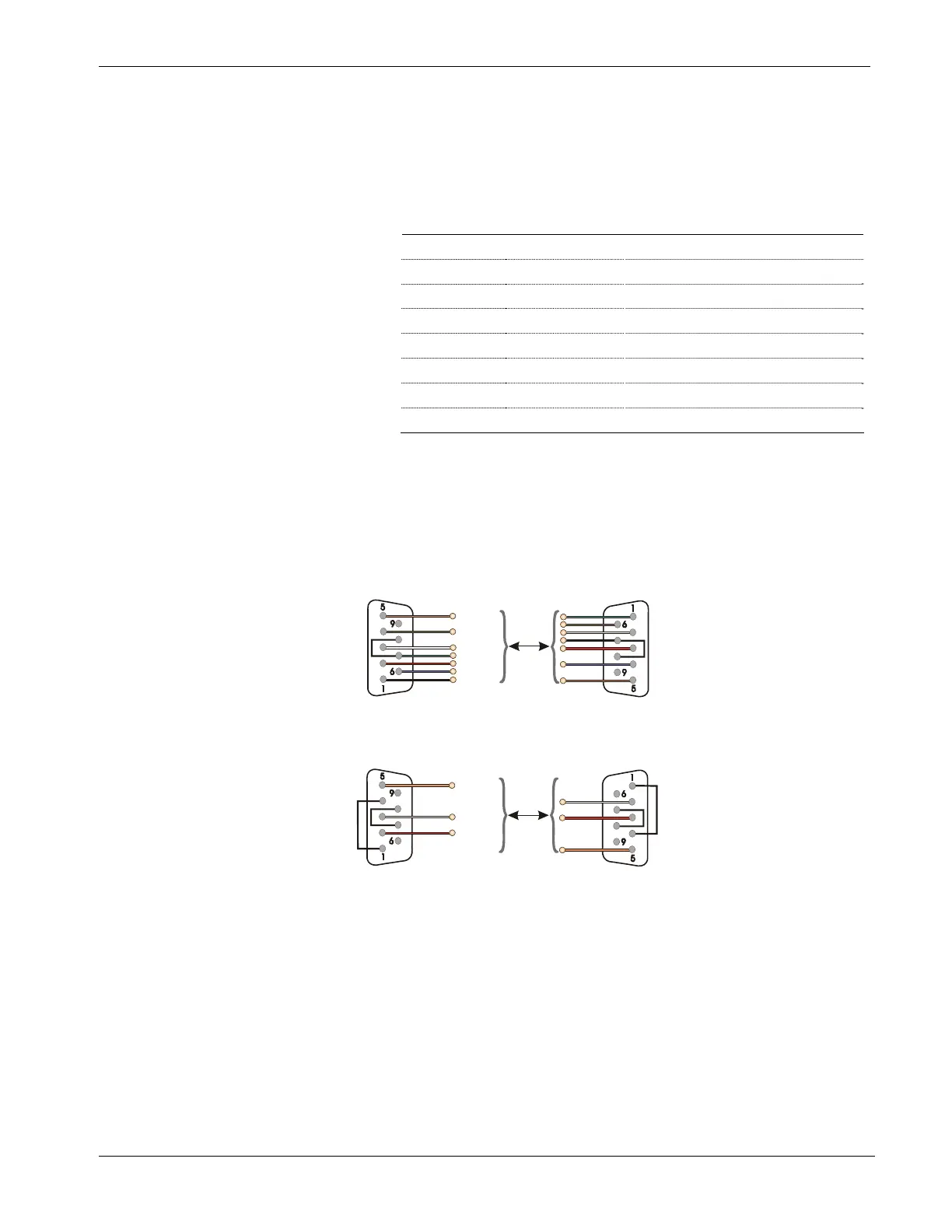

Figure 2-12. Full-duplex and Half-duplex Cable
Use the half-duplex cable (shown in the bottom part of Figure 2-12)
when connecting the ControlWave to another ControlWave series unit
(again, with the exception of the CW_10/30/35 units).
When communicating with a Network 3000 series RTU 3305, RTU
3310, DPC 3330, or DPC 3335 or CW_10/30/35, you must use one of
the cables shown in Figure 2-13.
Revised Nov-2010 Installation 2-25
