Introduction
6Emerson
®
MPH2
™
User Manual

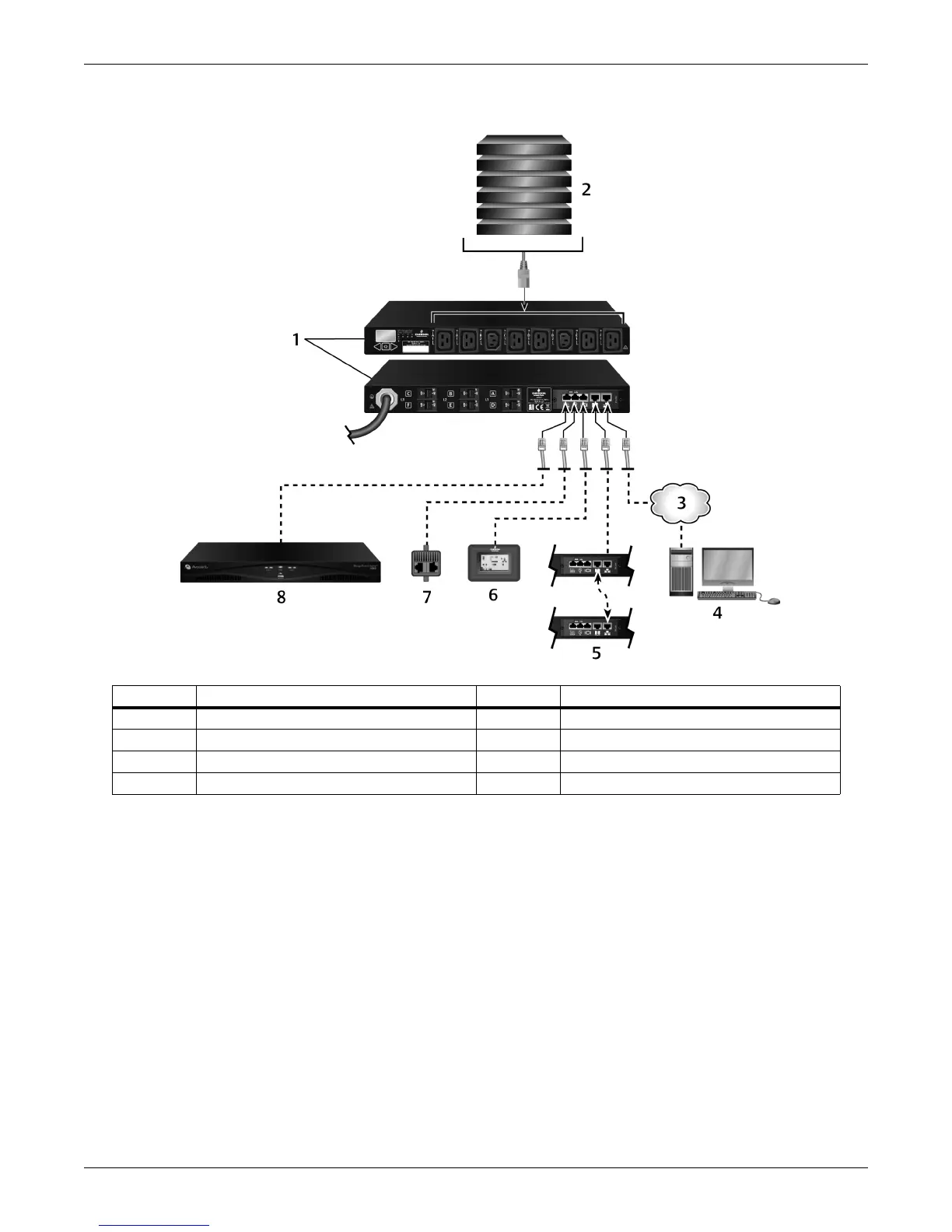

Figure 1-2 Horizontal MPH2 Rack PDU Configuration
1.1 General Characteristics
• Input ampacities include 16 A or 32 A for European Union versions and 12 A to 48 A for
North-American versions.
• Single-phase and three-phase.
• Input voltages include 100-120 VAC, 120/208 VAC, 200-240/415 VAC.
• Receptacle types include NEMA 5-20, IEC 60320 C13 and IEC 60320 C19
• Input connection supports a highly flexible fixed power cord or hard-wired connection to user
accessible terminal block.
Number Description Number Description
1 Horizontal MPH2 Rack PDU 5 Rack PDU array
2 Connected equipment 6 RPC basic display module (BDM)
3 Network connection (10 MB/100 MB/1 GB) 7 Sensors—integrated and modular
4 Monitoring station 8 Serial appliance
