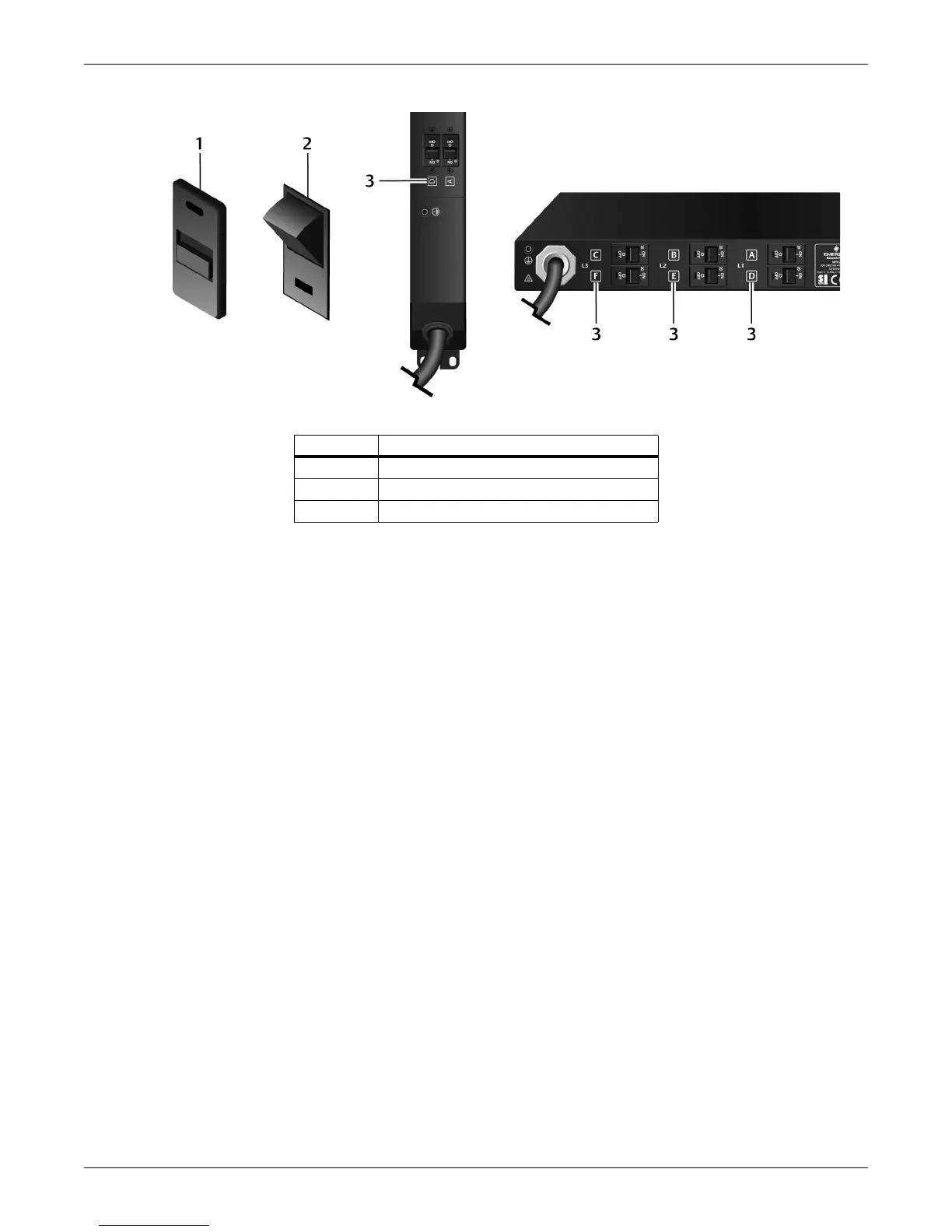

Figure 1-6 Circuit breaker branch identification
1.3.5 Hard-Wired Connection Features
Emerson’s MPH2 Rack PDU may be equipped with either a factory-installed input power cord or
hard-wired connections. The hard-wired connection will be at one end of the unit. A terminal block in the
hard-wired connection compartment is coded to aid in making the connections. A collar secures the input
wire, keeping the strain off the terminal block connections. See Figure 2-1.
Number Description
1 Low-profile circuit breaker
2 Standard-profile circuit breaker
3 Branch identification
