Emerson Network Power MPH2 User Manual

Installation
22 Emerson
®
MPH2
™
User Manual

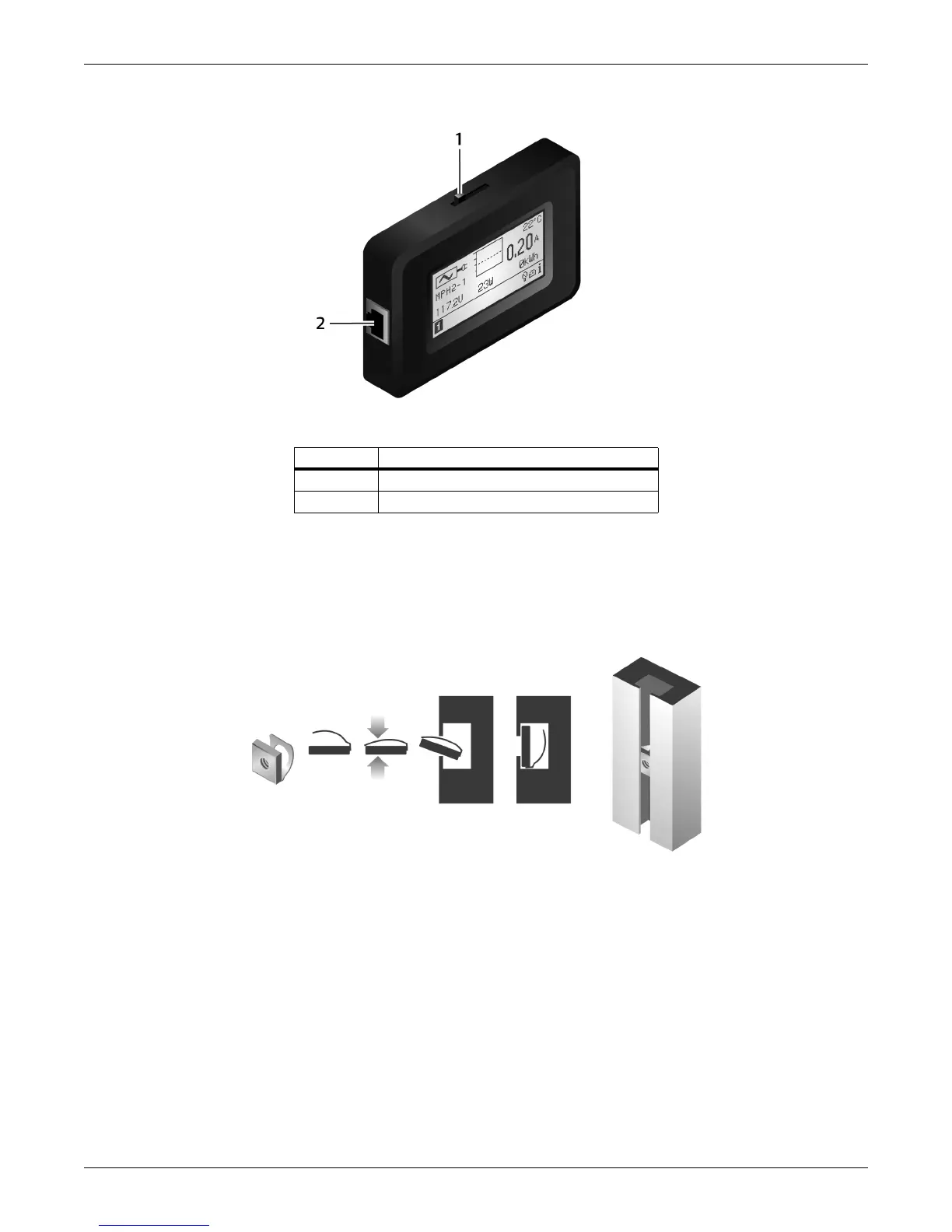

Figure 2-8 RPC BDM
To install an RPC BDM in a rack:
1. Determine the mounting location on the frame member where the RPC BDM will be installed.
2. Insert a spring nut into a T-slot and flip it so that it is square in the slot as shown in Figure 2-9.
Figure 2-9 Inserting the spring nut into a T-slot
3. Insert the MPH2 Rack PDU screw into the spacer sleeve.
4. Insert the MPH2 Rack PDU screw into the spring nut and tighten securely with a flat-head screwdriver.
5. Hang the RPC BDM on the screw with the hooded mounting slot on the back of the RPC BDM.
6. Connect the RPC BDM to the RPC2 with an Ethernet cable.
7. Be certain to connect the cable to the correct port on the RPC2.
Number Description
1 Scan switch
2 RJ-45 communication and power input port
