3.5 View Branch-level Information
1. At the input-level (main) screen, highlight the unit-identification number, , and press .
The branch letters display along the bottom-left, Figure 3-12.
2. Use the arrow keys to highlight the letter of the branch to view, and press .
Information about the selected branch displays, Figure 3-12.
• To display more details about the selected branch, highlight the information icon, , and press .
• To return to the previous level view, highlight and press .

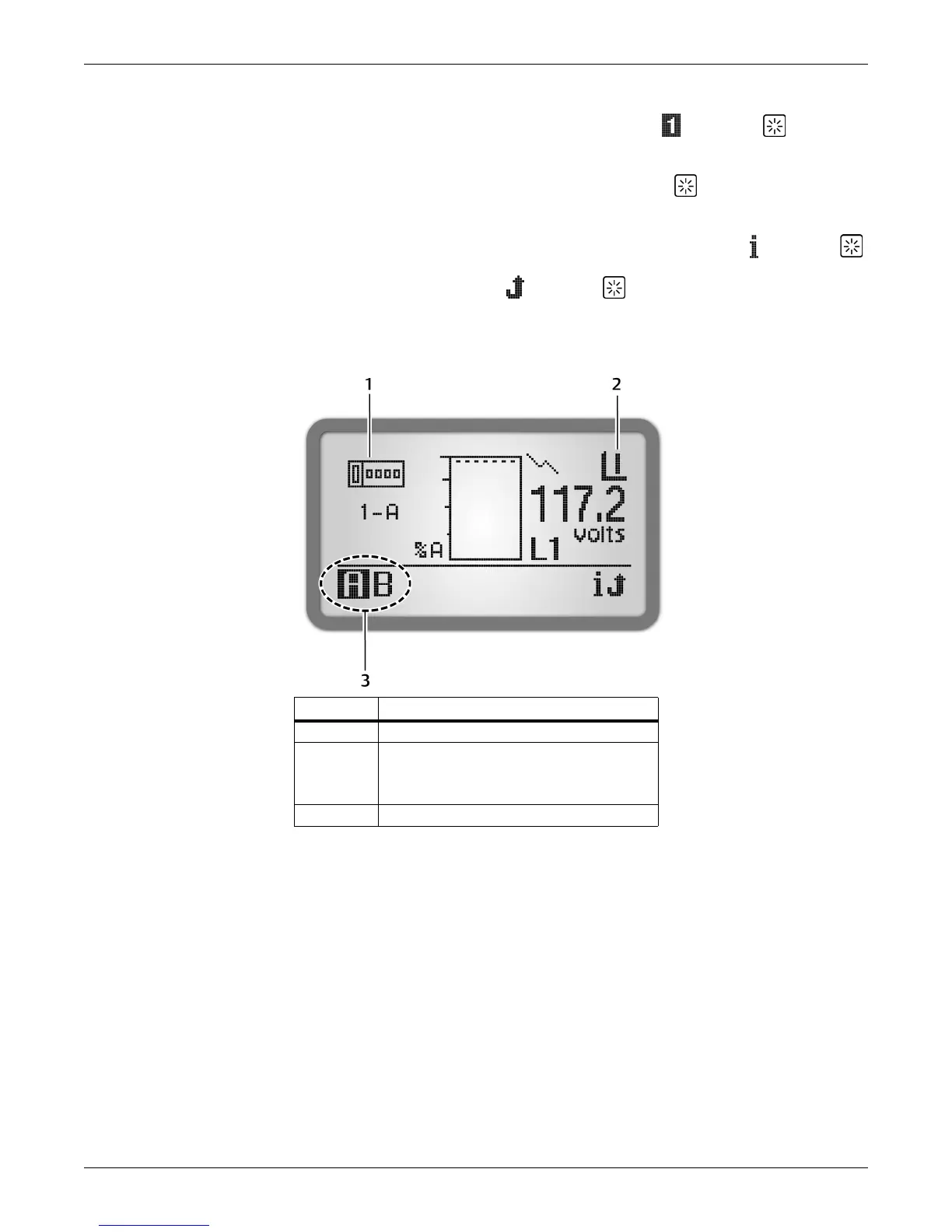

Figure 3-12 Branch information
Number Description
1 Branch-level information icon
2
Branch circuit-breaker status icon
I = closed circuit breaker
O = open circuit breaker
3 Branches (two shown, A and B)
To Next Page
