Emerson Network Power MPH2 - Figure 2-7 Rack Grounding-Strap Connection

Installation
Emerson
®
MPH2
™
User Manual 19

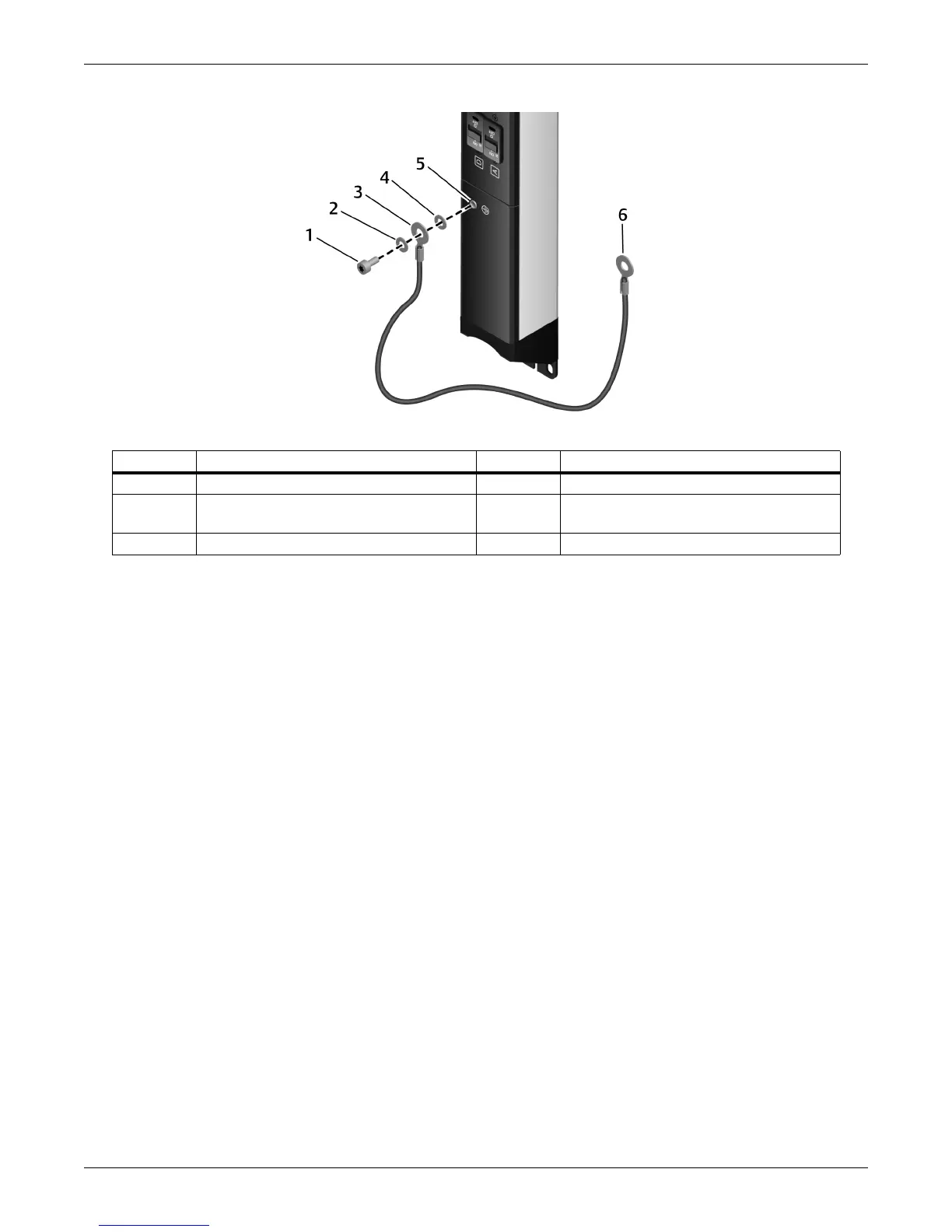

Figure 2-7 Rack grounding-strap connection
Number Description Number Description
1 Ground-wire connection screw, M6 x 12 4 Lock washer
2 Washer 5
Ground-wire connection on MPH2
(location may vary)
3 Ground-wire connector (to MPH2) 6 Ground-wire connector (to rack)
