1.2 Model Types
There are four types of MPH2 Rack PDU. All models provide power distribution and include input and
branch metering.
• Type B—Rack PDU metered: Provides metering of input and branches.
• Type C—Rack PDU metered, receptacle-switched: Provides metering of input and branches and
individual on/off control of each receptacle.
• Type M—Receptacle-metered: Provides metering of input, branches and receptacles.
• Type R—Receptacle-metered, receptacle-switched: Provides metering of input, branches and
receptacles. Provides individual on/off control of each receptacle.
1.3 Appearance and Components
1.3.1 Controls and Indicators—RPC2
™
The MPH2 Rack PDU is monitored and managed by the factory-installed RPC2 communications module.
This manual presents information about the MPH2’s functions and features. For details on operating the
MPH2 through the RPC2 communications module, refer to the RPC2 user manual, SL-20841. The
document is available at Emerson’s Web site: http://www.emersonnetworkpower.com
The RPC2 is installed near the middle of the MPH2 Rack PDU. The central location eases connections
whichever orientation is required for network cabling.
The RPC2’s Web-based interface provides system-operating measurements, sensor readings (optional)
and basic unit information including firmware version, unit rating, model number and serial number.

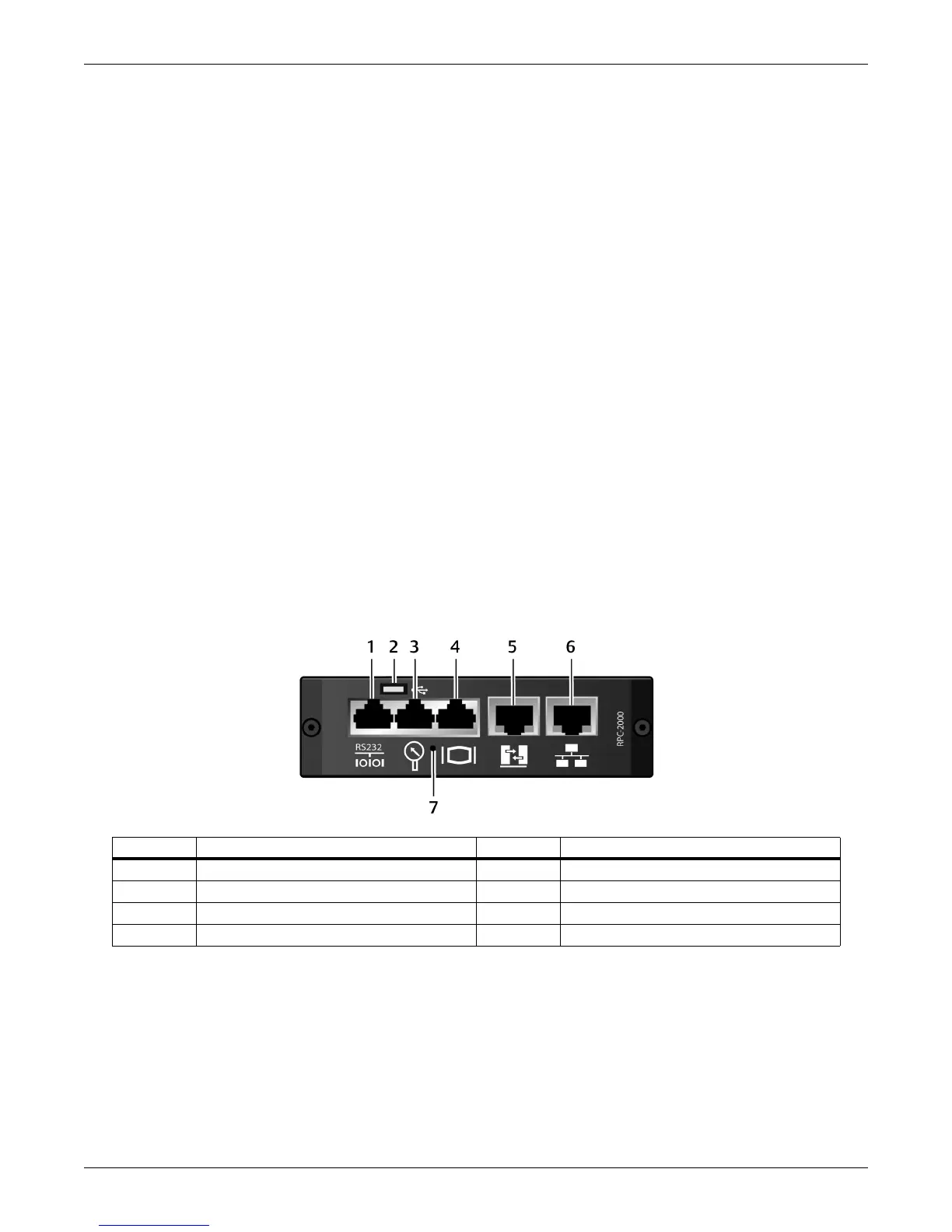

Figure 1-3 MPH2 major monitoring and management features
Number Description Number Description
1 Serial port 5 Array link/management port
2USB port 6Network port
3 Sensor port 7 Access to Reset button
4 Display port
