3.3.5 Adjust the Contrast of the On-board LCD
The on-board LCD is factory-set to be easily viewed in lighting conditions found in most work places. The
contrast can be changed.
1. Press any key to activate the LCD.
2. Use the arrow keys to highlight the information icon, , and press
3. Use the arrow keys to highlight the contrast icon, , and press .
4. Use the arrow keys to highlight an up/down arrow, and press to increase or decrease contrast.
Refer to the pattern, Figure 3-10, to determine when the contrast is acceptable.
5. When the contrast is satisfactory, highlight and press to return to the system-information
screen.

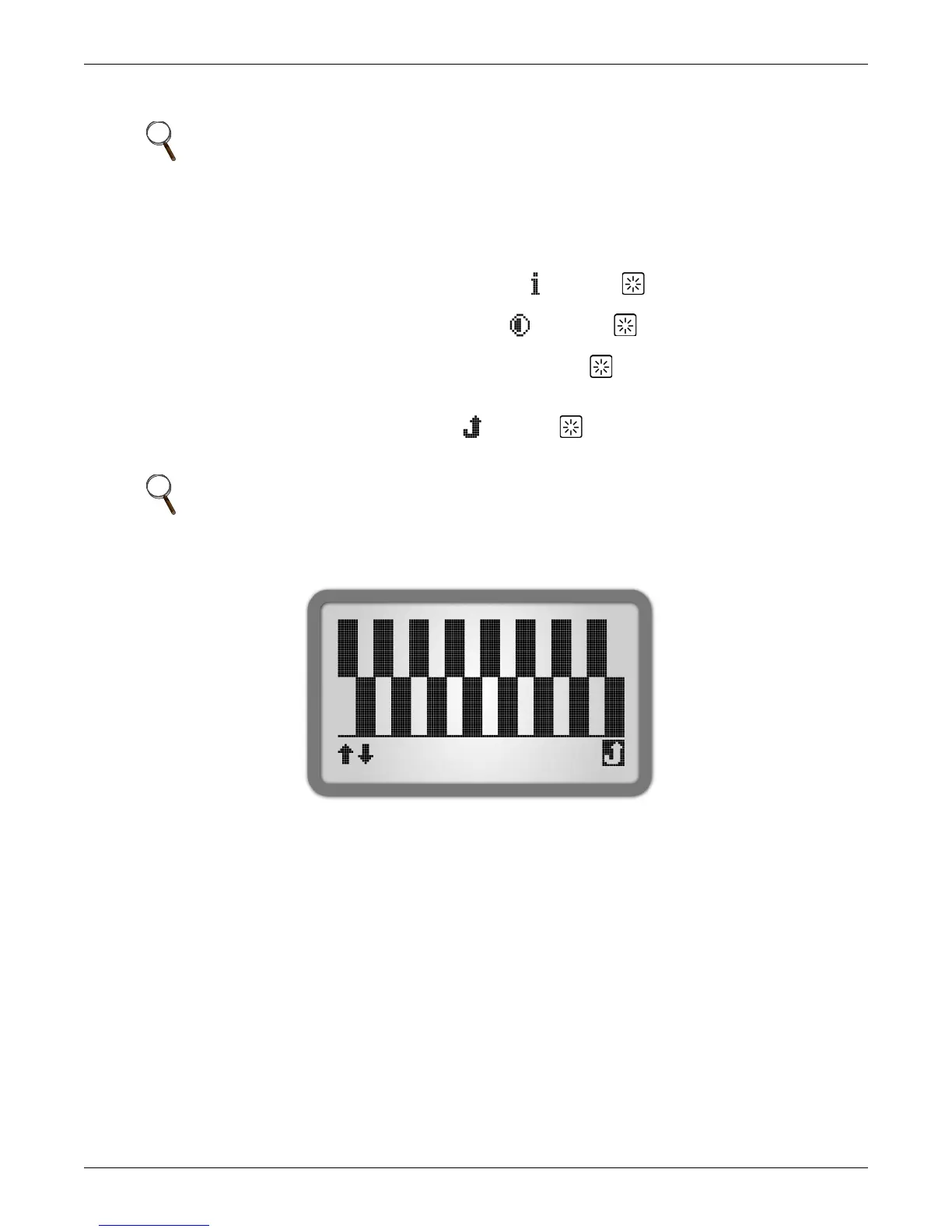

Figure 3-10 Adjust LCD contrast
NOTE
Contrast adjustment may help improve LCD-screen legibility in a
high-temperature environment.
NOTE
These steps also apply to the RPC BDM.
