Proline Prosonic Flow 93T Portable Installation
Endress+Hauser 23
3.7 Installing Prosonic Flow P (DN 15 to 65 / ½ to 2½")
3.7.1 Mounting the sensor
Prerequisites
• The sensor holder is already mounted  ä 16.
• The distance of the sensor holder is set (sensor distance)  ä 13.
Material
The following material is needed for mounting:
•Sensor
• Connecting cable
!
Note!
Prior to mounting, connect the connecting cables to the sensors.
Procedure

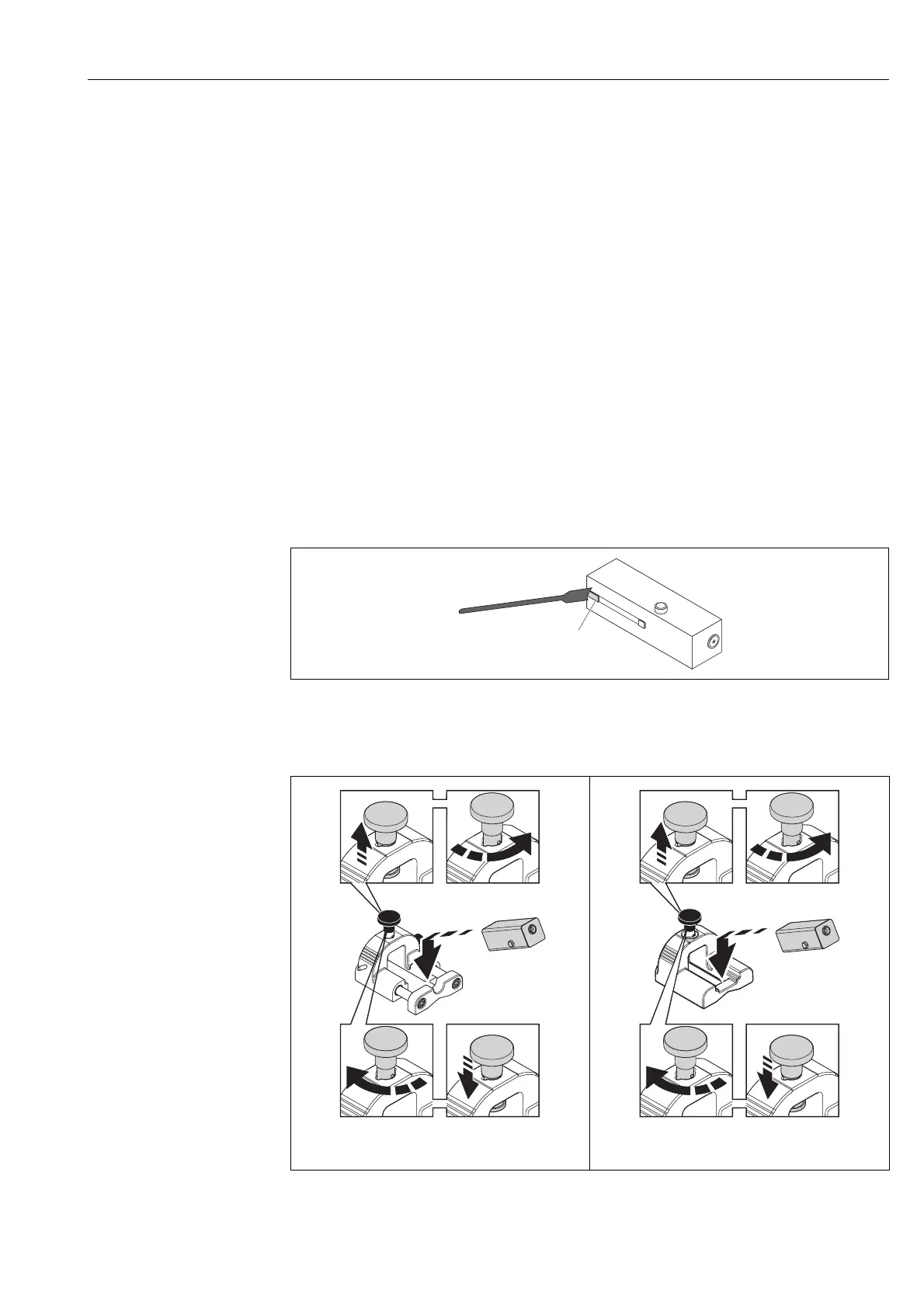

1. Coat the contact surfaces (1) of the sensors with an even layer of coupling fluid
approx. 1 mm (0.04") thick.
A0013624
Fig. 19: Coating with coupling fluid
2. Mount as illustrated in the graphic (steps 1 to 5):
This completes the mounting process. The sensors can now be connected to the transmitter via the
connecting cables  ä 31.
1
A0011552
Fig. 20: Mounting the sensors,
Sensor holder: Model 1
A0013551
Fig. 21: Mounting the sensors,
Sensor holder: Model 2
12
3
4 5
12
3
4 5
