Installation Proline Prosonic Flow 93T Portable
30 Endress+Hauser
3.10.2 Method 2
Measuring the wall thickness on pipes DN 50 to 4000 (2 to 160").
1. Coat the contact surface of the sensor with an even layer of coupling fluid
approx. 1 mm (0.04") thick.
2. Hold the sensor by hand on the pipe for measurement. Be sure that the horizontal line on the
sensor contact surface is parallel to the axis of the pipe.

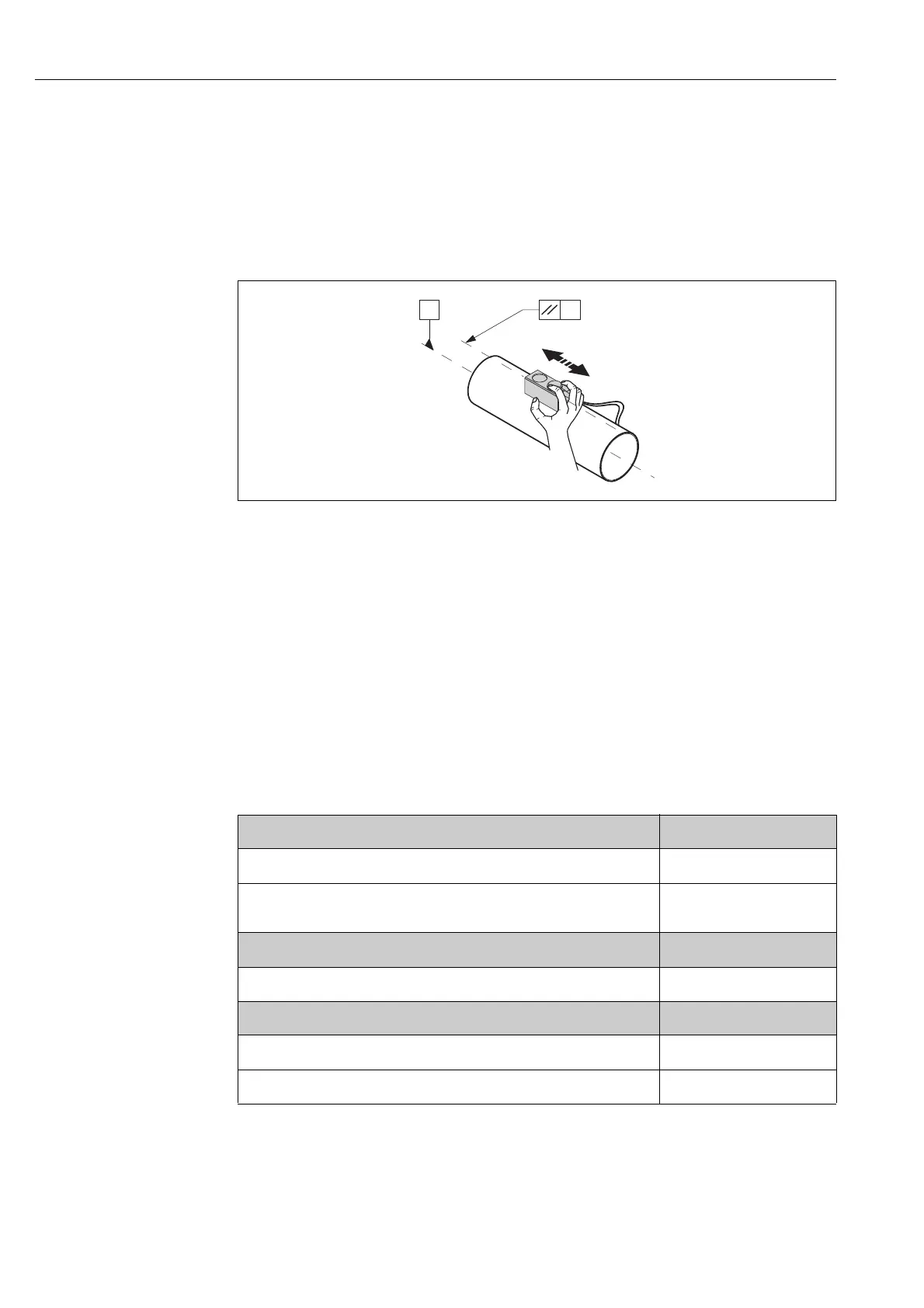

A0013523
Fig. 35: Measuring the wall thickness
3. The sensor can now be connected to the 93T transmitter via the connecting cables.
!
Note!
The polarity of the connections to the 93T transmitter is not important for wall thickness
measurement.
If flow sensors are to be installed after the wall thickness measurement is made, be sure to clean the
pipe surface once again.
3.11 Post-installation check
Perform the following checks after installing the measuring device on the pipe:
Device condition and specifications Notes
Is the cable or the device damaged (visual inspection)? –
Does the device correspond to specifications at the measuring point, including
process temperature, ambient temperature, measuring range, etc.?
ä 61
Installation Notes
Are the measuring point number and labeling correct (visual inspection)? –
Process environment / process conditions Notes
Have the inlet and outlet runs been observed? ä 11
Is the measuring device protected against moisture and direct sunlight? –
