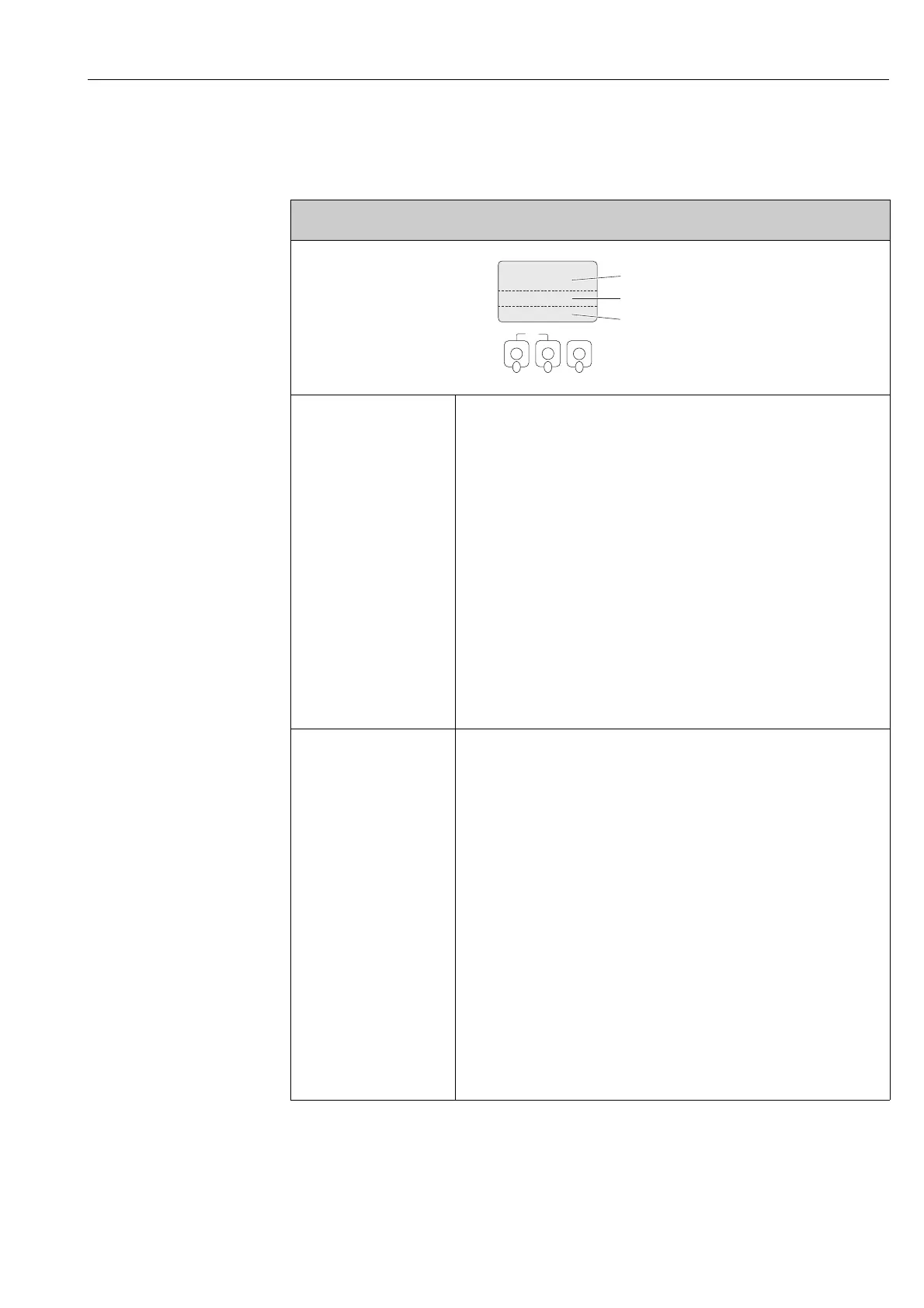

11.5.3 Group ADDITIONAL LINE
Function group CONFIGURATION
Functional description
USER INTERFACE ADDITIONAL LINE CONFIGURATION
1 = Main line
2 = Additional line
3 = Information line
A0001253
ASSIGN
(2400)
Use this function to define the display value assigned to the additional line (the middle
line of the local display) during normal measuring operation.
Options
OFF
VOLUME FLOW (CH1)
VOLUME FLOW IN % (CH1)
SOUND VELOCITY (CH1)
SIGNAL STRENGTH (CH1)
FLOW VELOCITY (CH1)
VOLUME FLOW BARGRAPH IN % (CH1)
SIGNAL BARGRAPH IN % (CH1)
ACTUAL CURRENT 1
TOTALIZER (1 to 3)
FLOW DIRECTION
ACCUMULATED CHARGE
ACTUAL CURRENT INPUT
VOLUME FLOW DEVICE 2
Factory setting
TOTALIZER 1
100% VALUE
(2401)
!
Note!
This function is not available unless VOLUME FLOW IN % was selected in the ASSIGN
function (2400).
• VOLUME FLOW IN % (CH1)
• VOLUME FLOW BARGRAPH IN % (CH1)
• SIGNAL BARGRAPH IN % (CH1)
Use this function to define the flow value to be shown on the display as the 100%
value.
User input
5-digit floating-point number
Factory setting
Depends on nominal diameter and country, [value] / [dm
3
to m
3
or US-gal to US-Mgal]
Corresponds to the factory setting for the full scale value ( ä 118).
Esc
E
+
-
1
2
3
