Installation Proline Prosonic Flow 93T Portable
16 Endress+Hauser
3.6.1 Mounting the sensor holder
• Sensor: Prosonic Flow (DN 15 to 65 / ½ to 2½")
• Sensor holder: Model 1 or 2
Model 1
1. Set the sensor distance determined (e.g. A19) on the sensor holder.
– Release the screws of the sensor holders.
– Position the sensor holders with the aid of the mounting rail.
– Tighten the screws of the sensor holders again.
A0011548

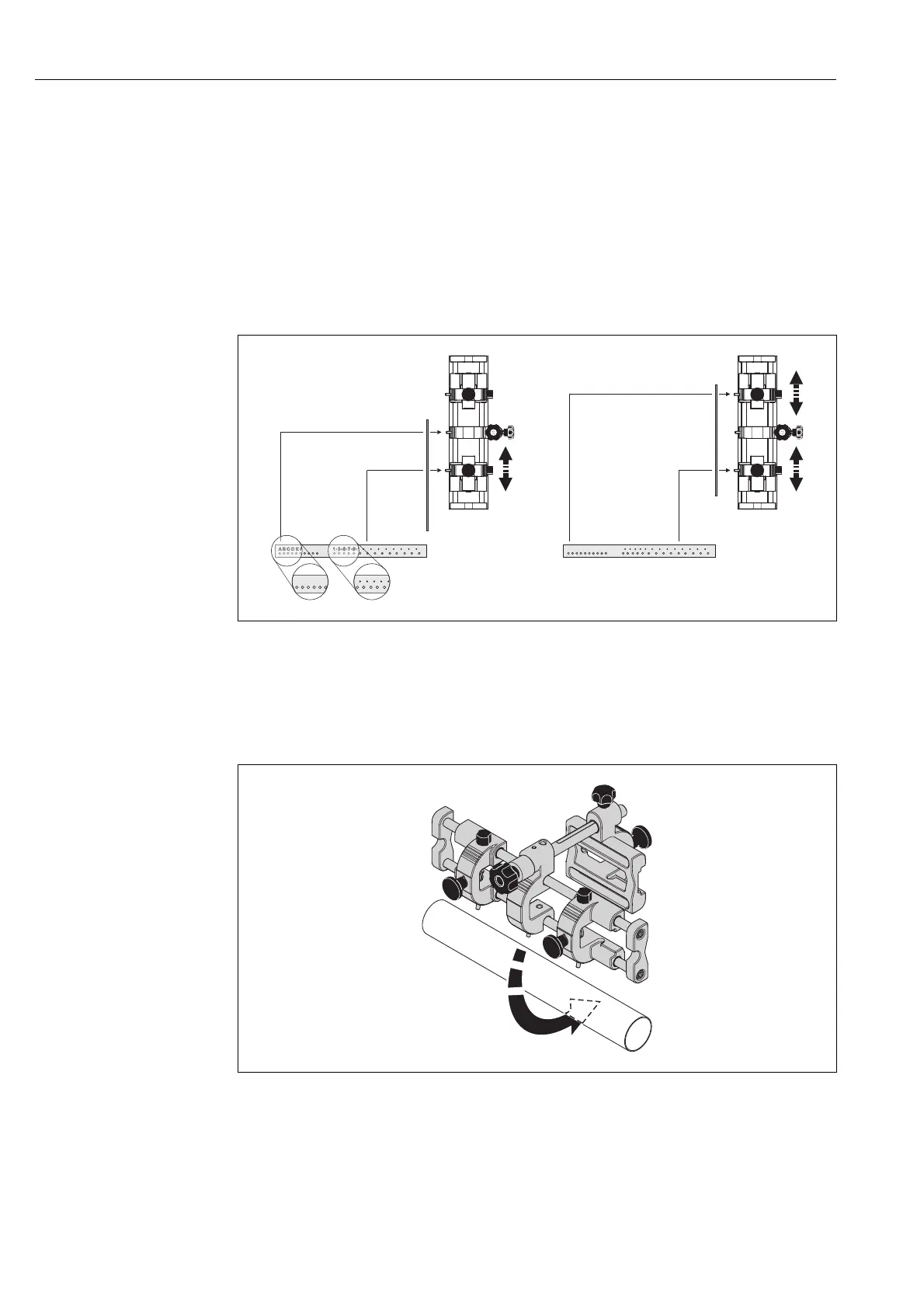

Fig. 8: Setting the sensor distance with the mounting rail (value from POSITION SENSOR function)
A Sensor distance for measurement via one traverse
B Sensor distance for measurement via two traverses
2. Guide the sensor holder over the pipe.
A0011549
Fig. 9: Setting the sensor holder on the pipe
ABCDEFGHIK 13579111315171921232527 ABCDEFGHIK 13579111315171921232527
A
B
ABCDEF 13579
