3. Release the screw of the retaining bracket (a) and push the retaining bracket up against the
pipe.
A0011550

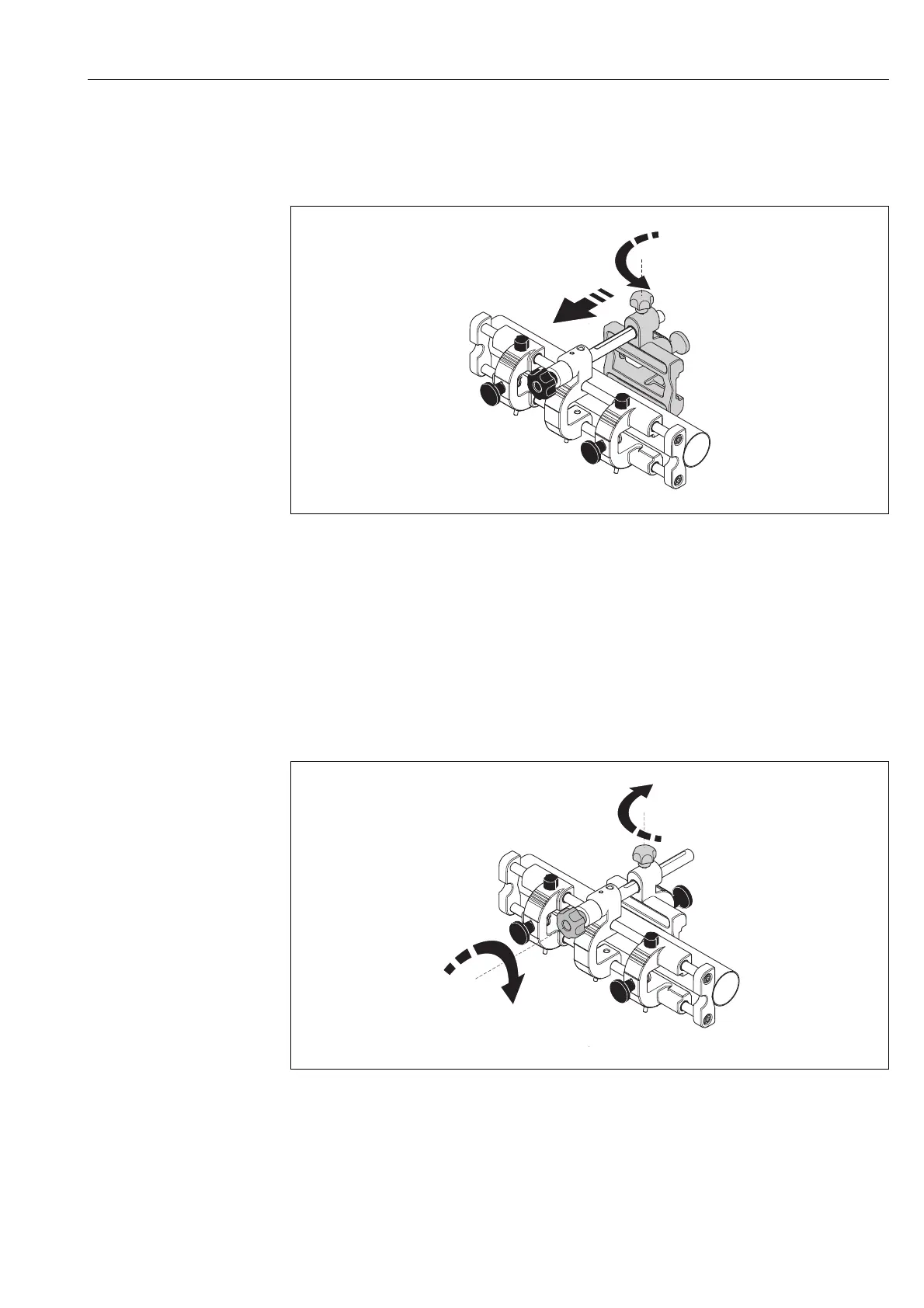

Fig. 10: Guiding the retaining bracket onto the pipe
aScrew of retaining bracket
4. Fix the sensor holder in place by:
– Tightening the screw of the retaining bracket (a)
– Tightening the tensioning screw (b)
#
Warning!
Risk of damaging plastic or glass pipes if the screws are tightened too much! The use of a metal
half-shell is recommended (on the opposite side of the tensioning screw) when working with
plastic or glass pipes.
A0011551
Fig. 11: Fixing the sensor holder
aScrew of retaining bracket
b Tensioning screw
a
a
b
