Endress+Hauser Proline Prosonic Flow 93T Portable User Manual

Installation Proline Prosonic Flow 93T Portable
18 Endress+Hauser
Model 2
1. Set the sensor distance determined (e.g. C9) on the sensor holder.
– Position the sensor holders with the aid of the mounting rail.
A0013546

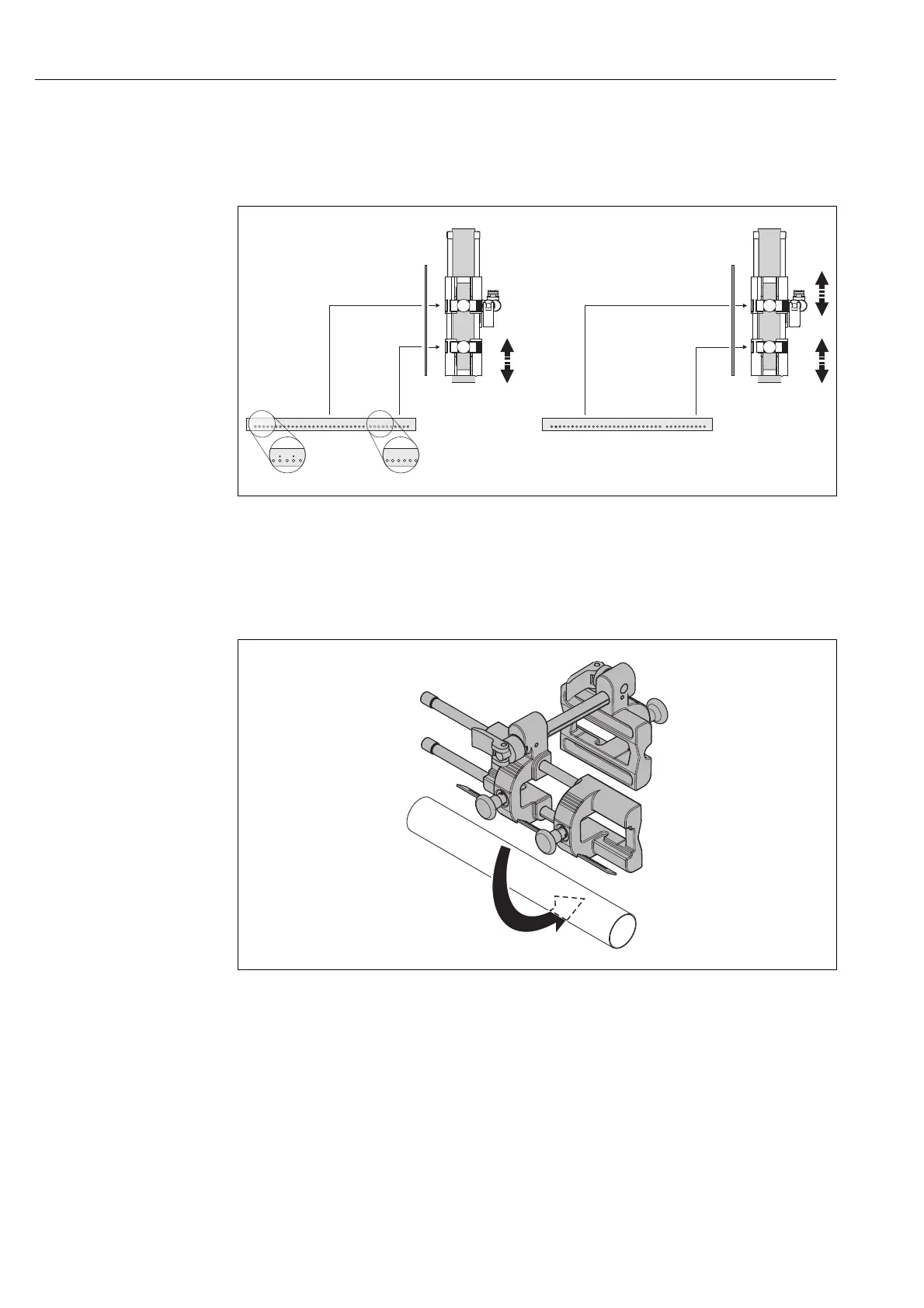

Fig. 12: Setting the sensor distance with the mounting rail (value from POSITION SENSOR function)
A Sensor distance for measurement via one traverse
B Sensor distance for measurement via two traverses
2. Guide the sensor holder over the pipe.
A0013542
Fig. 13: Setting the sensor holder on the pipe
A
B
KIHGFE
KIHGFE DC B A
27 25 23
27. 25. 23. 21. 19. 17 .15 . 13 . 11 . 9 . 7 . 5 . 3 . 1 KIHGFEDCBA27. 25. 23. 21. 19. 17 .15 . 13 . 11 . 9 . 7 . 5 . 3 . 1
