Proline Prosonic Flow 93T Portable Installation
Endress+Hauser 19
3. Release the quick release of the retaining bracket (a) and push the retaining bracket up against
the pipe.
A0013543

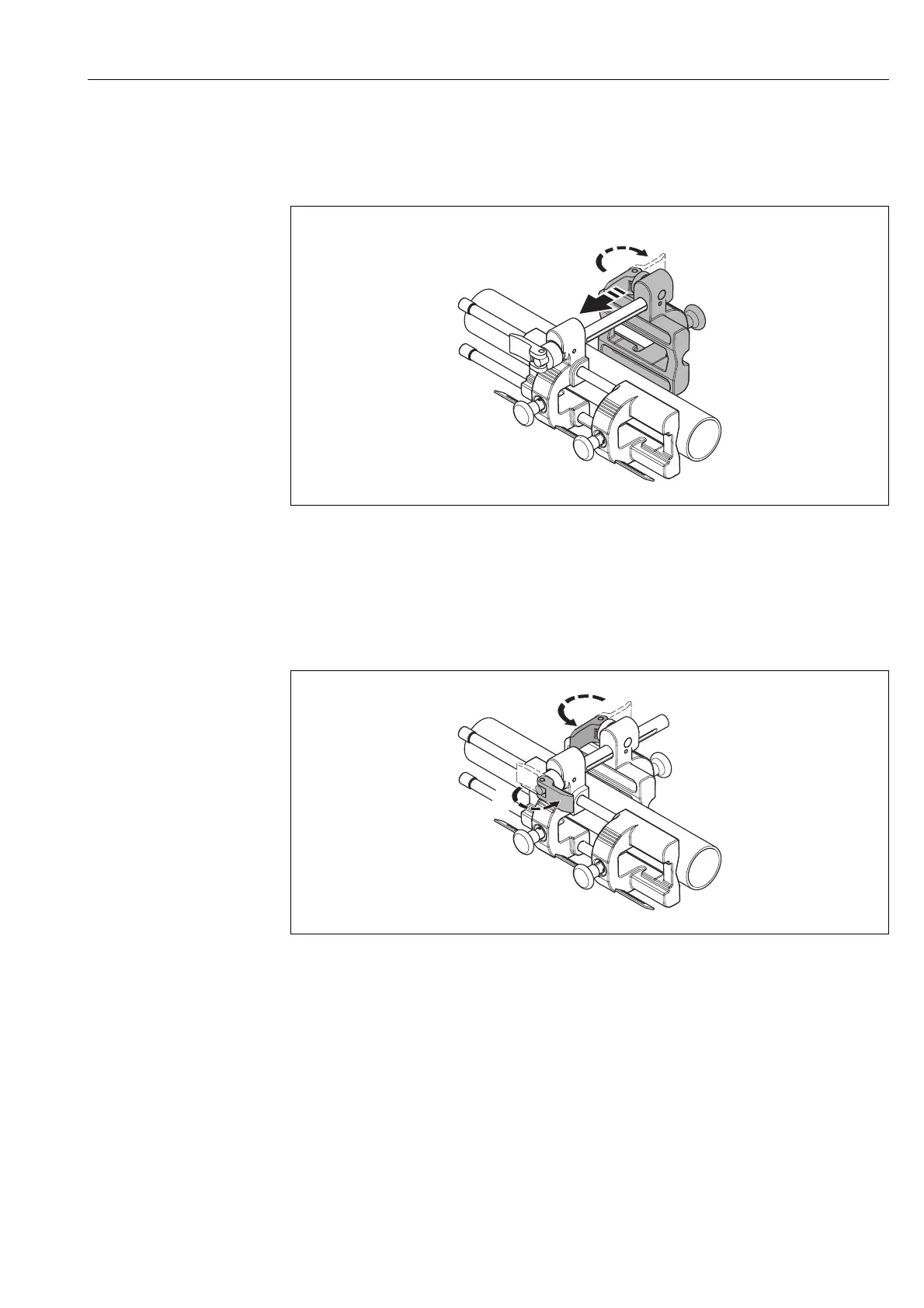

Fig. 14: Guiding the retaining bracket onto the pipe
a Quick release of retaining bracket
4. Fix the sensor holder in place by:
– Tightening the quick release of the retaining bracket (a)
– Tightening the quick release (b)
A0013544
Fig. 15: Fixing the sensor holder
a Quick release of retaining bracket
b Quick release
a
a
b
