INSTALLATION
5. Installation 5.2 Minimum Spacing
The specified minimum distances ensure barrier-free access
for operation and for maintenance and repair work. Further-
more, this ensures optimum ventilation of the ECC 320 and
free access to the side service door.
• The distance to the rear must be at least 500 mm.
• The lateral distance must be at least 800 mm.
• The distance to the front must be at least 1,250 mm.
When installing the ECC 320, observe the required position of the ope-
rating display. According to the product standard, the
display must be located at a height of approximately 1.5 meters from
the oor to ensure accessible operation.
ATTENTION

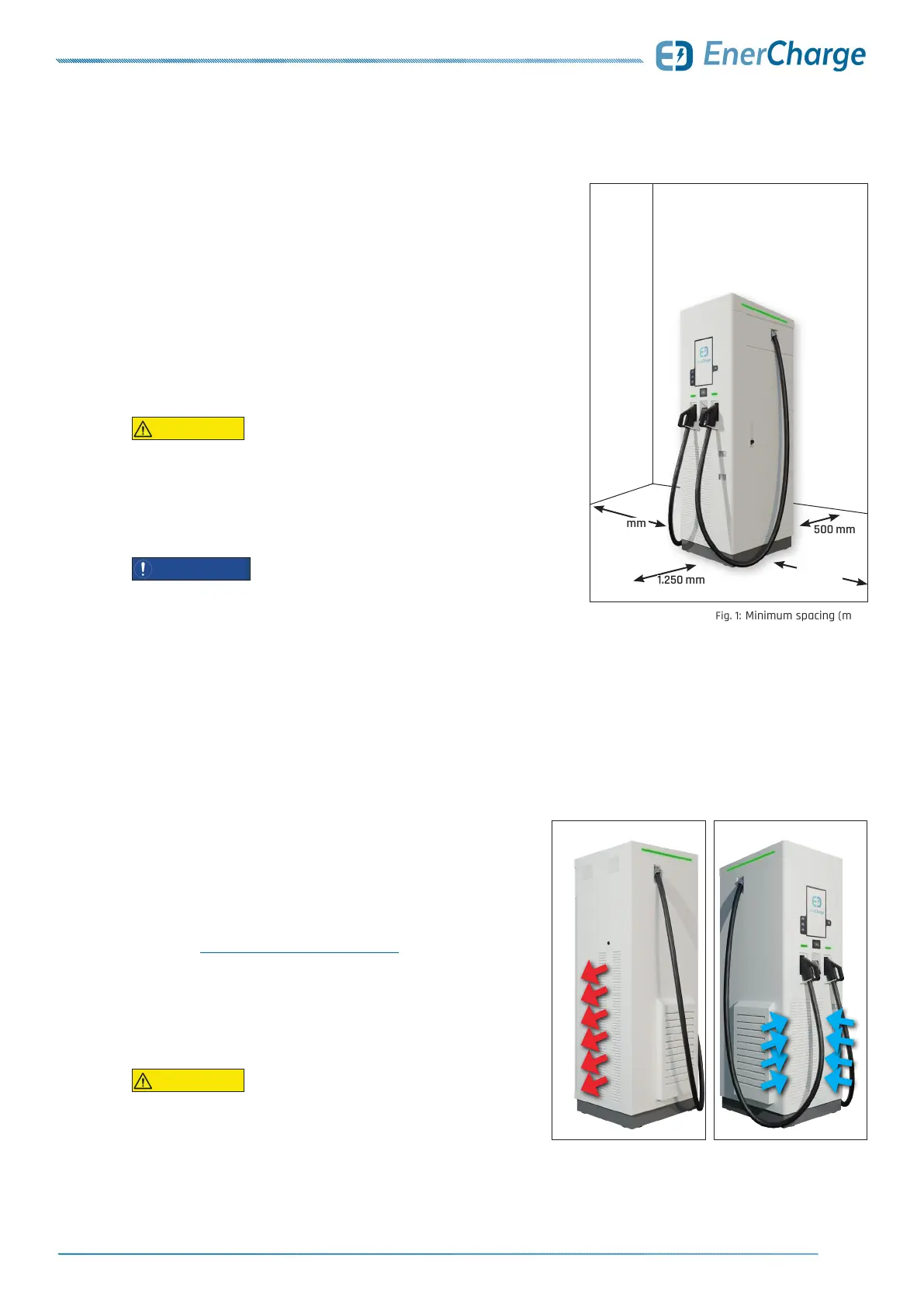

Fig. 1: Minimum spacing (mm).
5.2.1 Ventilation ECC 320
Fig. 2: Air inlet
Fig. 3: Air outlet
The ECC 320 has an air outlet (back) and air inlets (front
and left side, viewing direction display-front).
For proper function:
• the specified minimum distances must be adhered to -
see „5.2 Minimum Spacing“ on page 11.
• the ventilation grids must be clean and free of foreign
bodies such as leaves.
800 mm
500 mm
1.250 mm
800 mm
CAUTION
If the minimum distances are not observed, the ECC 320 may overheat
due to insucient ventilation. This will result in damage to the device.
• The specied minimum distances to other objects
(e.g. walls) must be observed.
Damage due to insufficient ventilation
CAUTION
Contamination of the air inlets and/or the air outlets can lead to insuf-
cient ventilation. As a result, the ECC 320 may overheat. This leads to
damage to the device.
• Keep air inlets and outlets clean and make sure they are free of snow
and leaves and other materials.
Overheating due to contamination
