Manual: Transport, Installation and Start-Up: DC CompactCharger ECC 320 ©EnerCharge GmbH
INSTALLATION
5.8 Opening and Closing the ECC 320
The ECC 320 has a PHZ multi-point lock on the right side (viewing direction
of the operating display). For opening and closing, please note:
> Locate the key opening (see FigFig. 16).
• Slide the cover of the lock upwards.
• Insert the key.
> Pull the charging cable in front of the service door to the side.
> To open the service door, turn the key 45 degrees clockwise.
• Turn the lever counterclockwise.
> To close the service door, turn the key counter-clockwise.
• Press the lever into the holder.
> If the service door is opened by more than 90 degrees, the door locking rail is activated. This
blocks the service door and prevents it from closing unintentionally.
> To release the lock, press the locking rail upwards. This can be done by hand or also by foot.
> After releasing the locking rail, the service door can be closed (see FigFig. 19).
CAUTION
The service door has a 3-way lock. An unlocked service door represents a high
safety risk, as unauthorized persons have access to the inside of the ECC 320. The
consequences in the event of an unlocked service door could be life-threatening.
• Always lock the service door of the ECC 320.
• The key must be accessible only to authorized persons.
Unversperrte Service-Türe

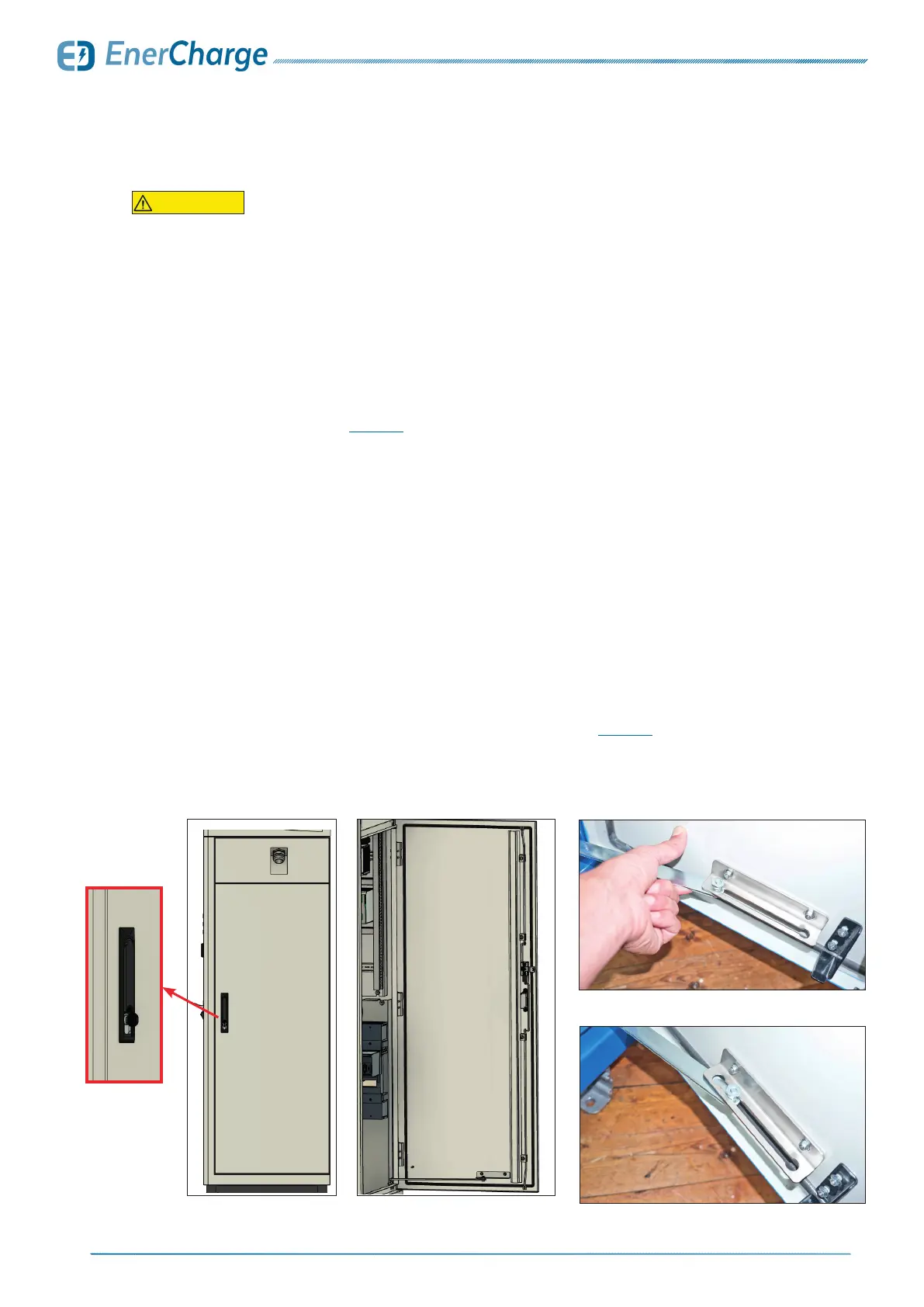

Fig. 16: Service door lock
Fig. 17: Opened service door
Fig. 18: releasing the locking rail
Fig. 19: released locking rail
