WIRING DIAGRAMS ECC 320
ECC 320
ECC 320

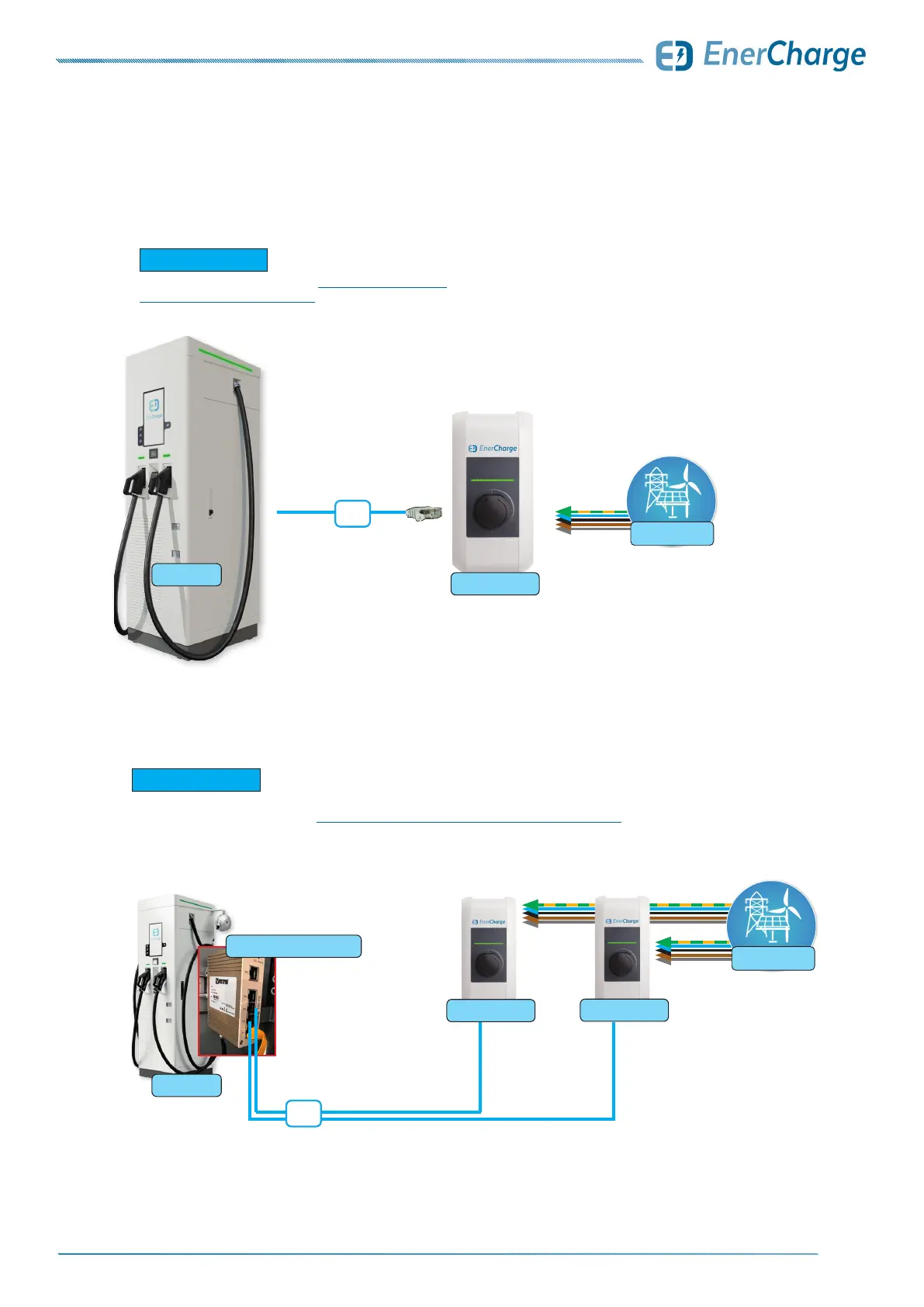

6.1 Connection of KEBA Wallbox
As an option (optional equipment) you can connect AC wallboxes of the type KEBA
to the ECC 320.
For the detailed connection, see „7.8 Optional: Connecting
a Wallbox via Ethernet“ on page 31.
G INFORMATION
RJ45
CAT.6
KEBA Wallbox 1
6.1.1 Connection of multiple KEBA Wallboxes
KEBA Wallbox 1
KEBA Wallbox 2
When connecting several eBike chargers or KEBA wallboxes, an internal network switch is installed at the
factory (special equipment). See: „7.8 Optional: Connecting a Wallbox via Ethernet“ on page 31.
G INFORMATION
RJ45
CAT.6
Internal network switch
Energy supplier
Energy supplier
