EnerCharge ECC 320 - Electrical Connection of ECC 320

28
Manual: Transport, Installation and Start-Up: DC CompactCharger ECC 320 ©EnerCharge GmbH
ELECTRICAL INSTALLATION ECC 320
7.7 Electrical Connection of ECC 320
2
2a
AC main supply line: PEN
Connection 4-pole (TN-C)
AC main supply line: PE and N
Connection 5-pole (TN-S)
1
AC main supply line: L1/L2/L3
3
LAN connection (WAN)
1
1
Overview of the electrical connections to be made when installing the ECC 320.
The procedure is explained in detail in the following sections.

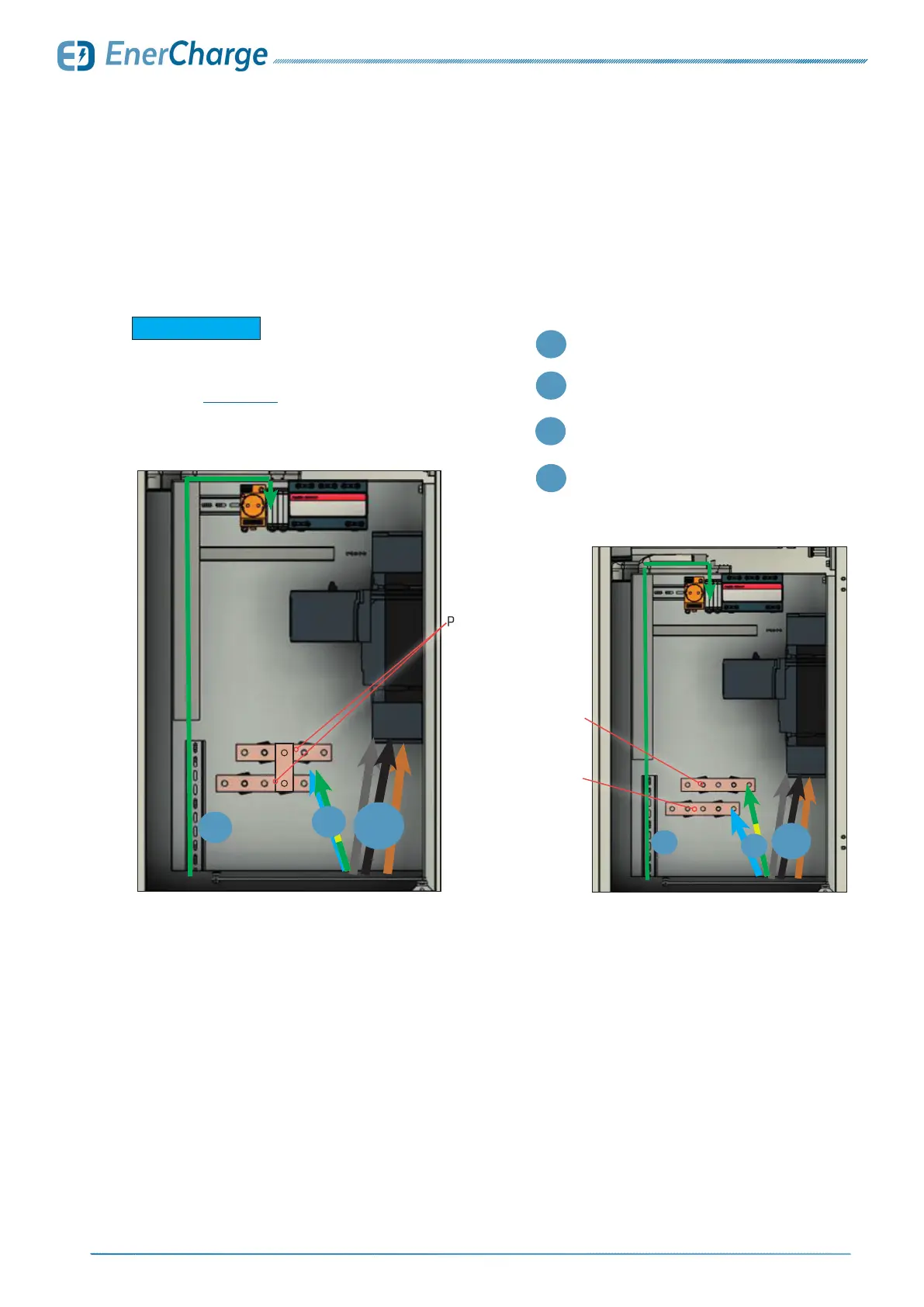

Fig. 29: overview of electrical installation ECC 320 - TN-C (4-pole)
Fig. 30: overview of electrical installation ECC 320 - TN-S (5-pole)
7.7.1 Overview of the Electrical Connection for the ECC 320
3
3
G INFORMATION
Depending on the national regulations of the country
of installation, the AC supply line (400 V) is connected
according to TN-S (5-pole) or TN-C system (4-pole). See
additionally: 7.3 on page 23.
PEN-rail
PE-rail
N-rail
2a
2
