Manual: Transport, Installation and Start-Up: DC CompactCharger ECC 320 ©EnerCharge GmbH
ELECTRICAL INSTALLATION ECC 320

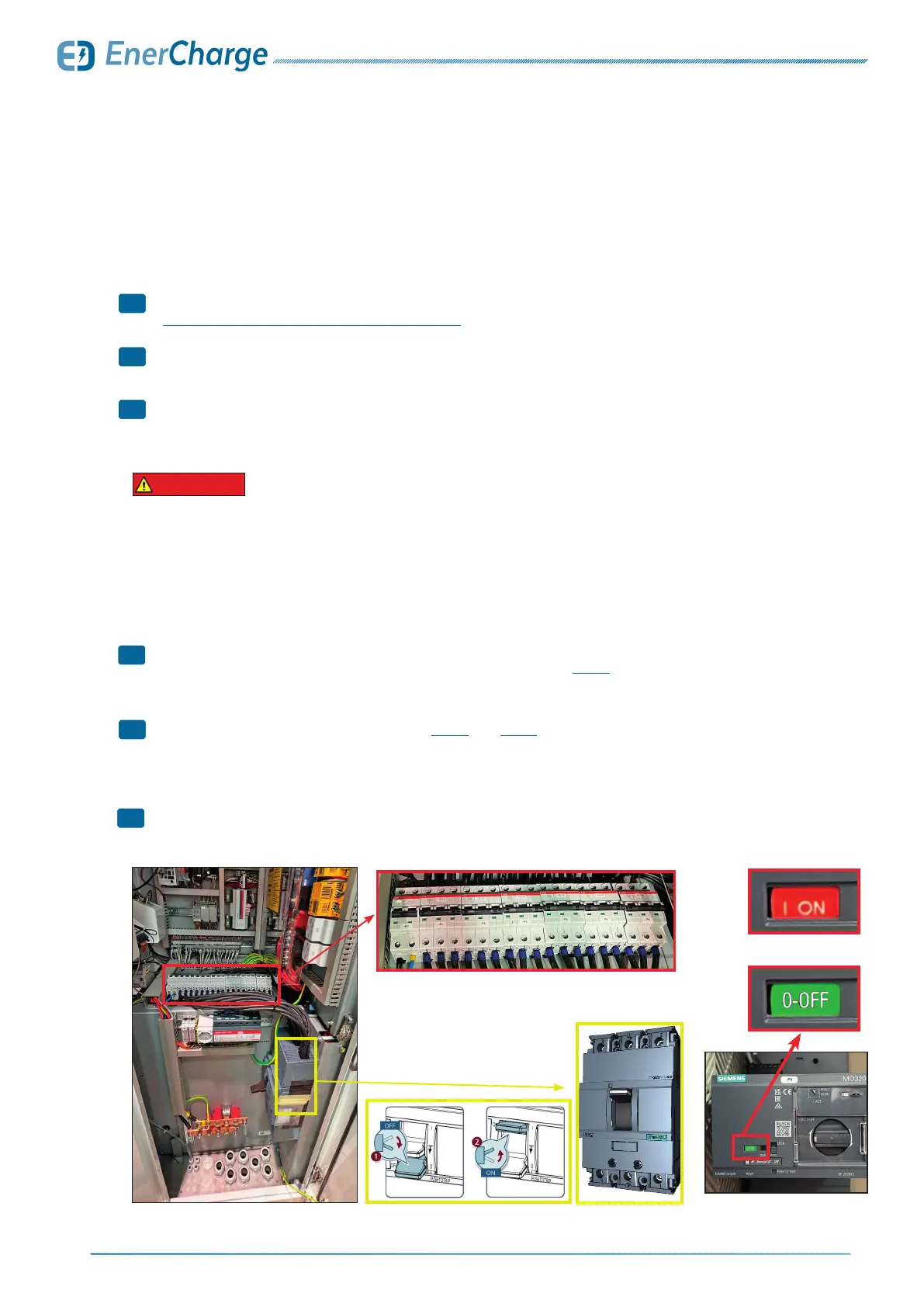

7.5 Disconnect the ECC 320 from the Power Supply
> Open the service door:
„5.8 Opening and Closing the ECC 320“ on page 18.
> Locate all line/ground fault circuit breakers
inside the ECC 320.
> Switch all toggle levers of the line/earth leakage circuit breakers to
the "OFF" position.
Turn off the fuse-switch disconnector:
• Move the lever of the switch disconnector to the "OFF" position: see Fig. 22.
• For motor-driven switch disconnector option, proceed to step "5".
> For motorized fuse-switch disconnector (Fig. 26 and Fig. 27):
• Green viewing window with writing "0-OFF" = load-break switch deactivated
• Red window with "1-ON" = load-break switch activated:
Contact customer service immediately!
> ECC 320 successfully de-energized.
1
2
3
4
>
If the fuse switch-disconnector is not deactivated, the inside of the ECC 320
may be live. This can result in electric shock, burns or death.
• Make sure that the lever of the fuse switch disconnector is
in the "OFF" position.
• After switching off the fuse switch disconnector, wait at least 10 minutes
until there is no more residual charge.
Danger to life due to electric shock!
DANGER
Before electrical installation, make sure that all line/earth leakage circuit breakers inside
the ECC 320 are in the "OFF" position. Move the lever of the fuse switch disconnector to the
"OFF" position. To do this, observe the following procedure:
Fig. 23: Line/fault-current circuit breakers
Fig. 24: fuse-switch disconnector
Fig. 25: Opened service door
ON
OFF
Fig. 26: Motorized fuse-switch
disconnector
Fig. 27:OFF/ON viewing
window
5
