15
Manual: Transport, Installation and Start-Up: DC CompactCharger ECC 320 ©EnerCharge GmbH
INSTALLATION
Component Qty. Description
ECC 320 1 Charging station with integrated AC/DC power electronics and direct payment
Manual "Transport,
Installation and Start-up"
1 Manual for mechanical and electrical assembly of the ECC 320.
Operating Manual 1 Manual for commissioning and operating the ECC 320.
Maintenance Manual 1 Manual for maintenance of the ECC320.
Inspection Protocol 1 Inspection report for maintenance work performed
Installation Materials 1
Necessary installation materials:
Stainless-steel nutzs M12 8 pcs
Washers 8 pcs
5.6 Transport Regulations
Open the wooden box of the ECC 320 with the greatest
possible care and remove the side panels. Then lift the
charging station from the pallet and place it on a soft sur-
face. (See: „5.7 Lifting and Lowering the ECC 320“ on page 16).
Transport label and delivery note/invoice are on the outs-
ide of the wooden box.
Weight: approx. 400 kg

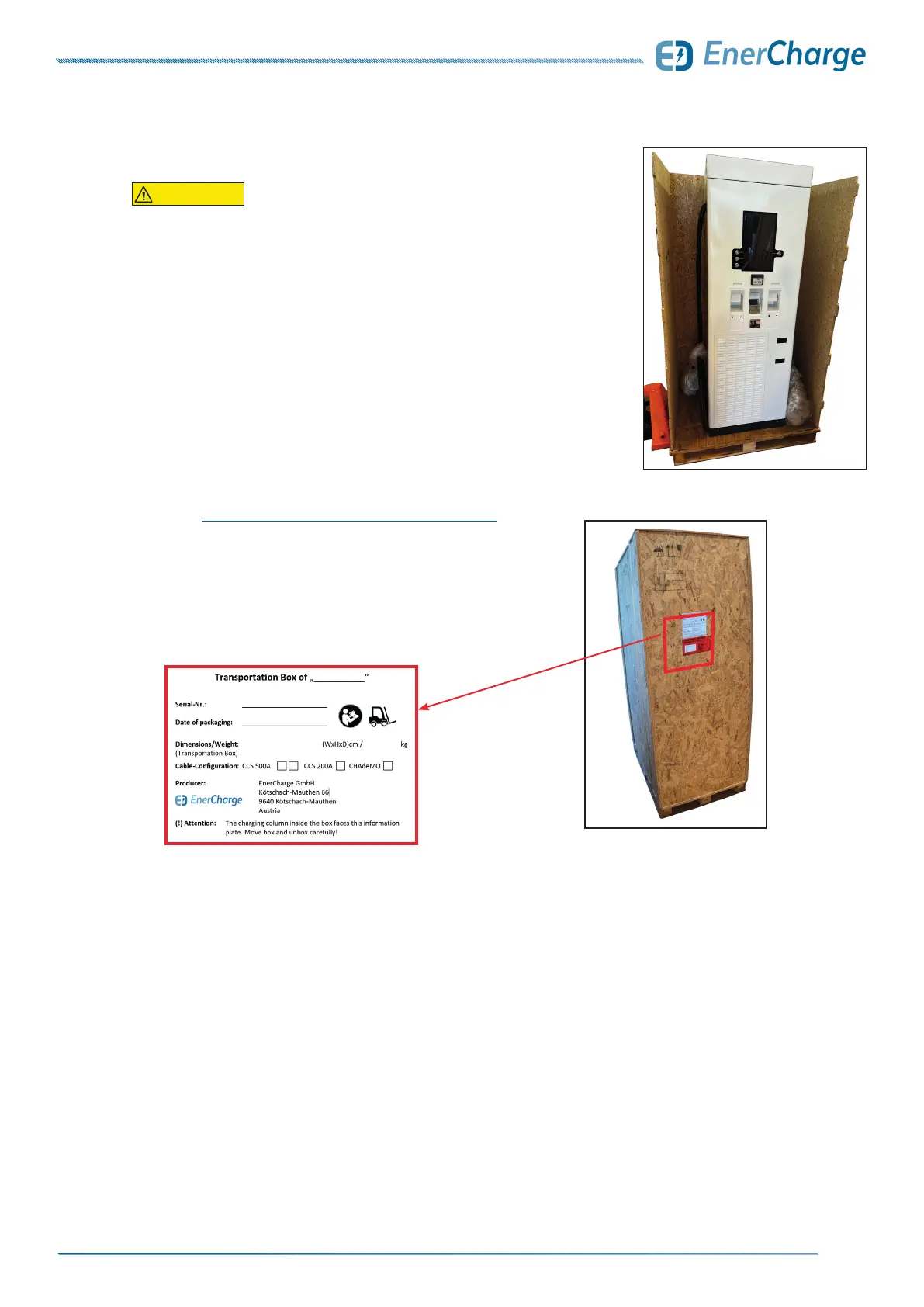

Fig. 6: Opened wooden box ECC 320
Fig. 7: Closed wooden box ECC 320
Fig. 8: Transport label ECC 320
CAUTION
Collisions and impacts during handling, transportation and unpacking of the
package may damage the charging station.
• Do not use sharp-edged tools for removal from the wooden box.
• Move the ECC 320 charging station with the greatest possible care.
• Do not tilt the wooden box during transport.
• Use a soft base for setting up the ECC 320.
• Do not tilt the equipment during transport - always transport
in an upright position.
• Protect the packaging from moisture and humidity.
• The transport packaging is suitable for any type of belt securing.
Damage due to improper handling
