INSTALLATION
Regarding the dimensioning of the foundation, the standard
EN 61851-23:2014 provides specications for the strength:
5.4 Foundation Strength Testing

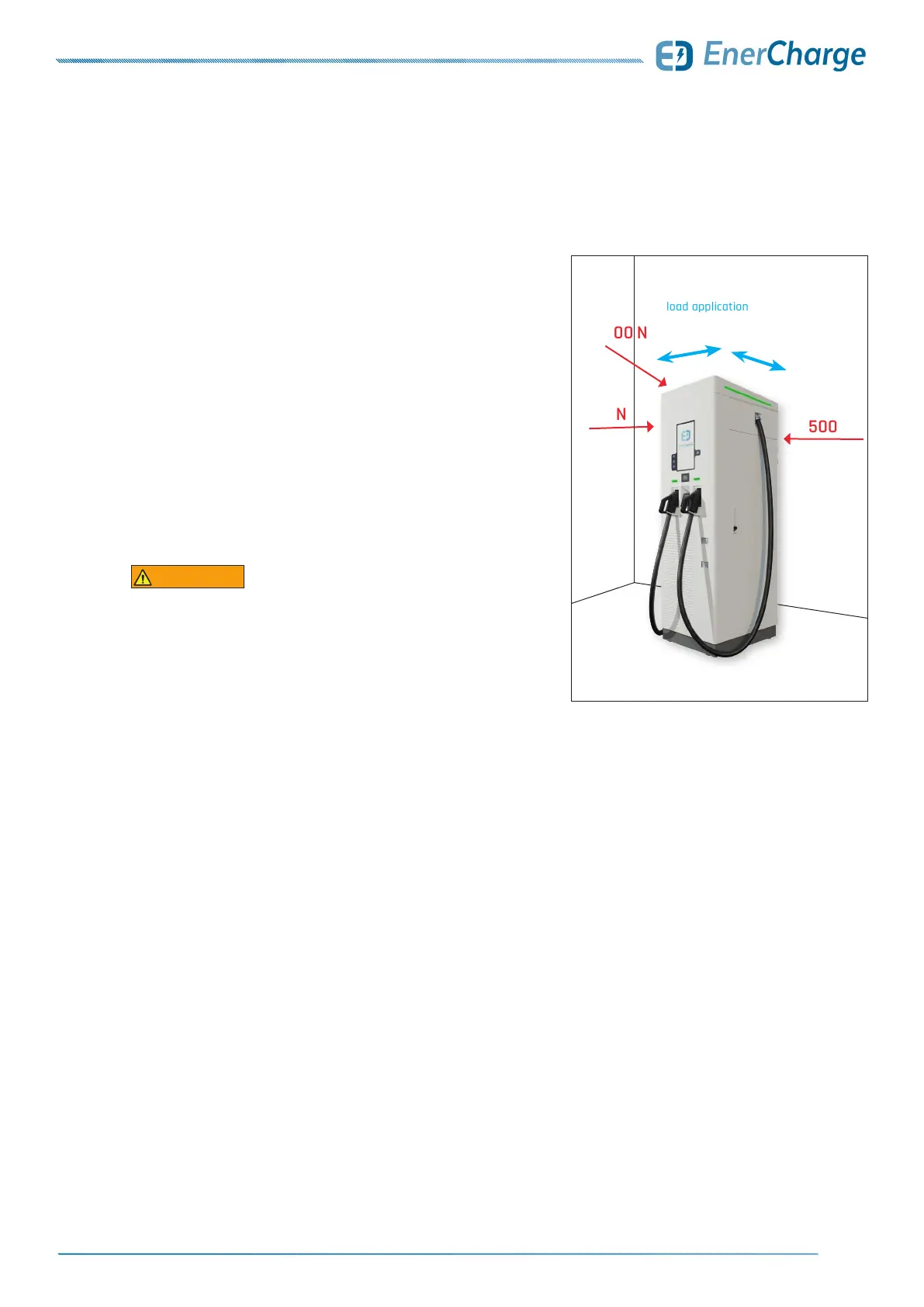

Fig. 5: Festigkeitsprüfung der Fundamente
> A force of 500 Newtons (about 51 kilograms) acts
on the top of the charging station for 5 minutes in a
horizontal direction.
> This is done either in each of the four directions or in the
horizontal direction, which is the least favorable.
> There shall be no deterioration or deformation on the
top of the charging station greater than:
• 50 mm during load application
• 10 mm after load application
When mounting the ECC 320, there is a risk of tipping if the lifting
device is inadequate or the charging station is attached incorrectly.
There is also a risk of tipping if the foundation is too weak. This can
result in crushing or fatal injuries to persons in the vicinity of the
charging station.
• Dimension the foundation according to the EN 61851-23:2014 standard.
• Dimension the lifting device and slings according to the maximum weight
of the ECC 320.
WARNING
Danger from tipping charging station
500 N
500 N
500 N
Deformation on the top:
max. 50 mm at 500 N
max. 10 mm after
load application
