Manual: Transport, Installation and Start-Up: DC CompactCharger ECC 320 ©EnerCharge GmbH
INITIALIZATION
8. Initialization
8.1 Charging Connectors

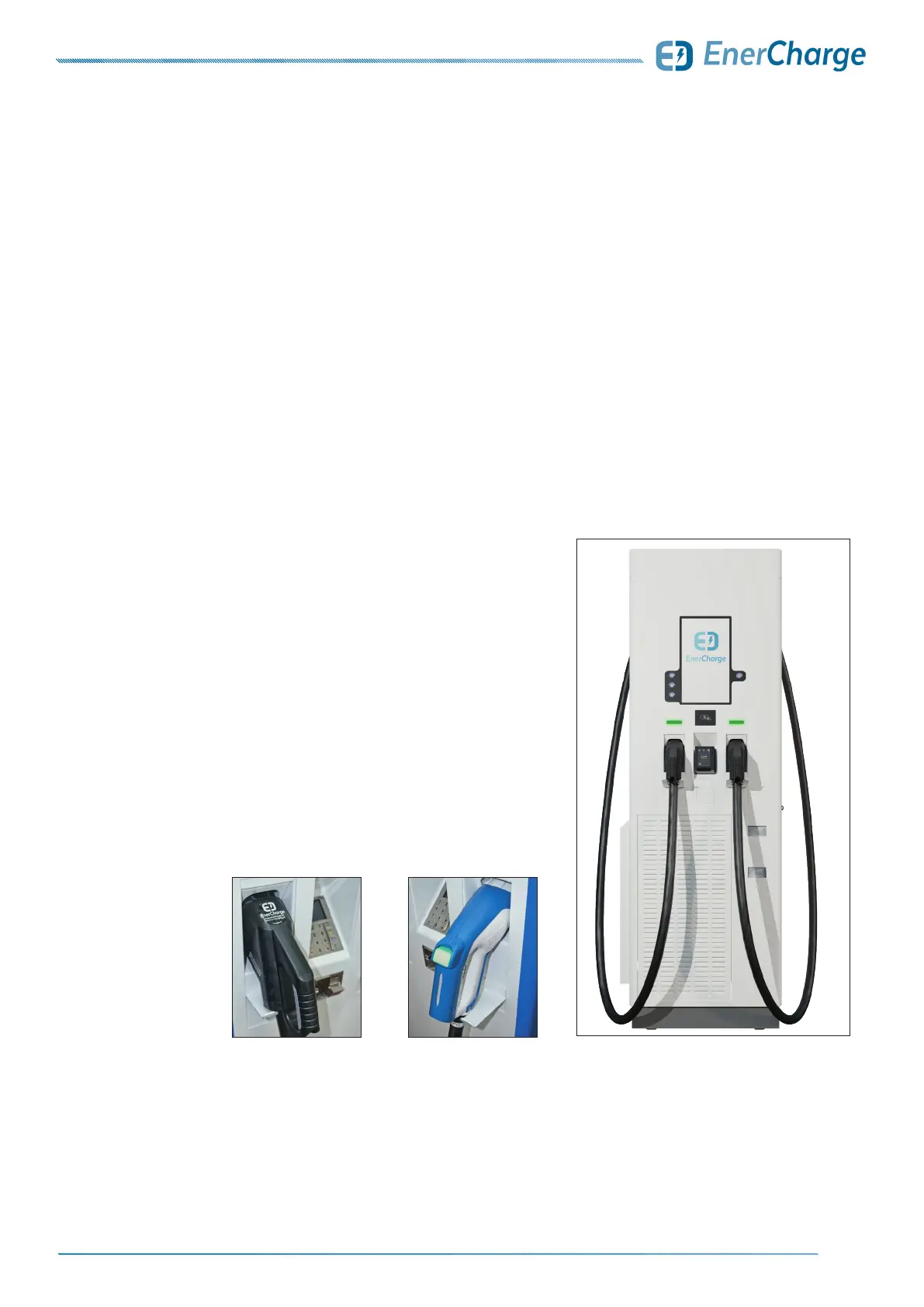

Fig. 44: CCS connector Fig. 46: CHAdeMO
connector
Fig. 45: ECC 320 front view
After mechanical and electrical installation, the ECC 320 is ready for operation. The ECC
320 has two fast charging systems with charging cables: CCS and CHAdeMO. The ECC 320
is available with 2x CCS (Dual) or 1x CCS and 1x CHAdeMO (Single).
> Combined Charging System (CCS) is an international
charging standard for electric vehicles. The connector va-
riants and charging procedures are standardized in part 3
of IEC 62196 (DIN EN 62196).
> CHAdeMO is a standard developed in Japan. The CHA-
deMO protocol is compatible with Japanese charging
connectors from the power company Tepco. It is not com-
patible with other charging connectors (e.g. IEC 62196
Type2 or CCS), as CHAdeMO charging communication
requires a CAN bus as well as separate signal lines.
> Position monitoring CCS and CHAdeMO:
The position of the charging connectors is monitored
by a sensor system.
• Before operating, make sure that the charging connectors
are correctly located in the holder.
