Manual: Transport, Installation and Start-Up: DC CompactCharger ECC 320 ©EnerCharge GmbH
INSTALLATION

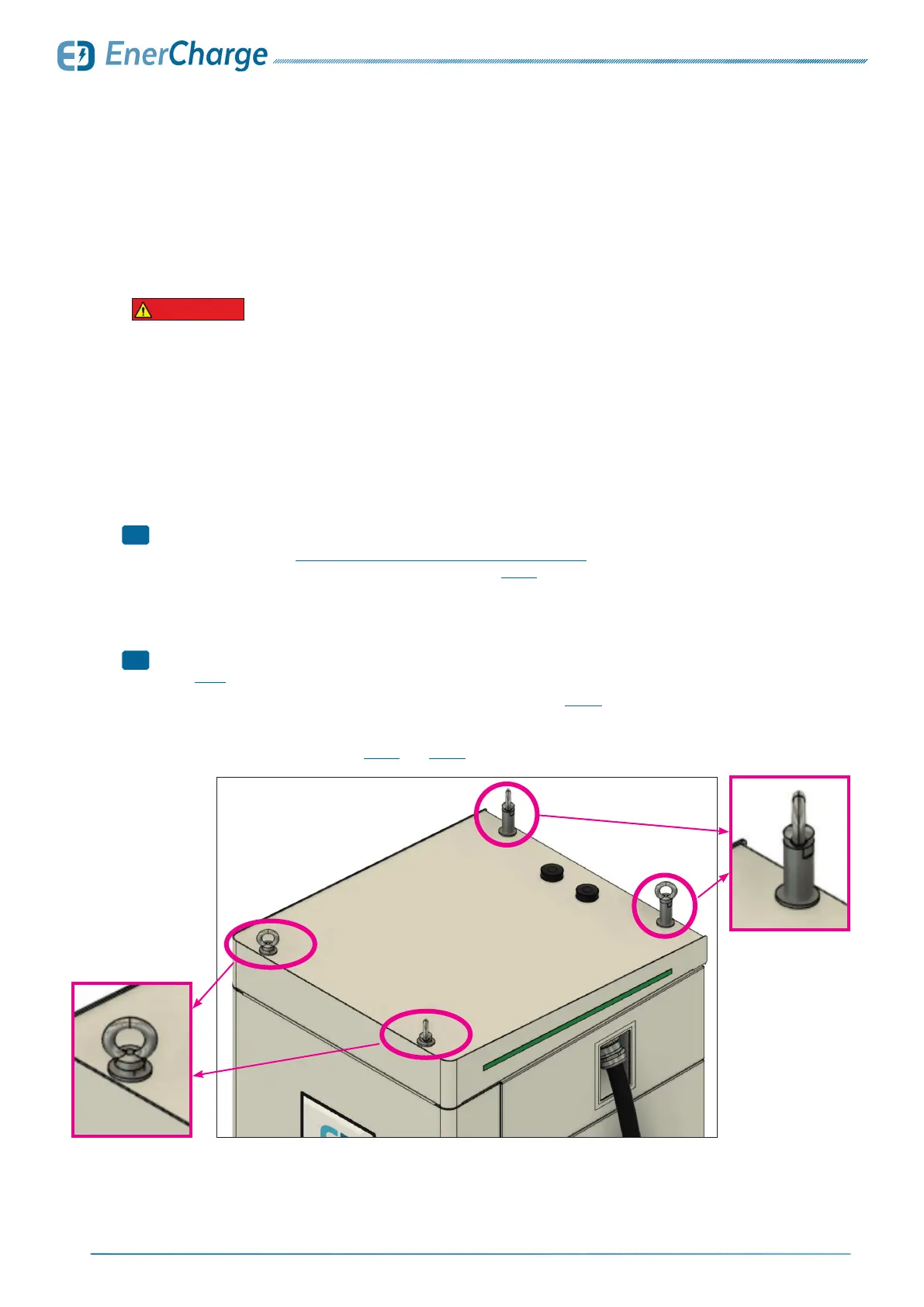

Fig. 9: eyebolts in head area of ECC 320
5.7 Lifting and Lowering the ECC 320
At a weight of approx. 400 kilograms, the ECC 320 must be lifted onto the
foundation using a lifting device. Eyebolts are mounted in the head area for
this purpose. Please note the following:
Improper use of eyebolts or use of unsuitable eyebolts can cause loads to swing out
and fall down. This can cause serious injuries or even death.
• The eyebolt must be fully screwed in with sucient thread depth!
• The eyebolt must lie at and fully on the contact surface!
• The working load limit (WLL) of the eyebolt must be observed!
• Before use, check the eyebolts for tight t and obvious damage (deformation,
corrosion)!
• Do not use deformed and damaged eyebolts!
• Side drafts must not be used!
DANGER
Danger to life due to unsuitable or improper use of eyebolts!
> Remove all 4 screws in the head area of the ECC 320.
• Service-Türe öffnen: „5.8 Opening and Closing the ECC 320“ on page 18.
• Loosen nut and remove sealing plug including seal: see Fig. 14.
• Save the sealing plug, gasket and nut for later use.
• Repeat the procedure for all 4 screw connections.
> Screw the eyebolts into the threaded holes provided in the head area of the ECC 320.
See Fig. 9.
• Make sure that the extension bolts are screwed in at the rear: see Fig. 10.
• Tighten extension bolts and eyebolts.
• Ensure that the eyebolts are aligned:
• Side-pull must not be used: see Fig. 12 and Fig. 13.
Fig. 10: long eyebolts
Fig. 11: short eyebolts
