INITIALIZATION
8.2 Charge Plug CCS
The CCS charging cable of the ECC 320
has the following contacts:
> Signal contact: Control Pilot »CP«
Signal contact: Proximity Pilot »PP«
• »CP« and »PP« ensure secure connection
and safe use.
> PE protective earth »PE«
> Live contact: »DC+«
Live contact: »DC-«
1
3
4
5
2
1
2
3
4
5

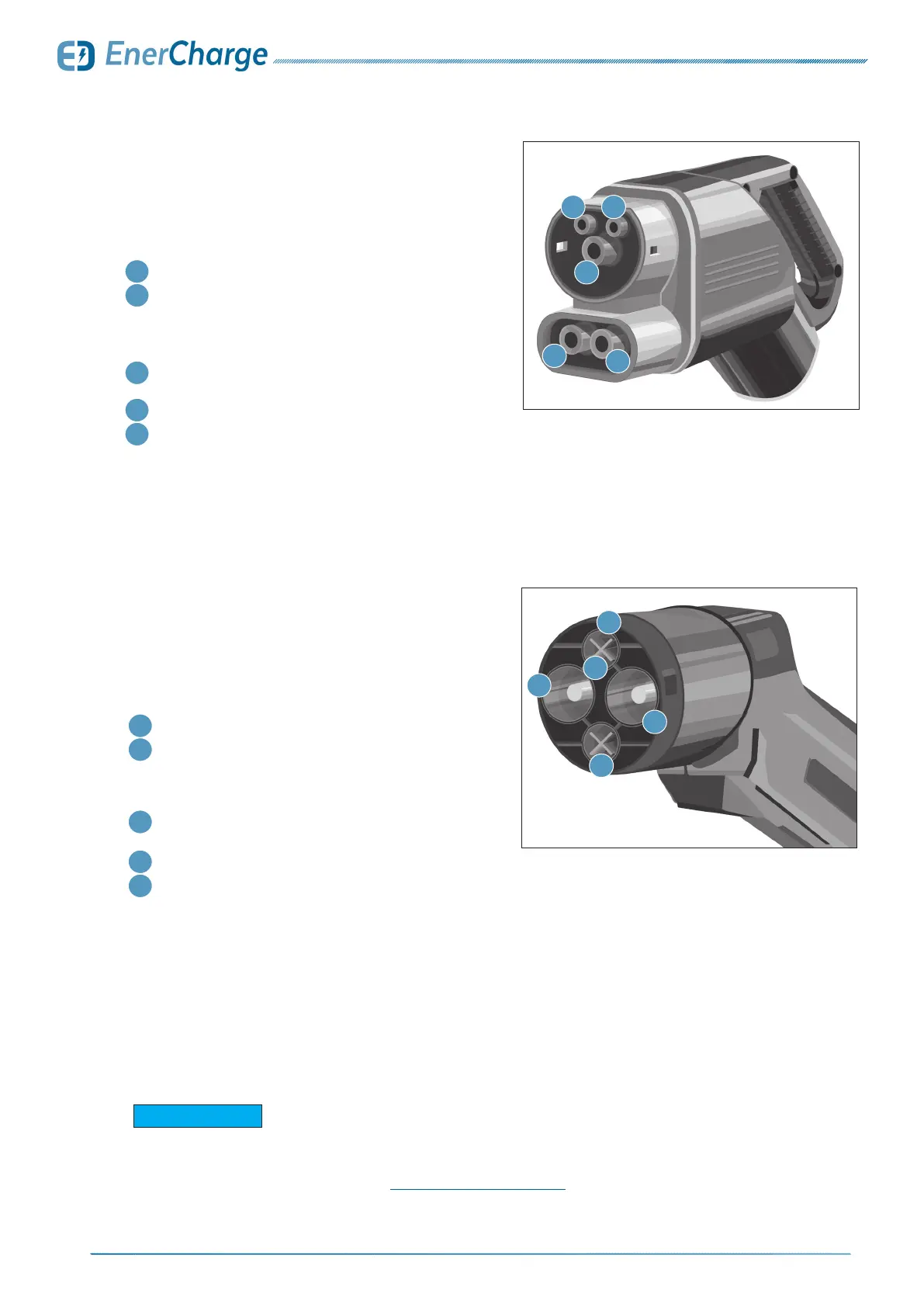

Fig. 47: CCS charging connector
8.3 Charge Plug CHAdeMO
8.4 Payment System (Direct Payment)
The CHAdeMO charging cable of the ECC
320 has the following contacts:
> Signal contacts: 3 pcs
Signal contacts: 4 pcs
• The signal contacts ensure secure
connection and safe use.
> PE protective earth »PE«
> Live contact: »DC+«
Live contact: »DC-«
2
3
4
5
1
2
3
4
5
1
Fig. 48: CHAdeMO charging connector
The activation and commissioning of the payment system is carried out by EnerCharge
by means of remote maintenance. Commissioning is possible if all necessary informa-
tion from the document "Conguration and parameterization" is available. In case of
open questions, contact the customer service: „9.8 Customer Service“ on page 50.
G INFORMATION
