Manual: Transport, Installation and Start-Up: DC CompactCharger ECC 320 ©EnerCharge GmbH
INSTALLATION
5.3 Foundation Dimensions
EnerCharge offers a prefabricated foundation with threaded bolts for mounting the ECC
320. The foundation must be installed by a specialist company.
CAUTION
The installation of the prefabricated foundation is the sole responsibility of the operator or
the company carrying out the installation on behalf of the operator. EnerCharge does not provide
any warranty on an improperly installed prefabricated foundation.
• Installation of the prefabricated foundation to be carried out by a specialist company.
• For a dimension drawing of the foundation see: „9.3 Dimension Drawing of Prefab Foundation“ on page 48.
Self-installed prefabricated foundation
Foundation Provisions:
> Horizontal, level and load-bearing ground is required for installation.
> The substrate must allow for the drainage of any water that may enter the base.
> Care should be taken to ensure adequate frost resistance.
> Lightning protection and grounding must be dimensioned by a specialist electrical company.
> All cables must be led out of the ground exactly in the middle of the concrete foundation and have an
excess length of approx. 1.5 m for further installation.
> Installation on asphalt is not permitted!

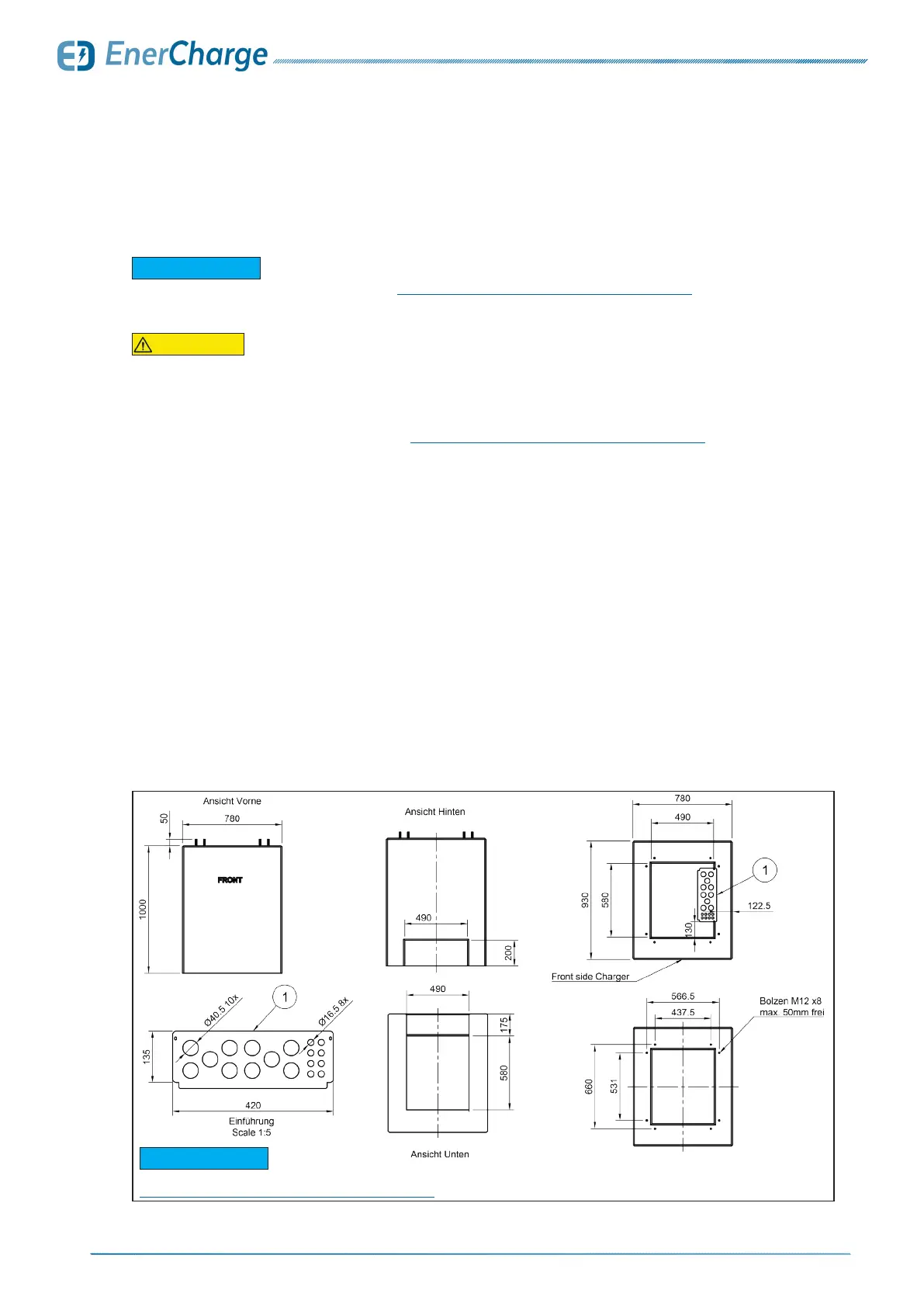

Fig. 4: Details of prefab foundation for ECC 320
For a dimension drawing of the foundation seel: „9.3 Dimension Drawing of Prefab Foundation“ on page 48.
G INFORMATION
For a larger view see
„9.3 Dimension Drawing of Prefab Foundation“ on page 48.
G INFORMATION
