Manual: Transport, Installation and Start-Up: DC CompactCharger ECC 320 ©EnerCharge GmbH
ELECTRICAL INSTALLATION ECC 320

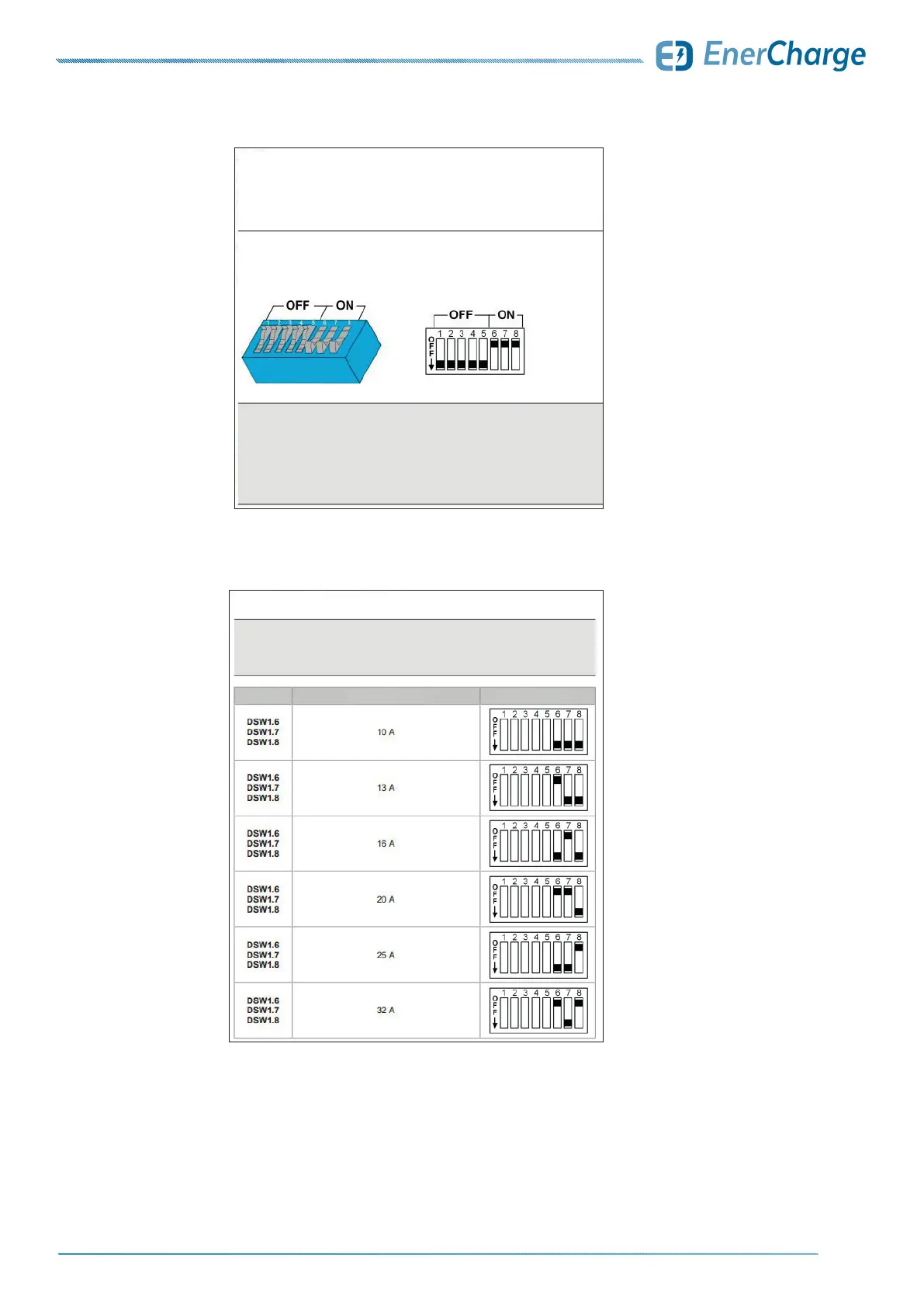

Fig. 37: instructions for DIP-Switches
Fig. 38: setting the max. current strength
Attention
Possible damage to the DIP switches!
The DIP switches are rockers and not sliders. The DIP switches must
be pressed and must never be pushed.
ON/OFF position of rockers
The illustration shows the position of the rockers for the ON and OFF
setting.
Information
Changes to the DIP switch settings only take effect after a
restart of the charging station!
For a restart, press the "Service button" until the rst signal tone
is heard (approx. 1 second) or briey disconnect the charging
station from the power supply via the circuit breaker.
Set current strength - DSW1.6 to DSW1.8
Information
The DIP switches can only be used to set a maximum value that is less
than or equal to the operating current according to the type label.
DIP-Switch Current Strength Illustration
