Installing the S4 Chassis
Enterasys S-Series S4 Chassis Hardware Installation Guide 3-5
2. Attach the mid-mount brackets to the front of the S4 chassis with the ten 10-32 pan head
screws supplied with the mid-mount bracket kit (five screws for each bracket). See Figure 3-2.

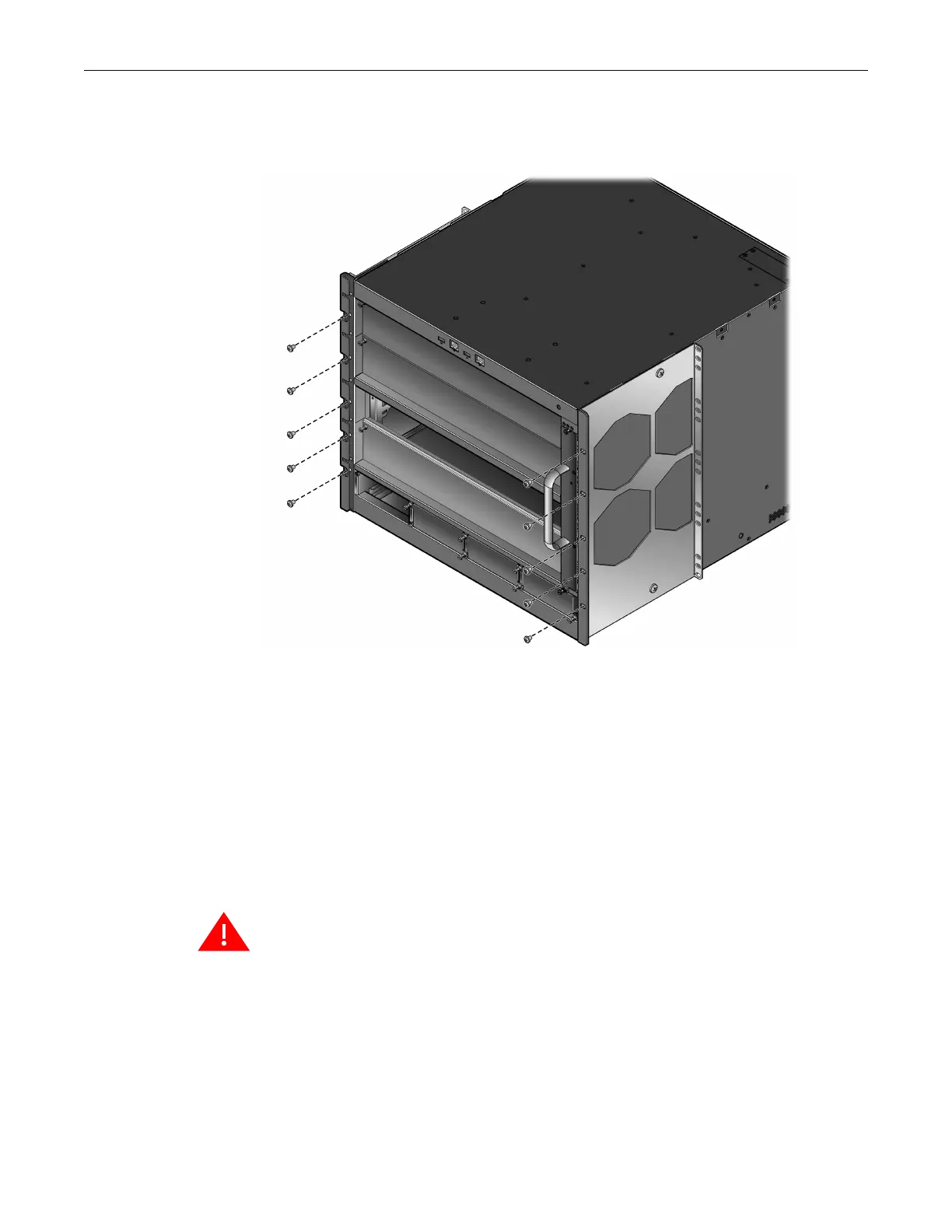

Figure 3-2 Attaching the Mid-Mount Brackets to the Front of the Chassis
Continue to “Mid-Mounting an S4 Chassis” on page 3-7 for the mid-mounting rack installation
procedure.
Rack Mounting the S4 Chassis
The S4 chassis can be mounted in two ways in a standard 48.26-centimeter (19-inch) equipment
rack:
• Front Mounting an S4 Chassis
• Mid-Mounting an S4 Chassis
Ensure that there is at least 60 centimeters (24 inches) of clearance in front of the rack for chassis
installation.
Warning: If the rack is not secured to the floor, it is recommended that you install the chassis in the
bottom half of the rack. This helps prevent the rack from being top heavy.
Advertencia: Si el rack no esta asegurado al piso, es recomendable que instales el chasis en la
parte de abajo del rack. Esto ayuda a prevenir que el rack este demasiado pesado en la parte
superior.
Warnhinweis: Falls das Rack nicht mit Schrauben am Boden gesichert wird, sollte das Chassis in
der unteren Hälfte des Racks installiert werden, um ein kippen des Racks zu vermeiden.
