Installing and Removing an S-POE-PS Power Supply
3-26 Chassis Setup
3. Close the power supply’s faceplate completely against the spring clip on the power supply.
4. If you are installing more than one power supply, remove the coverplates from the applicable
number of power supply
slots by unscrewing the captive screw that attaches each coverplate
to the PoE subsystem. See Figure 3-18.

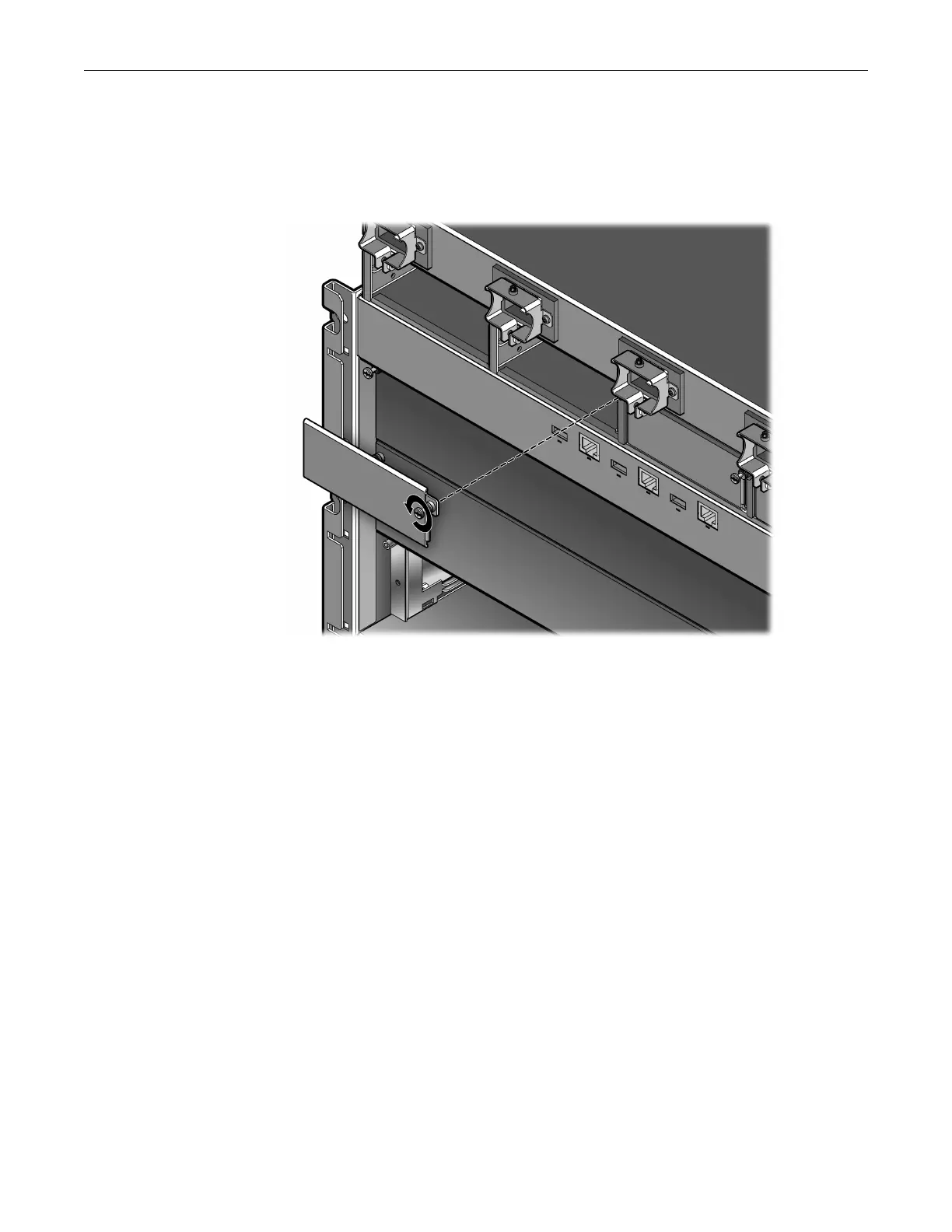

Figure 3-18 Removing Cover Plates from the PoE Subsystem Power Supply Slots
Keep the coverplates in the event you need to remove the power supplies. The PoE subsystem
ships without a cover on bay 1.
5. Repeat steps 1 through 3 for each additional power supply.
Removing an S-POE-PS Power Supply
To remove an S-POE-PS power supply:
1. Attach the anti-static wrist strap as described in “Attaching the Electrostatic Discharge Wrist
Strap” on page 3-12 before handling the power supply.
2. Unplug the power cord from the dedicated AC outlet.
3. Unplug the power cord from the AC power connector of the appropriate power supply.
4. Release the spring clip on the lower left of the power supply’s faceplate to unlock the ejection
handle.
5. Grasping the ejection handle, slide the power supply out of the PoE subsystem.
